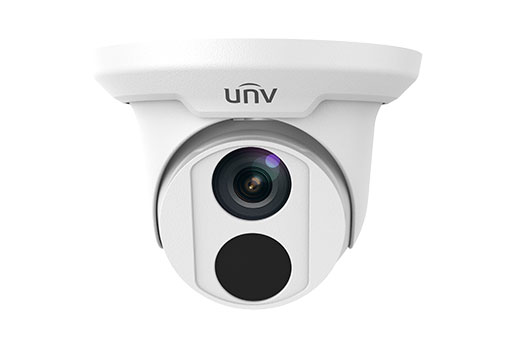

Uniview - IPC3618SR3-DPF28LM-F - 4K Fixed Dome Network Camera
Part number:
IPC3618SR3-DPF28LM-F
Price:
UNV 8MP WDR Network IR Fixed Turret Camera
Features:
Optics
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265,H.264,MJPEG
- Triple streams
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| IPC3618SR3-DPF28LM-F | ||||||||
| Camera | ||||||||
| Sensor | 1/3", 8.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F2.0 | |||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
| 2.8mm | 84 | 33.6 | 16.8 | 8.4 | ||||
| 4.0mm | 120 | 48 | 24 | 12 | ||||
| Angle of view(H) | 112.7° | |||||||
| Angle of View (V) | 60.1° | |||||||
| Angle of View (O) | 146.5° | |||||||
| Shutter | Auto/Manual, 1~1/100000 s | |||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~80° | Rotate:0°~360° | |||||
| Min. Illumination | Colour: 0.05 Lux (2.0, AGC ON) 0 Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >56dB | |||||||
| IR Range | Up to 30m (98 ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline Profile, Main Profile | |||||||
| Frame Rate | Main Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080):Max. 30 fps Sub Stream:720P (1280*720): Max. 20 fps Third Stream:4CIF (704*576): Max. 20 fps | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 2 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal/Vertical/Horizontal/180° | |||||||
| Dewarping | NA | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS | |||||||
| Compatible Integration | ONVIF (Profile S+ Profile T), API | |||||||
| Client | EZStation EZView EZLive | |||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||
| Interface | ||||||||
| Network | 10/100M Base-TX Ethernet | |||||||
| Certifications | ||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||||
| General | ||||||||
| Power | 12 V DC±25%, PoE (IEEE802.3 af) | |||||||
| Power consumption: Max 5W | ||||||||
| Dimensions (Ø x H) | Φ126 x 94mm (Ø5.0” x 3.7”) | |||||||
| Net Weight | 0.45kg (0.99lb) | |||||||
| Material | Metal + Plastic | |||||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | |||||||
| Strorage Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | |||||||
| Surge Protection | 2KV | |||||||
| Ingress Protection | IP67 | |||||||
