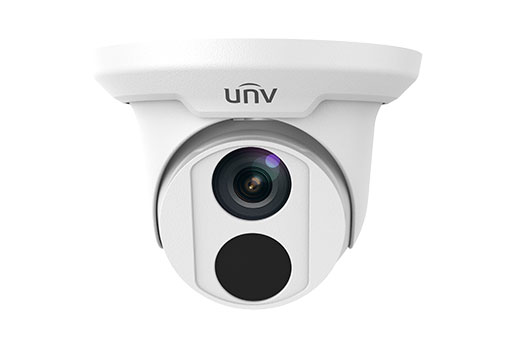

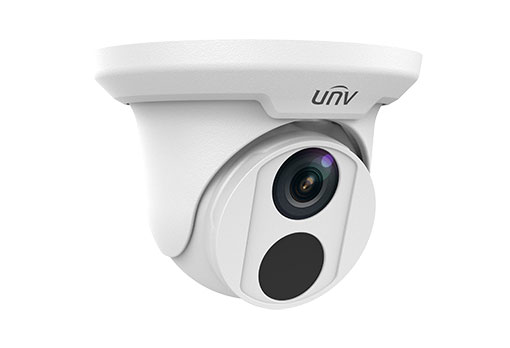

Uniview - IPC3618SR3-DPF28M - 8MP Network IR Fixed Dome Camera
Part number:
IPC3618SR3-DPF28M
Price:
UNV 8MP WDR Network IR Fixed Turret Camera
Features:
Optics
- Day/night functionality
- Smart IR , up to 30m (98ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Up to 120dB WDR (Wide Dynamic Range
Compression
- Ultra 265, H.264, MJPEG
- Triple streams
- 9:16 corridor format
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| IPC3618SR3-DPF28 | |||
| Camera | |||
| Sensor | 1/2.5", 8.0 megapixel, progressive scan, CMOS | ||
| Lens | 2.8mm@F2.0 | ||
| Angle of view (H) | 118.1° | ||
| Angle of view (V) | 64.0° | ||
| Angle of view (O) | 153.5° | ||
| DORI Distance | Lens (mm) | Detect (m) | |
| 2.8 | 50.4 | ||
| 4.0 | 72 | ||
| Adjustment Range | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||
| Minimum Illumination | Colour: 0.05Lux (F2.0, AGC ON) 0Lux with IR | ||
| Day/Night | IR-cut filter with auto switch (ICR) | ||
| Digital noise reduction | 2D/3D DNR | ||
| S/N | >52dB | ||
| IR Range | Up to 30m (98ft) IR range | ||
| Defog | Digital Defog | ||
| WDR | 120dB | ||
| Video | |||
| Video Compression | Ultra 265, H.264, MJPEG | ||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; Sub Stream: 1080P (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||
| HLC | Supported | ||
| BLC | Supported | ||
| 9:16 Corridor Mode | Supported | ||
| OSD | Up to 8 OSDs | ||
| Privacy Mask | Up to 8 areas | ||
| ROI | Up to 8 areas | ||
| Motion Detection | Up to 4 areas | ||
| Network | |||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | ||
| Compatible Integration | ONVIF (Profile S, Profile T), API | ||
| Interface | |||
| Network | 10M/100M Base-TX Ethernet | ||
| General | |||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||
| Power consumption: Max 5.5W | |||
| Dimensions (Ø x H) | Φ126 x 94mm (Ø5.0” x 3.7”) | ||
| Weight | 0.45kg (0.99lb) | ||
| Operating Conditions | -30℃ ~ 60℃ (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
| Ingress Protection | IP67 | ||
