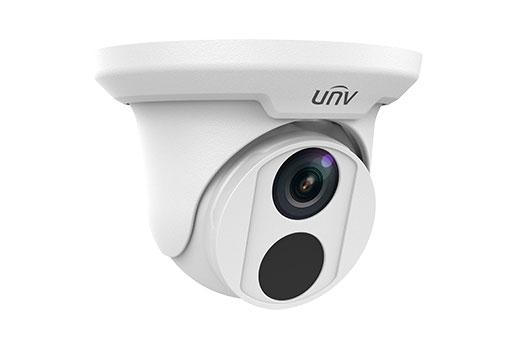

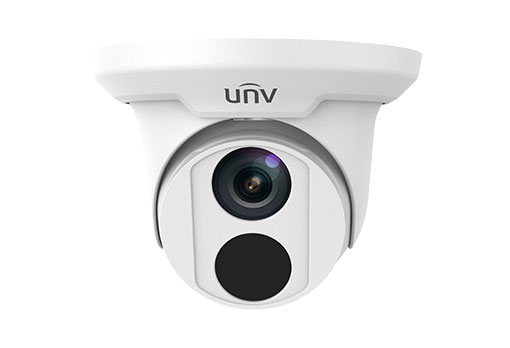

Uniview - IPC3618SR3-DPF40M - 8MP Network IR Fixed Dome Camera, 4.0mm
Part number:
IPC3618SR3-DPF40M
Price:
UNV 8MP WDR Network IR Fixed Turret Camera
Features:
Optics
- Day/night functionality
- Smart IR , up to 30m (98ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Up to 120dB WDR (Wide Dynamic Range
Compression
- Ultra 265, H.264, MJPEG
- Triple streams
- 9:16 corridor format
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| IPC3618SR3-DPF28M | IPC3618SR3-DPF40M | ||||||
| Camera | |||||||
| Sensor | 1/2.5", 8.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | |||||
| Viewing angle (H) | 118.1° | 91.6° | |||||
| View angle (V) | 64.0° | 47.2° | |||||
| Angle of view (O) | 153.5° | 112.7° | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | |||
| 2.8 | 50.4 | 20.2 | 10.1 | ||||
| 4.0 | 72 | 28.8 | 14.4 | ||||
| Adjustment Range | Pan: 0°~360° | Tilt: 0° ~ 90° | Rotation: 0°~360° | ||||
| Shutter | Auto/Manual, 1~1/100000s | ||||||
| Minimum Illumination | Colour: 0.05Lux (F2.0, AGC ON) 0Lux with IR | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >52dB | ||||||
| IR Range | Up to 30m (98ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; Sub Stream: 1080P (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | ||||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | ||||||
| Interface | |||||||
| Network | 10M/100M Base-TX Ethernet | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 5.5W | |||||||
| Dimensions (Ø x H) | Φ126 x 94mm (Ø5.0” x 3.7”) | ||||||
| Weight | 0.45kg (0.99lb) | ||||||
| Operating Conditions | -30℃ ~ 60℃ (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Ingress Protection | IP67 | ||||||
