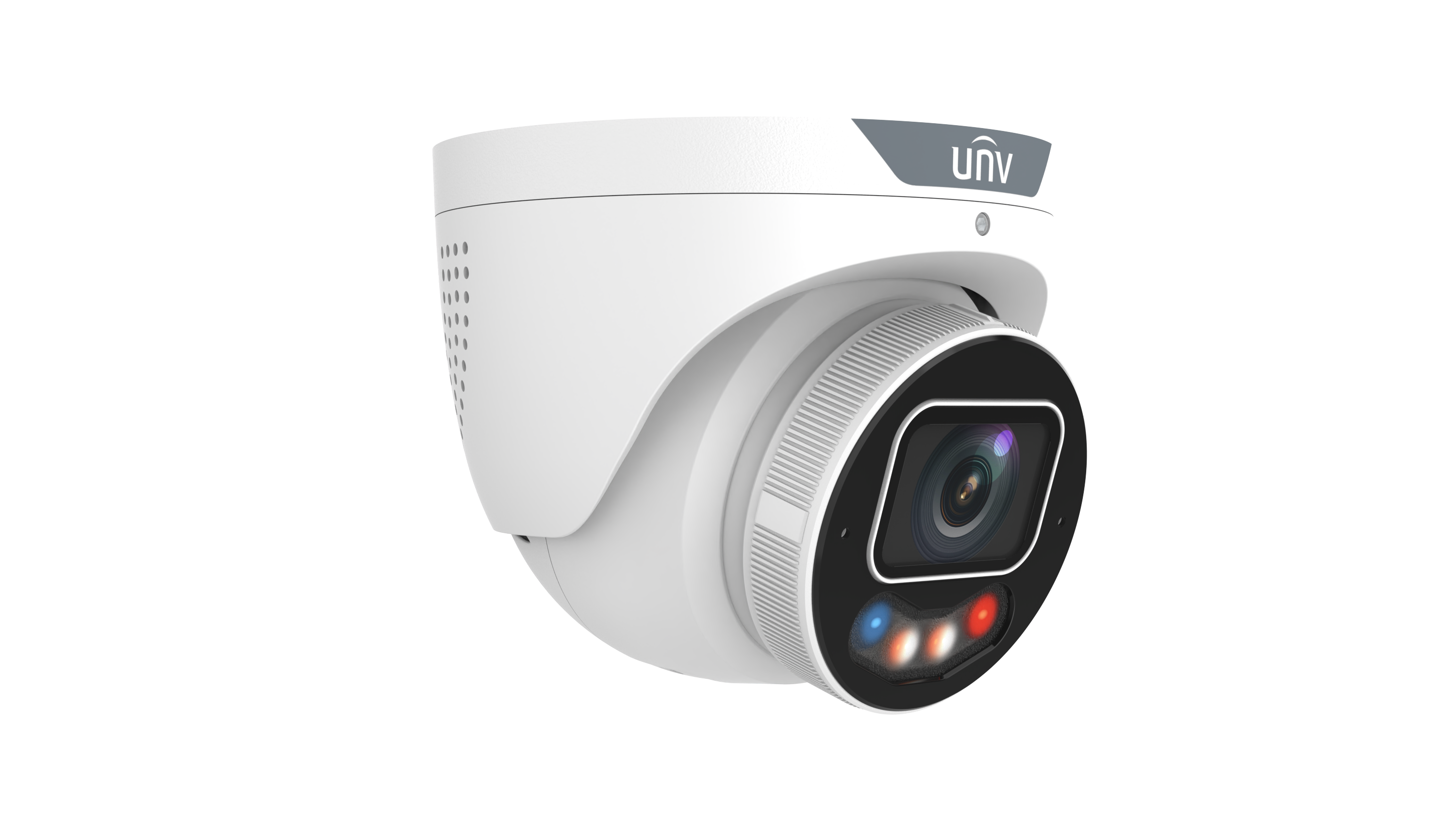

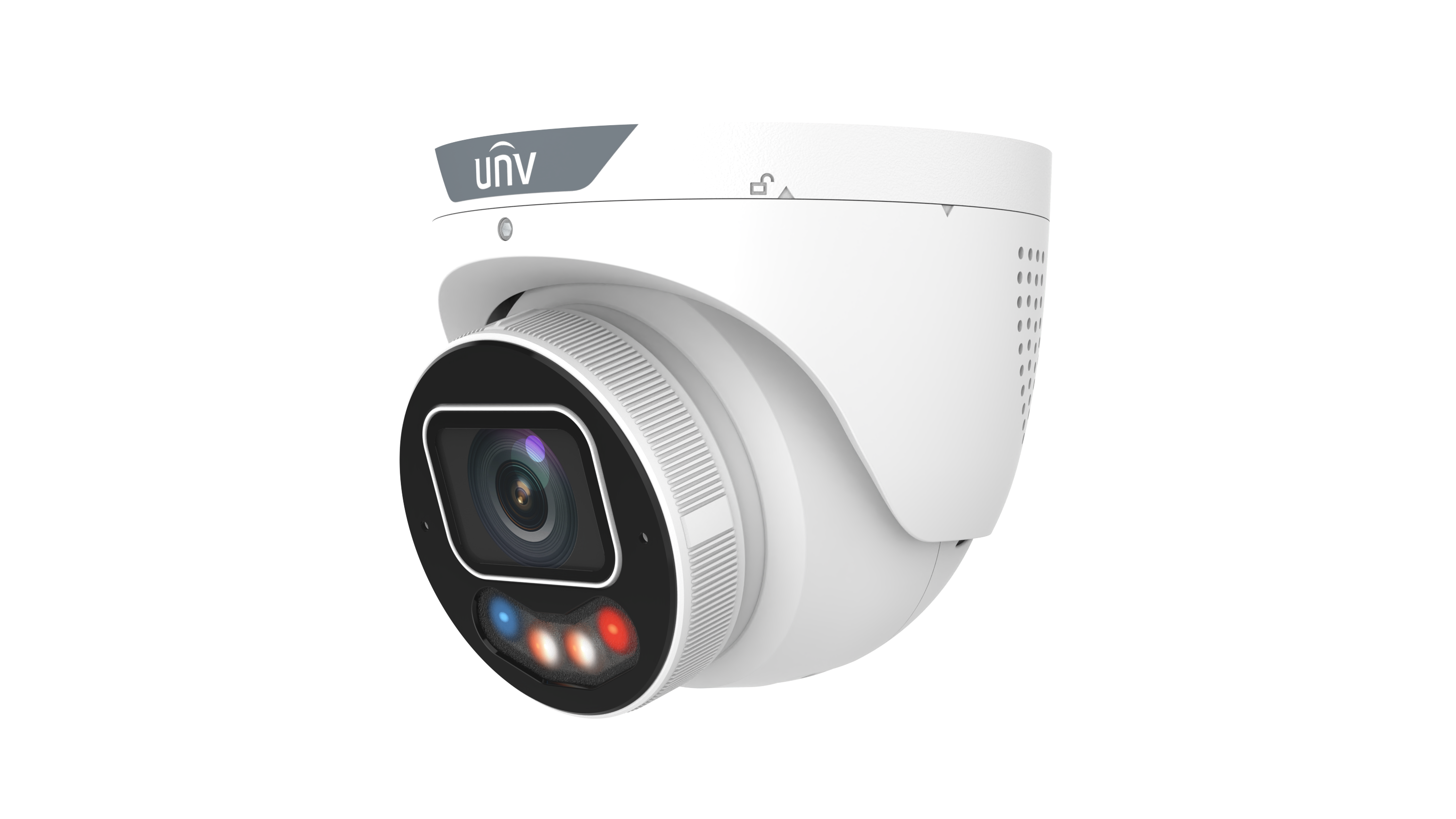

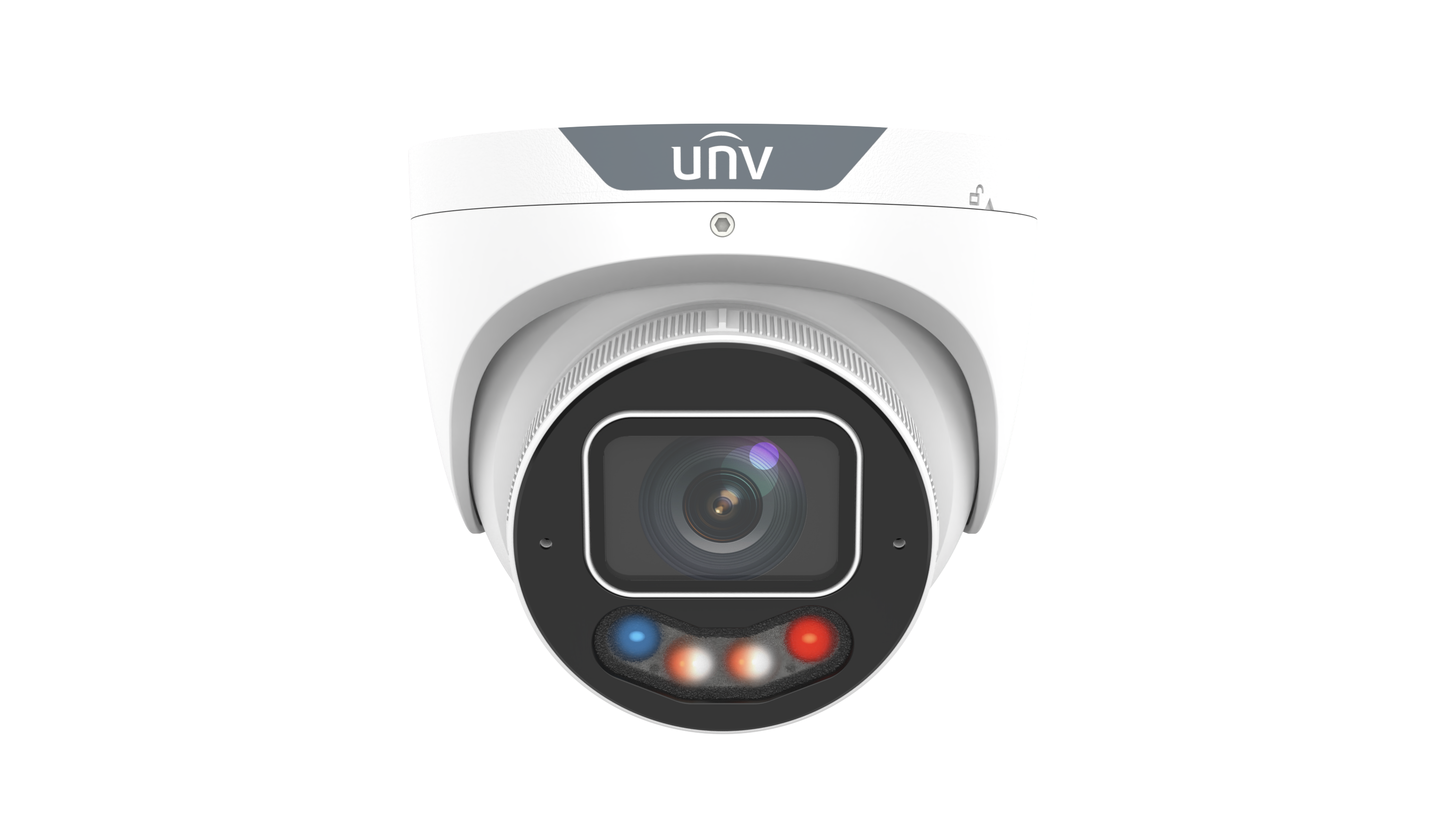

UNV - IPC3638SE-ADZKMC-WP-I1 - UNV 8MP Tri-guard 3.0 Turret, 2.8-12mm(Wise-ISP, F1.0, Red&Blue light, Alarm&Audio I/O)
• High quality image with 8 MP, 1/1.8" CMOS sensor
• Features an F1.2 large-aperture lens
• 8 MP (3840 × 2160)@30/25 (default) fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduces false alarm caused by leaves, birds and lights, accurately focusing on human, motor vehicle and non motor vehicle
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1, built-in mic and speaker
• Smart IR, up to 30 m (98.4 ft) IR distance
• White light, up to 30 m (98.4 ft) warm light distance
• MicroSD, up to 512 GB
• IK10 vandal resistant and IP67 protection
| Camera | |
|---|---|
| Max Resolution | 8 MP |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0005 Lux (F1.2, AGC ON) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N Ratio | > 56 dB |
| WDR | 130 dB |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| Iris Type / Iris | Fixed / F1.2 |
| Field of View (H / V / D) | 111.5° to 54.1° / 60.2° to 30.6° / 128.7° to 61.9° |
| Lens Type | Motorized |
| DORI Distances | |
| DORI Distance (Detect) | 63.0 m to 270.0 m (206.7 ft. to 885.8 ft) |
| DORI Distance (Observe) | 25.2 m to 108.0 m (82.7 ft. to 354.3 ft) |
| DORI Distance (Recognize) | 12.6 m to 54.0 m (41.3 ft. to 177.2 ft) |
| DORI Distance (Identify) | 6.3 m to 27.0 m (20.7 ft. to 88.6 ft) |
| Illuminator | |
| Supplemental Light | Dual light (IR + Warm Light) |
| Illumination Distance (IR / Warm Light) | 30 m (98.4 ft) |
| IR/Warm Light Control | Auto/Manual |
| Wavelength | 850 nm |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate-Main Stream | 8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code / ROI | Support |
| OSD / Privacy Mask | Up to 8 OSDs / Up to 4 areas |
| Video Stream | Triple streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR / ASM | Support |
| Flip Options | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC / BLC / Defog | Support / Support / Digital defog |
| Intelligent Features | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density monitoring |
| Attribute Collection | SIP with color retrieval |
| Events | |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| Security Functions | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate / Sampling Rate | 64 Kbps / 8 kHz |
| Two-way Audio / Suppression | Support |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Users / Client | Up to 32 users, 3 user levels / EZStation, APP |
| Web Browser Support | Plug-in required: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ Plug-in free: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p] 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Built-in Mic / Speaker | Built-in dual-mic / Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) NEMA 4X |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 7.0 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø129 mm × 110 mm (Ø5.1" × 4.3") (Ø × H) |
| Weight | 0.99 kg (2.18 lb) |
| Material | Metal |
| Working / Storage Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection / Reset Button | 4 KV / Support |
| Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
The IPC3638SE-ADZKMC-WP-I1 camera uses an 8 MP 1/1.8" CMOS sensor, providing a maximum resolution of 3840 × 2160 at up to 30 frames per second. The optics feature a motorized varifocal lens with an F1.2 large-aperture and a focal length range of 2.8 to 12 mm, offering a wide horizontal field of view from 111.5° to 54.1°. The camera utilizes a Dual Light illumination system, combining Smart IR and Warm Light, with an illumination distance of up to 30 meters for both. Video compression is supported via Ultra 265, H.265, H.264, and MJPEG, and the camera supports triple video streams.
Image processing features include 130 dB true Wide Dynamic Range, which processes high-contrast lighting to maintain detail in both bright and shadowed areas. 2D/3D Digital Noise Reduction is applied to clean up video artifacts. The ColorHunter with Wise-ISP technology ensures 24-hour full-color images, with an extremely low minimum color illumination of only 0.0005 Lux. The camera is part of the Tri-Guard Series and includes an advanced Intelligent Intrusion Prevention System, which classifies targets (human, motor vehicle, non-motor vehicle) to reduce false alarms, along with features like People Counting and Auto Scene Match. The integrated built-in dual-mic and speaker provide two-way audio and facilitate active deterrence, and it features dedicated Alarm I/O and Audio I/O ports. The camera has IP67 for dust and water, IK10 vandalism protection ratings, and is NEMA 4X compliant. The operational temperature range is specified from -40 °C to 60 °C (-40 °F to 140 °F). Power is supplied via DC 12 V or Power over Ethernet (PoE), with a maximum power consumption of 7.0 W.
