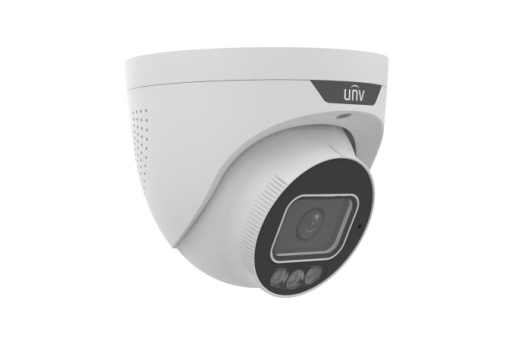

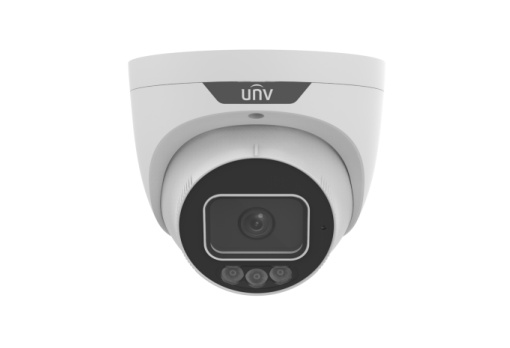

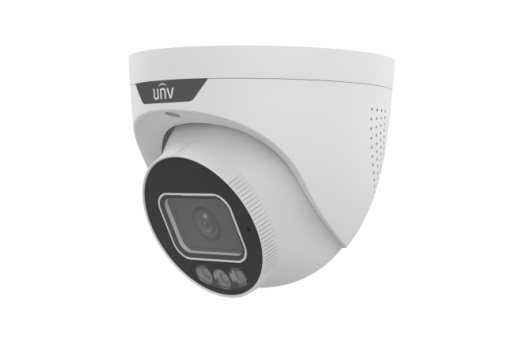

UNV - IPC3638SS-ADF28KMC-I1 - UNV 8MP Tri-guard 2.0 Turret(F1.0, Red&Blue light, Alarm&Audio interfaces)
Part number:
IPC3638SS-ADF28KMC-I1
Price:
8MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera (F1.0, Red & Blue light, Alarm & Audio interfaces)
Features:
- High quality image with 8MP, 1/2.8"CMOS sensor
- 8MP (3840*2160)@ 30/25(default)fps; 5MP (3072*1728)@ 30/25fps; 4MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- Smart intrusion prevention with Color retrieval
- Auto Scene Match (ASM)（Only WDR）
- 130dB true WDR technology enables clear image in strong light scene
- Support red & blue warning light
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker
- Smart IR, up to 30m (98.4 ft) IR distance
- Supports 512 G Micro SD card
- IP67 protection
| IPC3638SS-ADF28KMC-I1 | IPC3638SS-ADF40KMC-I1 | ||||||||
| Camera | |||||||||
| Sensor | 1/2.8", 8.0 megapixel, progressive scan, CMOS | ||||||||
| Minimum Illumination | Colour: 0.001 Lux (F1.0, AGC ON) 0 lux with IR on | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | ||||||
| WDR | 130dB | ||||||||
| S/N | >56dB | ||||||||
| Lens | |||||||||
| Lens | 2.8mm@F1.0 | 4.0mm@F1.0 | |||||||
| Iris | Fixed | ||||||||
| Field of View (H) | 106.5° | 92° | |||||||
| Field of View (V) | 57.9° | 51° | |||||||
| Field of View (D) | 132° | 106° | |||||||
| DORI | |||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 86.9 | 34.8 | 17.4 | 8.7 | |||||
| 4.0 | 124.1 | 49.7 | 24.8 | 12.4 | |||||
| Illuminator | |||||||||
| IR Range | Up to 30m (98.4 ft) | ||||||||
| Warm Light Range | Up to 30m (98.4 ft) | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||||
| Frame Rate | Main Stream: 8MP (3840×2160), Max 30fps; 5MP (3072×1728), Max 30fps; 4MP (2560×1440), Max 30fps; 1080P (1920×1080), Max 30fps; 720P (1280×720), Max 30fps; Sub Stream: 720P (1280×720), Max 30fps; D1 (720×576), Max 30fps; 640×360, Max 30fps; 2CIF (704×288), Max 30fps; CIF (352×288), Max 30fps; Third Stream: D1 (720×576), Max 30fps; 640×360, Max 30fps; 2CIF (704×288), Max 30fps; CIF (352×288), Max 30fps; | ||||||||
| Video Bit Rate | 128 Kbps ~ 16 Mbps | ||||||||
| U-code | Support | ||||||||
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
Quick Start Guide
1.1mb
