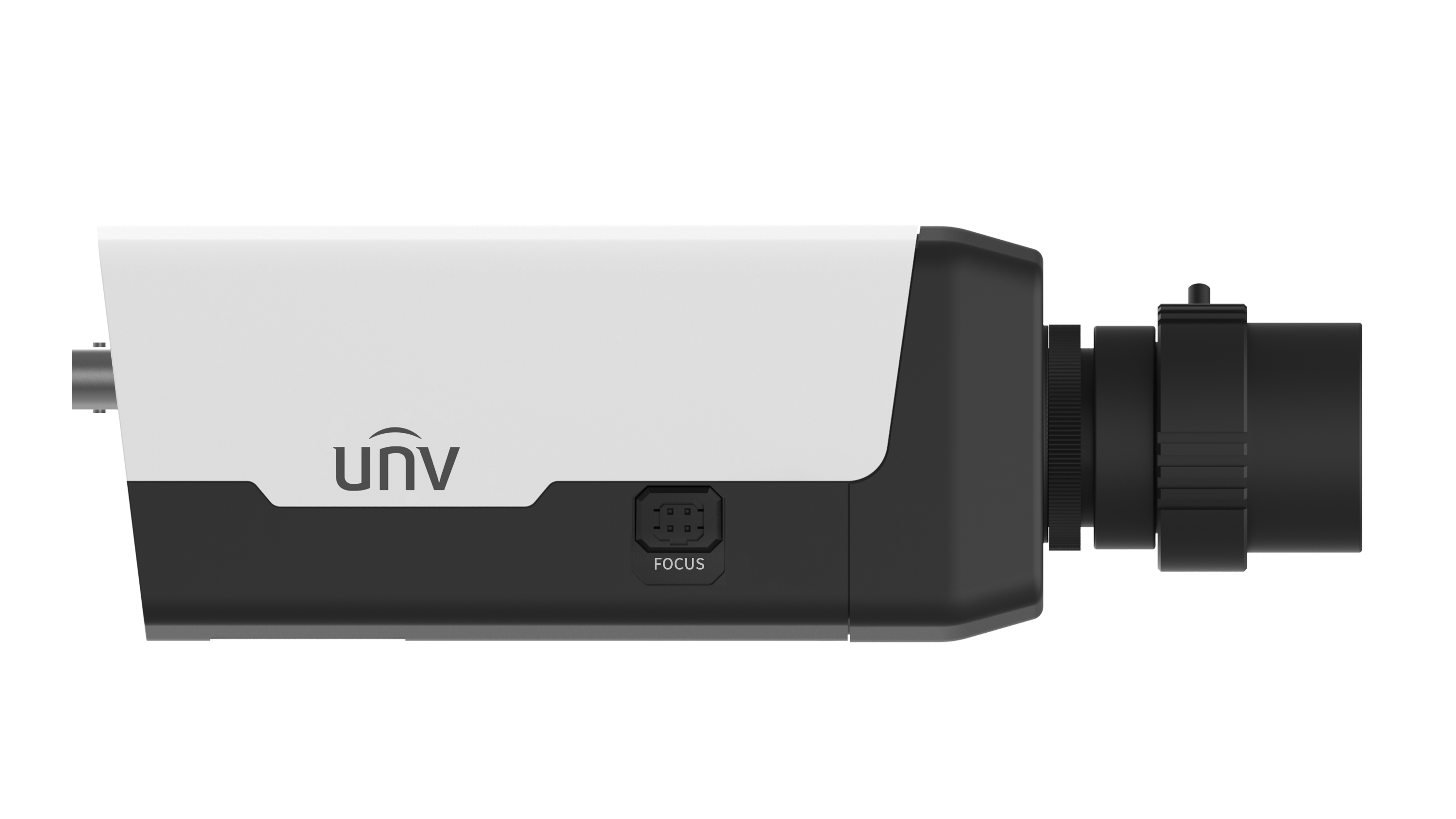

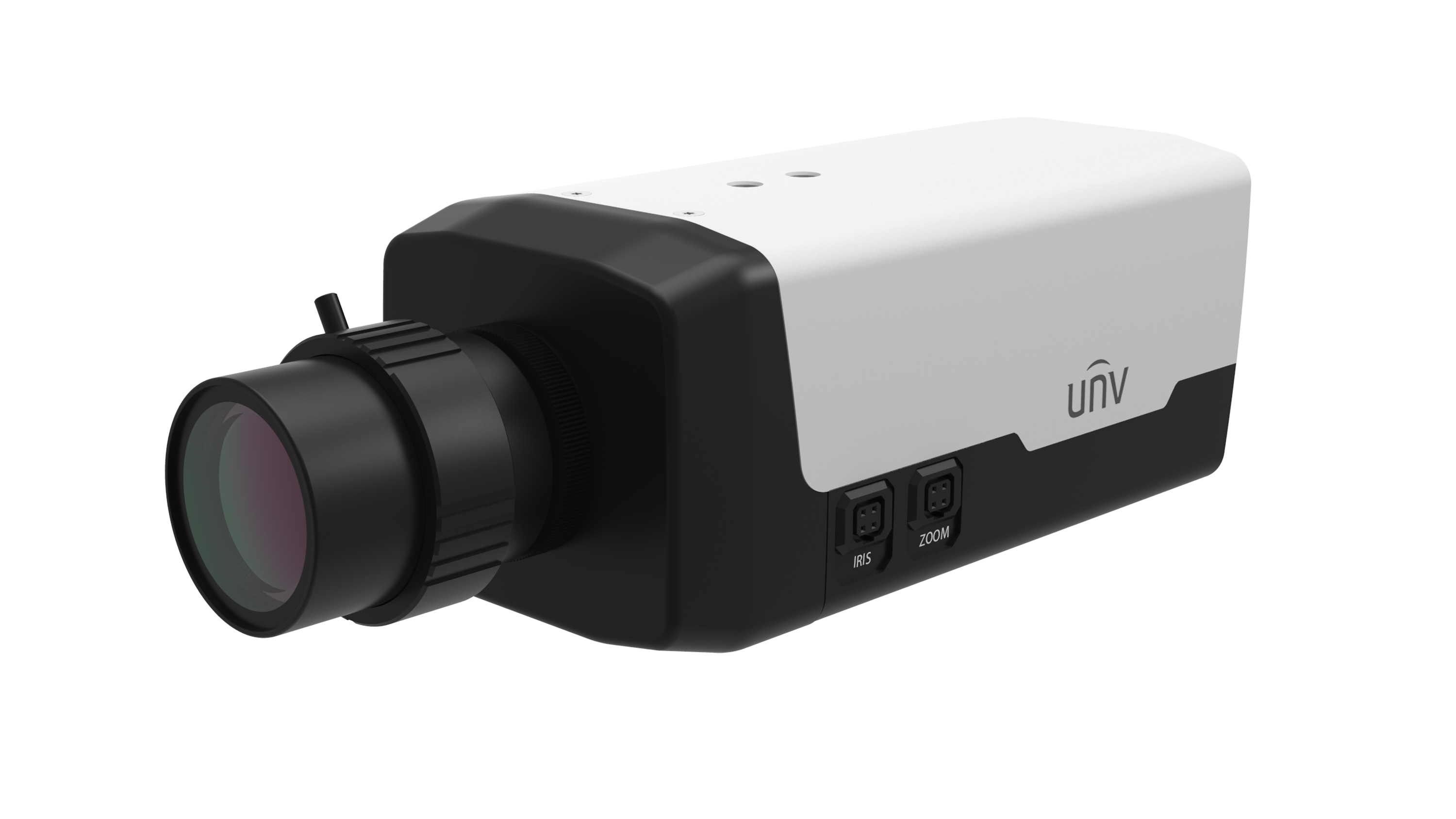

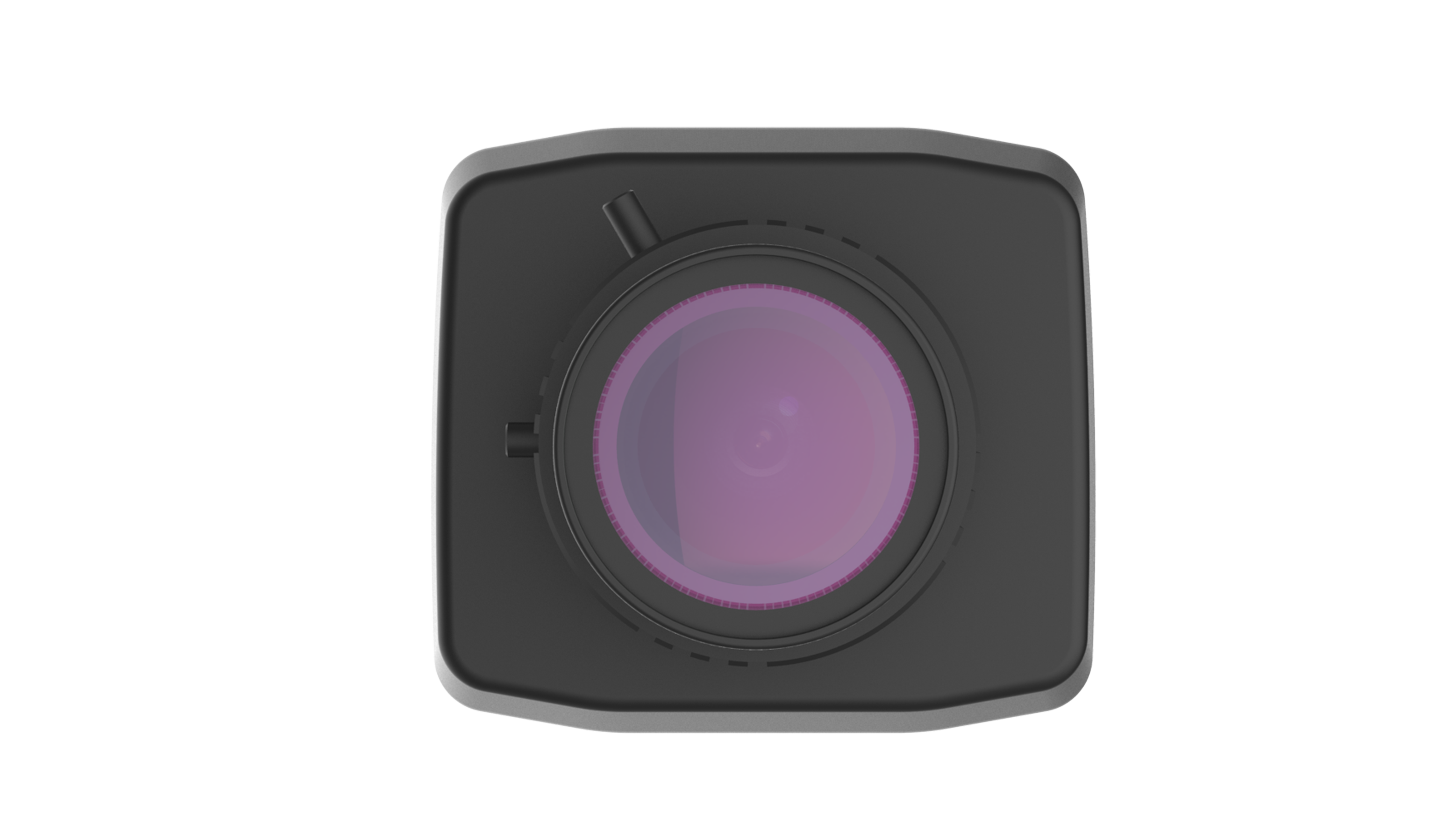

Uniview - IPC568EB-DGK-I0 - 8MP LightHunter IR Box Network Camera
8MP LightHunter IR Box Network Camera
Features:
• High quality image with 8 MP, 1/1.8" CMOS sensor
• 3840 × 2160@30 fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
• automatic selection of best snapshots, supports face detection masked area
• People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB optical WDR (Wide Dynamic Range)
• Support high-precision motorized lens for accurate zoom & focus
• DC 12 V or AC 24 V or PoE (IEEE 802.3af) power supply
• Audio 1 in and 1 out, alarm 2 in and 1 out
• Support optical interface & network interface serial connection, reduce the cost of wiring
| IPC568EB-DGK-I0 | |
| Camera | |
| Sensor | 1/1.8", 8.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Colour:0.002lux (F1.2, AGC ON) B/W: 0.0002Lux(F1.2, AGC ON) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >56dB |
| ABF | Support |
| Lens | |
| Lens Mount | C/CS |
| Iris | DC-Iris/P-Iris, DC 5V (4 Pins) |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 8MP (3840*2160), Max 30fps in Frame Rate Priority mode; Max 20fps in Smart Priority mode; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas per scene |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Flip | Normal/Flip Vertical/Flip Horizontal/180° |
| HLC | Support |
| BLC | Support |
| Defog | Optical Defog & Digital Defog |
| Events | |
| Basic Detection | Motion detection, Audio detection, Tampering alarm |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8KHz |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR,NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZLive EZView |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Interface | |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Zoom/focus | Support |
| Serial Port | 1 RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| Network | 1*100M/1000M SFP+ 1*RJ45 10M/100M/1000M Base-TX Ethernet |
| Video Output | 1 BNC |
| Certification | |
| EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
| Safety | IEC 62368-1 EN 62368-1 UL 62368-1 |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
| General | |
| Power | DC12V(±25%), AC24V(±25%), PoE(IEEE 802.3af) |
| Power consumption: Max 8.0W | |
| Power Interface | Two-core terminal block |
| Dimensions (L x W x H) | 152 x 71 x 65mm (6.0“ x 2.8“ x 2.6”) (excluding the lens) |
| Weight | 0.40kg (0.88lb) |
| Working Environment | -20°C ~ 60°C (-4°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40°C ~70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Reset button | Support |
| Protection | N/A |
