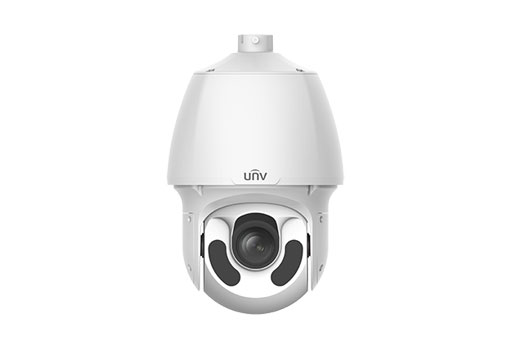

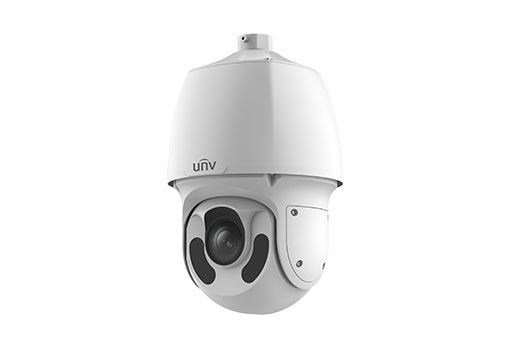

Uniview - IPC6222ER-X20-B - 2MP 20x IR Network PTZ Dome Camera
Uniview - IPC6222ER-X20-B - 2MP 20x IR Network PTZ Dome Camera
Uniview - IPC6222ER-X20-B - 2MP 20x IR Network PTZ Dome Camera
Uniview - IPC6222ER-X20-B - 2MP 20x IR Network PTZ Dome Camera Uniview - IPC6222ER-X20-B - 2MP 20x IR Network PTZ Dome Camera

Uniview - IPC6222ER-X20-B - 2MP 20x IR Network PTZ Dome Camera

Part number:
IPC6222ER-X20-B
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

UNV 2MP 20X Network IR PTZ Dome Camera (5 Inch, RJ45, H.265)



Features:



Optics

  • Accurate and fast focusing
  • The third-generation infrared technology
  • Smart IR, up to 150m (492ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 120dB true WDR



Compression

  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • Customized OSD



Network

  • ONVIF Conformance
  • Support P2P (ezcloud）



Structure

  • Special structure and window design to battle bad weather (especially in dusty weather)
  • Innovative snow-removing functionality
  • More effective heat dissipation system
  • Intelligent temperature control technology
  • 6KV surge protection designed for network interface
IPC6222ER-X20-B
Camera
Sensor1/2.8", 2.0 megapixel, progressive scan, CMOS
Lens5.2 ~ 104mm, AF automatic focusing and motorized zoom lens
Digital Zoom16
Optical Zoom20
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)
5.280.732.316.1
1041613.8645.5322.8
Angle of View (H)55.93° ~ 3.52°
Angle of View (V)33.25° ~ 1.98°
Angle of View (O)68.79° ~ 4.15°
ShutterAuto/Manual; shutter time: 1 ~ 1/100000s
Minimum IlluminationColour: 0.001Lux (F1.5, AGC ON)
0Lux with IR
IrisAuto; F1.5 ~ F3.0
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUP to 150m (492ft)
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 2MP (1920*1080), Max 60fps;
Sub Stream: 2MP (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fps
HLCSupported
BLCSupported
EISSupported
OSDUp to 8 OSDs
Privacy MaskUp to 24 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionLine crossing detection, Intrusion detection, Auto tracking, Master-slave Linkage
Exception Detection And StatisticsObject Moving, Object Left
RecognitionFace detection, Audio detection, Motion detection
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, TLS, SSL, QoS, RTMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
Pan & Tilt
Pan Range360° (endless)
Pan Speed0.1°/s ~ 240°/s
Preset speed: 300°/s
Tilt Range–15° ~ 90° (auto reverse)
Tilt Speed0.1° ~ 160°/s
Preset speed: 240°/s
Number of Presets1024
PatrolUp to 16 patrols, up to 32 presets per patrol
Home PositionSupported
Interface
Audio I/OAudio cable
Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O1/1
Network1 RJ45 10M/100M Base-TX Ethernet
General
PowerAC 24V±25%, DC 24V±25%AC 24V±25%, DC 24V±25% , PoE (PSE Required)
Power consumption: Max 44W
Dimensions (Ø x H)Ø227 x 359.4mm (Ø8.9” x 14.2”)
Weight5.28kg (11.6lb)
Working Environment-40°C ~ 65°C (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP66
