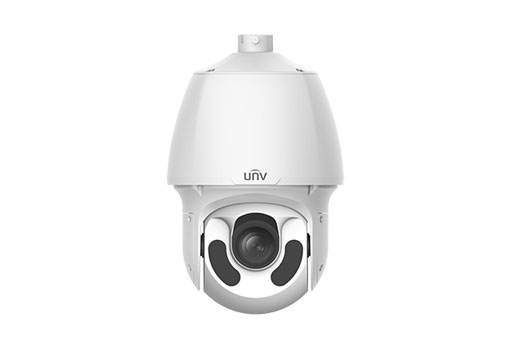

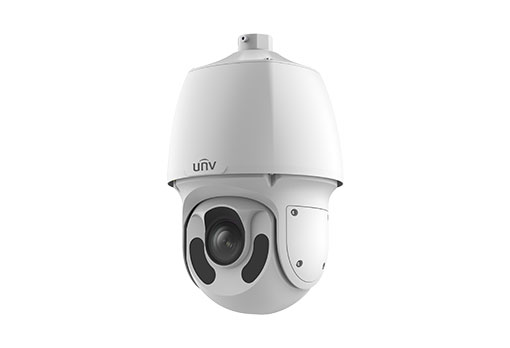

Uniview - IPC6222ER-X20P-B - 2MP 20x IR Network PTZ Dome Camera
Part number:
IPC6222ER-X20P-B
Price:
UNV 2MP 20X Network IR PTZ Dome Camera(5 Inch, RJ45, PoE, H.265)
Features:
Optics
- Accurate and fast focusing
- The third-generation infrared technology
- Smart IR, up to 150m (492ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 120dB true WDR
Compression
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- Customized OSD
Network
- ONVIF Conformance
Structure
- Special structure and window design to battle bad weather (especially in dusty weather)
- Innovative snow-removing functionality
- More effective heat dissipation system
- Intelligent temperature control technology
- 6KV surge protection designed for network interface
| IPC6222ER-X20-B | IPC6222ER-X20P-B | ||||
| Camera | |||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | ||||
| Lens | 5.2 ~ 104mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 20 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | |
| 5.2 | 80.7 | 32.3 | 16.1 | ||
| 104 | 1613.8 | 645.5 | 322.8 | ||
| Angle of View (H) | 55.93° ~ 3.52° | ||||
| Angle of View (V) | 33.25° ~ 1.98° | ||||
| Angle of View (O) | 68.79° ~ 4.15° | ||||
| Shutter | Auto/Manual; shutter time: 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR | ||||
| Iris | Auto? F1.5 ~ F3.0 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52dB | ||||
| IR Range | UP to 150m (492ft) | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| OUR | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 24 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Smart | |||||
| Behavior Detection | Line crossing detection, Intrusion detection, Auto tracking, Master-slave Linkage | ||||
| Exception Detection And Statistics | Object Moving, Object Left | ||||
| Recognition | Face detection, Audio detection, Motion detection | ||||
| Statistical Analysis | People counting | ||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, TLS, SSL, QoS, RTMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Pan & Tilt | |||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 0.1°/s ~ 240°/s | ||||
| Preset speed: 300°/s | |||||
| Tilt Range | –15° ~ 90° (auto reverse) | ||||
| Tilt Speed | 0.1° ~ 160°/s | ||||
| Preset speed: 240°/s | |||||
| Number of Presets | 1024 | ||||
| Patrol | Up to 16 patrols, up to 32 presets per patrol | ||||
| Home Position | Supported | ||||
| Interface | |||||
| Audio I/O | Audio cable | ||||
| Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 1/1 | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| General | |||||
| Power | AC 24V±25%, DC 24V±25% | AC 24V±25%, DC 24V±25% , PoE (PSE Required) | |||
| Power consumption: Max 44W | |||||
| Dimensions (Ø x H) | Ø227 x 359.4mm (Ø8.9” x 14.2”) | ||||
| Weight | 5.28kg (11.6lb) | ||||
| Working Environment | -40°C ~ 65°C (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing) | ||||
| Ingress Protection | IP66 | ||||
