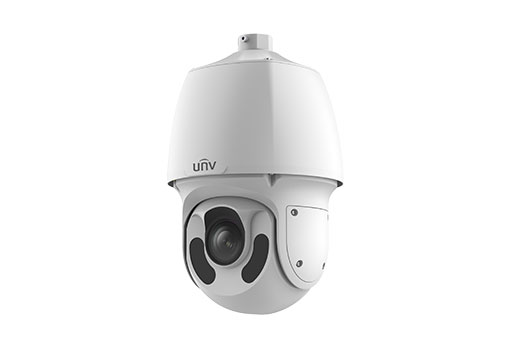

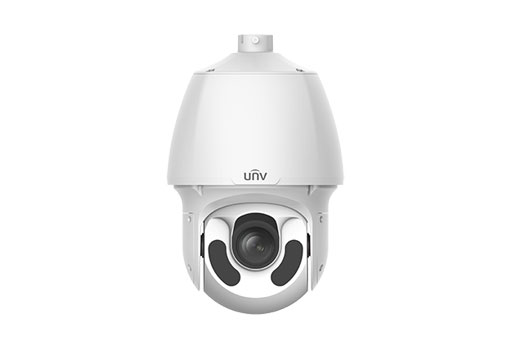

Uniview - IPC6222ER-X30-B - 2MP 30x IR Network PTZ Dome Camera
Part number:
IPC6222ER-X30-B
Price:
UNV 2MP 30X Network IR PTZ Dome Camera(5 Inch, RJ45, H.265)
Features:
Optics
- 30X Optical Zoom
- Accurate and fast focusing
- Smart IR, up to 150m (492ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 120dB true WDR
Compression
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- Customized OSD
Network
- ONVIF Conformance
Structure
- Innovative snow-removing functionality
- More effective heat dissipation system
- Intelligent temperature control technology
- 6KV surge protection designed for network interface
| IPC6222ER-X30-B | ||||
| Camera | ||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |||
| Lens | 4.5 ~ 135mm, AF automatic focusing and motorized zoom lens | |||
| Digital Zoom | 16 | |||
| Optical Zoom | 30 | |||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) |
| 4.5 | 69.8 | 27.9 | 14 | |
| 135 | 2094.8 | 837.9 | 419 | |
| Angle of View (H) | 56.7° ~ 2.28° | |||
| Angle of View (V) | 31.89° ~ 1.28° | |||
| Angle of View (O) | 65.05° ~ 2.61° | |||
| Shutter | Auto/Manual; shutter time: 1 ~ 1/100000s | |||
| Minimum Illumination | Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR | |||
| Iris | Autol; F1.5 ~ F4.0 | |||
| Day/Night | IR-cut filter with auto switch (ICR) | |||
| Digital noise reduction | 2D/3D DNR | |||
| S/N | >52dB | |||
| IR Range | Up to 150m (492ft) | |||
| Defog | Digital Defog | |||
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps |
| HLC | Supported |
| BLC | Supported |
| EIS | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 24 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Pan & Tilt | |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 240°/s |
| Preset speed: 300°/s | |
| Tilt Range | –15° ~ 90° (auto reverse) |
| Tilt Speed | 0.1° ~ 160°/s |
| Preset speed: 240°/s | |
| Number of Presets | 1024 |
| Patrol | Up to 16 patrols, up to 32 presets per patrol Note: The total number of patrols and patterns is 16. |
| Home Position | Supported |
| Interface | |
| Audio I/O | Audio cable |
| Input: impedance 35kΩ; amplitude 2V [p-p] | |
| Output: impedance 600Ω; amplitude 2V [p-p] | |
| Alarm I/O | 1/1 |
| Network | 1RJ45 10M/100M Base-TX Ethernet | |
| General | ||
| Power | AC 24V±25%, DC 24V±25% | AC 24V±25%, DC 24V±25%, PoE (PSE Required) |
| Power consumption: Max 44W | ||
| Dimensions (Ø x H) | Ø227 x 359.4mm (Ø8.9” x 14.2”) | |
| Weight | 5.28kg (11.6lb) | |
| Working Environment | -40°C ~ 65°C (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing) | |
| Ingress Protection | IP66 | |
