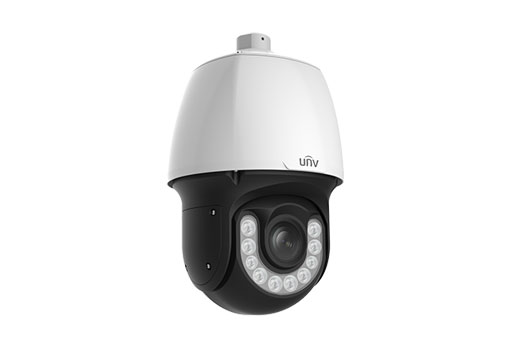

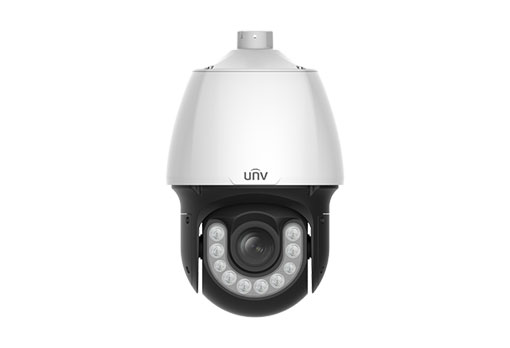

Uniview - IPC6252SFW-X22U - 2MP 22x Starlight Network Full Spectrum PTZ Dome Camera
Part number:
IPC6252SFW-X22U
Price:
UNV 22X 2MP Full Spectrum Starlight Dome Camera (22X, Full Spectrum, Starlight, Audio, Alarm )
Features:
Optics
- Starlight illumination
- Accurate and fast focusing
- Full spectrumlight with both white and infrared LED design
- Smart IR, up to 200 m (656 ft) IR distance
- Up to 120dB WDR(Wide Dynamic Range)
- While Light , up to 30m(98ft)
Compression
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- 1080P@60fps Supported
Network
- ONVIF Conformance
Structure
- Innovative snow-removing functionality
- More effective heat dissipation system
- Intelligent temperature control technology
- 6 KV surge protection designed for network interface
| IPC6252SFW-X22U | |||||
| Camera | |||||
| Sensor | 1/1.8", 2.0 megapixel, progressive scan, CMOS | ||||
| Lens | 6.5 ~ 143 mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 22 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 6.5 | 78 | 31.2 | 15.6 | 7.8 | |
| 143 | 1716 | 686.4 | 343.2 | 171.6 | |
| Angle of View (H) | 57.2° ~ 3.3° | ||||
| Angle of View (V) | 38.4° ~ 1.3° | ||||
| Angle of View (O) | 70.4° ~ 3.9° | ||||
| Shutter | Auto/Manual; shutter time: 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.0005Lux (F1.5, AGC ON) 0Lux with IR on | ||||
| Iris | Auto/Manual; F1.5 ~ F3.4 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52dB | ||||
| IR Range | Up to 200 m (656ft), While Light, up to 30m | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| EIS | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 24 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Smart | |||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Pan & Tilt | |||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 0.1°/s ~ 240°/s | ||||
| Preset speed: 300°/s | |||||
| Tilt Range | -15° ~ 90° (auto reverse) | ||||
| Tilt Speed | 0.1° ~ 160°/s | ||||
| Preset speed: 240°/s | |||||
| Number of Preset | 1024 | ||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||
| Home Position | Supported | ||||
| Drag-to-Zoom | Supported | ||||
| Interface | |||||
| Audio I/O | Audio cable | ||||
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
| 1 Output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 2/1 | ||||
| Serial Port | 1 RS485 | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] | ||||
| General | |||||
| Power | AC 24V (Default)±25%, DC 24V±25% | ||||
| Power consumption: 12 ~ 46W | |||||
| Dimensions (Ø x H) | Ø227 x 359.4mm (Ø8.9” x 14.2”) | ||||
| Weight | 5.4kg (11.9lb) | ||||
| Working Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
| Ingress Protection | IP66 | ||||
| Reset Button | Supported | ||||
