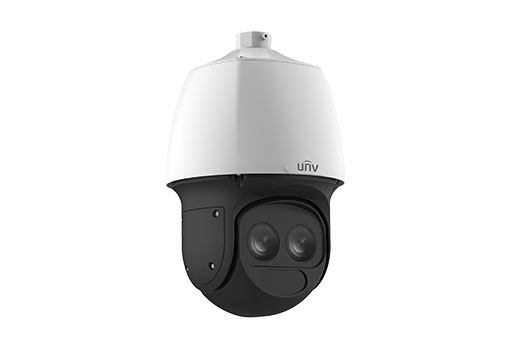

Uniview - IPC6252SL-X33UP - 2MP Starlight Laser IR Network PTZ Dome Camera
Part number:
IPC6252SL-X33UP
Price:
UNV 2MP 33X Starlight Laser IR Network PTZ Dome Camera (5'', RJ45, PoE, H.265)
Features:
Optics
- Starlight illumination
- 33x optical zoom
- Accurate and fast focusing
- IR anti-reflection window to increase the infrared transmittance
- Optical glass window with higher light transmittance
- Vari-focal laser: 500m (1640ft) distance, proportional to optical zoom of camera module
Compression
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- Customized OSD
Network
- ONVIF Conformance
Structure
- Special structure and window design to battle bad weather (especially in dusty weather)
- Innovative snow-removing functionality
- Intelligent temperature control technology
- More effective heat dissipation system
- 6KV surge protection designed for network interface
| IPC6252SL-X33UP | ||||
| Camera | ||||
| Sensor | 1/2.8", progressive scan, 2.0 megapixels, CMOS | |||
| Lens | 4.5~148.5mm, AF autofocus and motorized zoom lens | |||
| Digital Zoom | 16 | |||
| Optical Zoom | 33 | |||
| DORI Distance | Lens | Detection (m) | Observation (m) | Recognition (m) |
| 4,5 mm | 69,8 | 27,9 | 14 | |
| 148,5 mm | 2304,3 | 921,7 | 460,9 | |
| Angle of View (H) | 62,67°~2,82° | |||
| Angle of View (D) | 38,4°~1,3° | |||
| Angle of View (E) | 77,1°~3,3° | |||
| Shutter | Auto/Manual, shutter time: 1~1/100000s | |||
| Minimum Lighting | Color: 0.001 lux (F 1.6, AGC ON) 0 lux with IR | |||
| Iris | Auto/Manual, F1.6~F5.3 | |||
| Day/Night | Infrared cut filter (ICR) with automatic switch | |||
| Digital noise reduction | 2D/3D DNR | |||
| S/N | >52 dB | |||
| VF leisure | Up to 500 m (1640 ft) | |||
| Defogging | Digital Defog | |||
| WDR | 120 dB | |||
| Video | ||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||
| H.264 encoding profile | Basic Profile, Main Profile, High Profile | |||
| Frame Rate | Main Stream: 2MP(1920×1080): Max. 60fps; Sub Stream: 2MP(1920×1080): Max. 60fps; Third Stream: D1(720×576): Max. 60fps | |||
| High Light Compensation | Supported | |||
| Backlight Compensation | Supported | |||
| OUR | Supported | |||
| Screen Display | Up to 8 Screen Displays | |||
| Privacy Mask | Up to 24 areas | |||
| Region of Interest | Up to 8 areas | |||
| Motion Detection | Up to 4 areas | |||
| Clever | ||||
| Behavior Detection | Area violation, boundary violation, motion detection, Auto tracking | |||
| Area Violation | Entering and navigating a predefined virtual area | |||
| border violation | Crossing a predefined virtual line | |||
| motion detection | Moving in predefined virtual region | |||
| automatic monitoring | Monitoring the set target | |||
| Detection | Face detection, Voice detection | |||
| Intelligent Identification | Defocus, Scene change, Object Dropped, Object Moving | |||
| Statistical Analysis | Counting people | |||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||
| His | ||||
| Audio Compression | G.711 | |||
| Two-way audio | Supported | |||
| Suppression | Supported | |||
| Sampling Rate | 8KHZ | |||
| Storage | ||||
| Edge Depolama | Micro SD, up to 256GB | |||
| Network Storage | ANR | |||
| White | ||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, QoS | |||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||
| Pan and Tilt | ||||
| Conversion Range | 360° | |||
| Conversion Speed | 0,1°/s~240°/s | |||
| Preset Speed: 300°/s | ||||
| Tilt Range | -15°~+90° (auto inversion) | |||
| Tilt Speed | 0,1°/s~160°/s | |||
| Preset Speed: 240°/s | ||||
| Number of Presets | 1024 | |||
| Patrol | Preset patrol, route patrol, recorded patrol | |||
| Main Location | Supported | |||
| Interface | ||||
| Audio I/O | Audio interface | |||
| 1 Input: resistance 35 kΩ; width 2 V [pp] | ||||
| 1 Output: resistance 600 Ω; width 2 V [pp] | ||||
| Alarm I/O | 1/1 | |||
| White | 1 RJ45 10M/100M Base-TX adaptive Ethernet network interface | |||
| General | ||||
| Strength | 24V AC±25% (default power supply), 24V DC±25%, PoE (PSE Required) | |||
| Power consumption: 8W~47W | ||||
| Dimensions (PH × H) | Ø227 x 359.4mm (Ø8.9" x 14.2") | |||
| Weight | 5.6kg (12.3lb) | |||
| Working Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||
| Login Protection | IP66 | |||
| Impact Resistant | IK10 | |||
| Infrared | Built-in VF laser Infrared | |||
| Reset Button | Supported | |||
