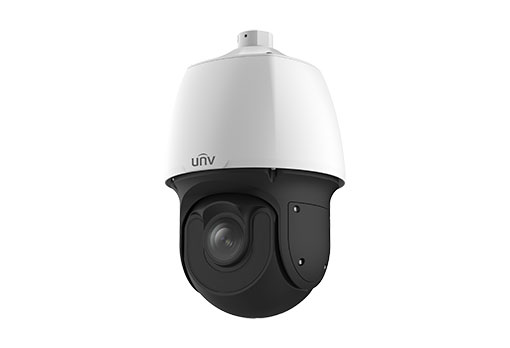

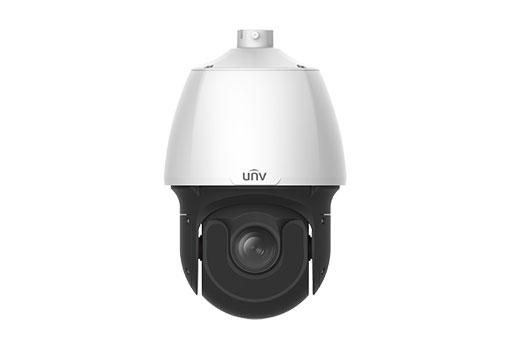

4MP 33x Lighthunter Network PTZ Dome Camera
Features:
Optics
- Starlight illumination
- 33x optical zoom
- Accurate and fast focusing
- Smart IR, up to 200m(656ft) IR distance
- EIS (Electronic Image Stabilization)
Compression
- 4 Megapixel image
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- Customized OSD
Network
- ONVIF Conformance
Structure
- Innovative snow-removing functionality
- Intelligent temperature control technology
- 6KV surge protection designed for network interface
- More effective heat dissipation system
- IP66
| IPC6254SR-X33DUP | |||||
| Camera | |||||
| Sensor | 1/2.8", 4.0 megapixel, progressive scan, CMOS | ||||
| Lens | 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 33 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.5 | 101.3(332.2ft) | 40.5(132.9ft) | 20.3(66.4ft) | 10.1(33.2ft) | |
| 148.5 | 3341.3(10962.1ft) | 1336.5(4384.8ft) | 668.3(2192.4ft) | 334.1(1096.2ft) | |
| Angle of View (H) | 52.4° ~ 2.2° | ||||
| Angle of View (V) | 40.5° ~ 1.7° | ||||
| Angle of View (O) | 64.4° ~ 2.6° | ||||
| Shutter | Auto/Manual; shutter time: 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.003 lux (F1.5,AGC ON) 0 lux with IR | ||||
| Iris | Auto/Manual; F1.5 ~ F4.0 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52dB | ||||
| IR range | Up to 200m(656ft) | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| EIS | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 24 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Smart | |||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Pan & Tilt | |||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 0.1°/s ~ 240°/s | ||||
| Preset speed:300°/s | |||||
| Tilt Range | -15° ~ 90° (auto reverse) | ||||
| Tilt Speed | 0.1° ~ 160°/s | ||||
| Preset speed: 240°/s | |||||
| Number of Presets | 1024 | ||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||
| Home Position | Supported | ||||
| Interface | |||||
| Audio I/O | Audio cable | ||||
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
| 1 Output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 2/1 | ||||
| Serial Port | 1 RS485 | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | N/A | ||||
| General | |||||
| Power | AC 24V±25%, DC 24V±25%, PoE (PSE required) | ||||
| Power consumption: 54W Max | |||||
| Dimensions (Ø x H) | Ø227 x 359.4mm (Ø8.9” x 14.1”) | ||||
| Weight | 5.6Kg（12.3lb） | ||||
| Working Environment | -40°C ~ 65°C (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing) | ||||
| Ingress Resistant | IP66 | ||||
| Reset Button | Supported | ||||
