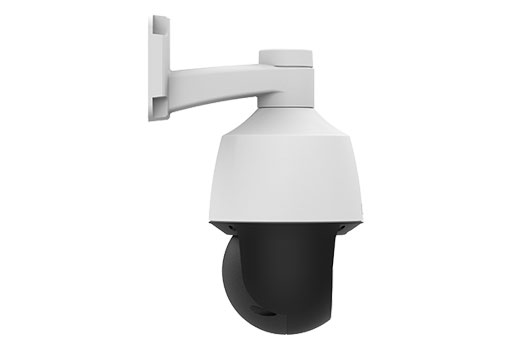

Uniview - IPC6312LR-AX4-VG - 2MP LightHunter IR Network PTZ Camera
Part number:
IPC6312LR-AX4-VG
Price:
2MP LightHunter IR Network PTZ Camera
Features:
- High quality image with 2MP, 1/2.7"CMOS sensor
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detectio
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Built-in Mic & Speaker
- Smart IR, Up to 50 m (164 ft) IR distance
- Micro SD, up to 256GB
- IP66 protection
- DC12V or PoE (IEEE 802.3af) power supply
| IPC6312LR-AX4-VG | ||||
| Camera | ||||
| Sensor | 1/2.7" progressive scan, 2.0 megapixel, CMOS | |||
| Min. Illumination | Colour: 0.002Lux (F1.6, AGC ON) 0Lux with IR on | |||
| Day/Night | IR-cut filter with auto switch (ICR) | |||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | |||
| WDR | 120dB | |||
| S/N | >52dB | |||
| Lens | ||||
| Lens type | 2.8~12mm, AF automatic focusing and motorized zoom lens | |||
| Optical Zoom | 4 | |||
| Iris | Fixed; F1.6 | |||
| Field of View (H) | 105.2° ~ 29.32° | |||
| Field of View (V) | 52.6° ~ 16.38° | |||
| Field of View (D) | 108.7° ~ 33.3° | |||
| DORI | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) |
| 2.8mm | 43.4 (142.4ft) | 17.4 (57.1ft) | 8.7 (28.5ft) | |
| 12mm | 186.2 (610.9ft) | 74.5 (244.4ft) | 37.2 (122.1ft) | |
| Illuminator | ||||
| IR Range | Up to 50m (164ft) | |||
| Wavelength | 850nm | |||
| IR On/Off Control | Auto/Manual | |||
| Video | ||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||
| Video Bit Rate | 128 Kbps ~ 16 Mbps | |||
| ROI | Support | |||
| Video Stream | Triple streams | |||
| OSD | Up to 8 OSDs | |||
| Privacy Mask | Up to 4 areas | |||
| Image | ||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||
| Digital Noise Reduction | 2D/3D DNR | |||
| Smart IR | Support | |||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||
| HLC | Support | |||
| BLC | Support | |||
| Defog | Digital Defog | |||
| Intelligent | ||||
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | |||
| People Counting | Support people flow counting and crowd density monitoring | |||
| Events | ||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm | |||
| Auto Tracking | Support | |||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||
| Audio | ||||
| Audio Compression | G.711U,G.711A | |||
| Two-way Audio | Support | |||
| Suppression | Support | |||
| Sampling Rate | 8 kHz | |||
| Storage | ||||
| Edge Storage | Micro SD, up to 256 GB | |||
| Network Storage | ANR,NAS(NFS) | |||
| Network | ||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL | |||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||
| Client | EZStation EZLive EZView | |||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||
| Pan & Tilt | ||||
| Pan Range | 0° ~ 345° | |||
| Pan Speed | 0.1°/s ~ 50°/s | |||
| Preset speed: 50°/s | ||||
| Tilt Range | -10° ~ 110° | |||
| Tilt Speed | 0.1°/s ~ 40°/s | |||
| Preset speed: 40°/s | ||||
| Number of Presets | 256 | |||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||
| Patrol Stay Time | 120s~1800s | |||
| Home Position | Support | |||
| Interface | ||||
| Built-in Mic | Support | |||
| Built-in Speaker | Support | |||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||
| Alarm Light | Support | |||
| Certification | ||||
| EMC | CE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||
| General | ||||
| Power | DC12V(±25%), PoE (IEEE 802.3af) | |||
| Power consumption: MAX 15W | ||||
| Power Interface | Ø 5.5mm coaxial power plug | |||
| Dimensions (Ø x H) | Φ133mm*248mm (Φ5.2”x 9.8”) | |||
| Weight | 0.84 kg (1.85lb) | |||
| Working Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) | |||
| Storage Environment | -40°C ~ 70°C (-40°F to 158°F), Humidity:≤95% RH(non-condensing) | |||
| Surge Protection | 2KV | |||
| Reset Button | Support | |||
