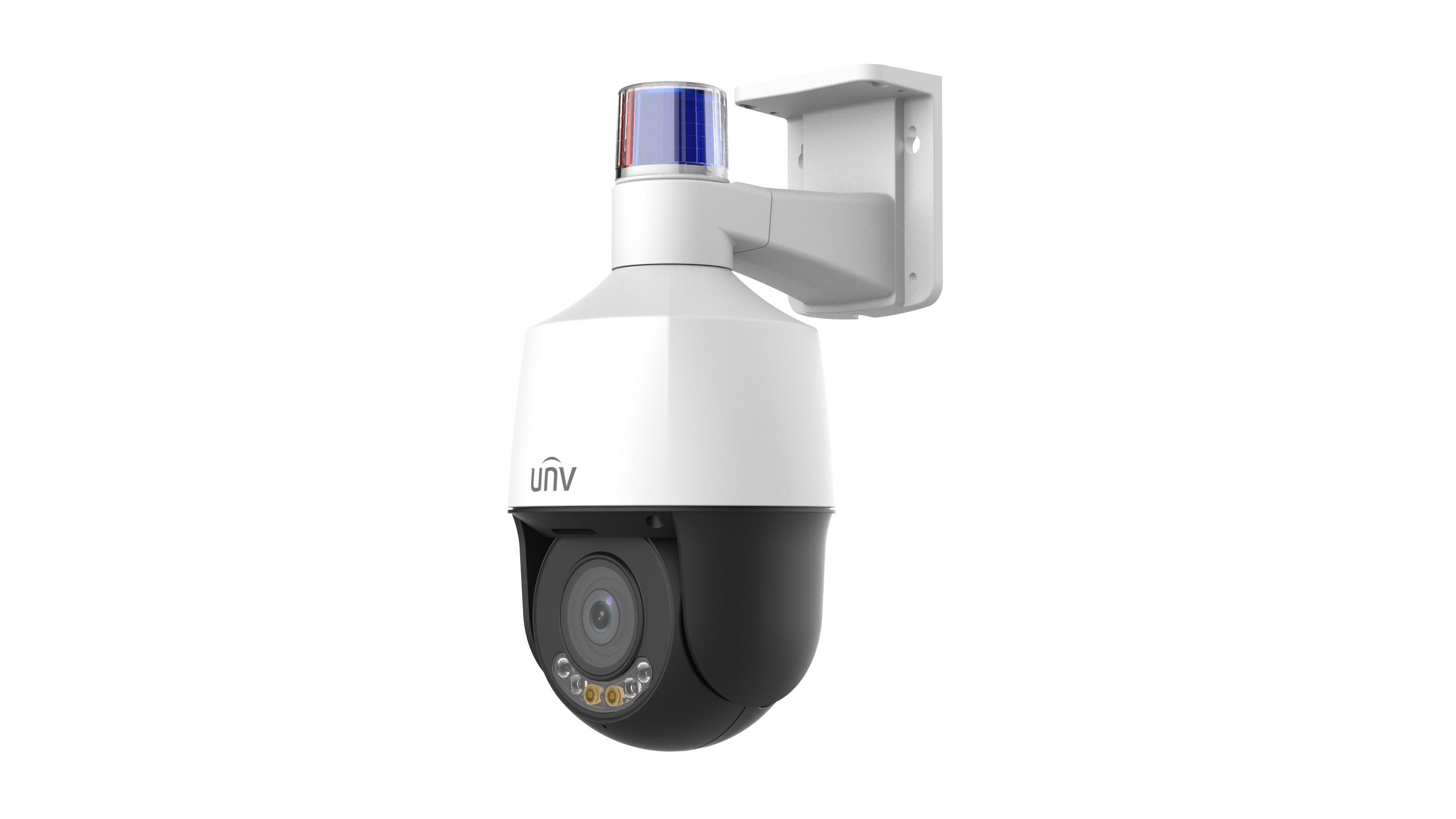

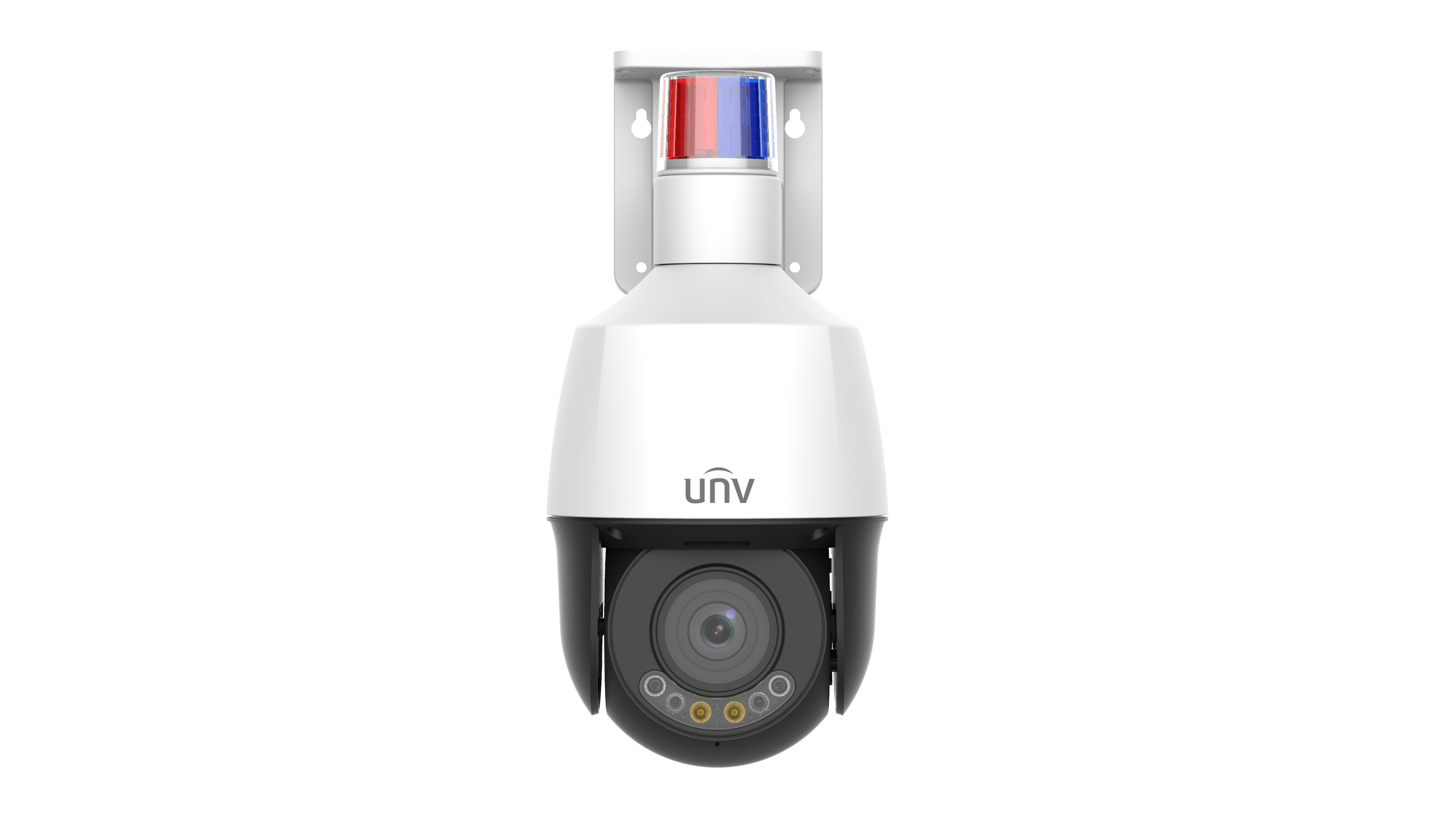

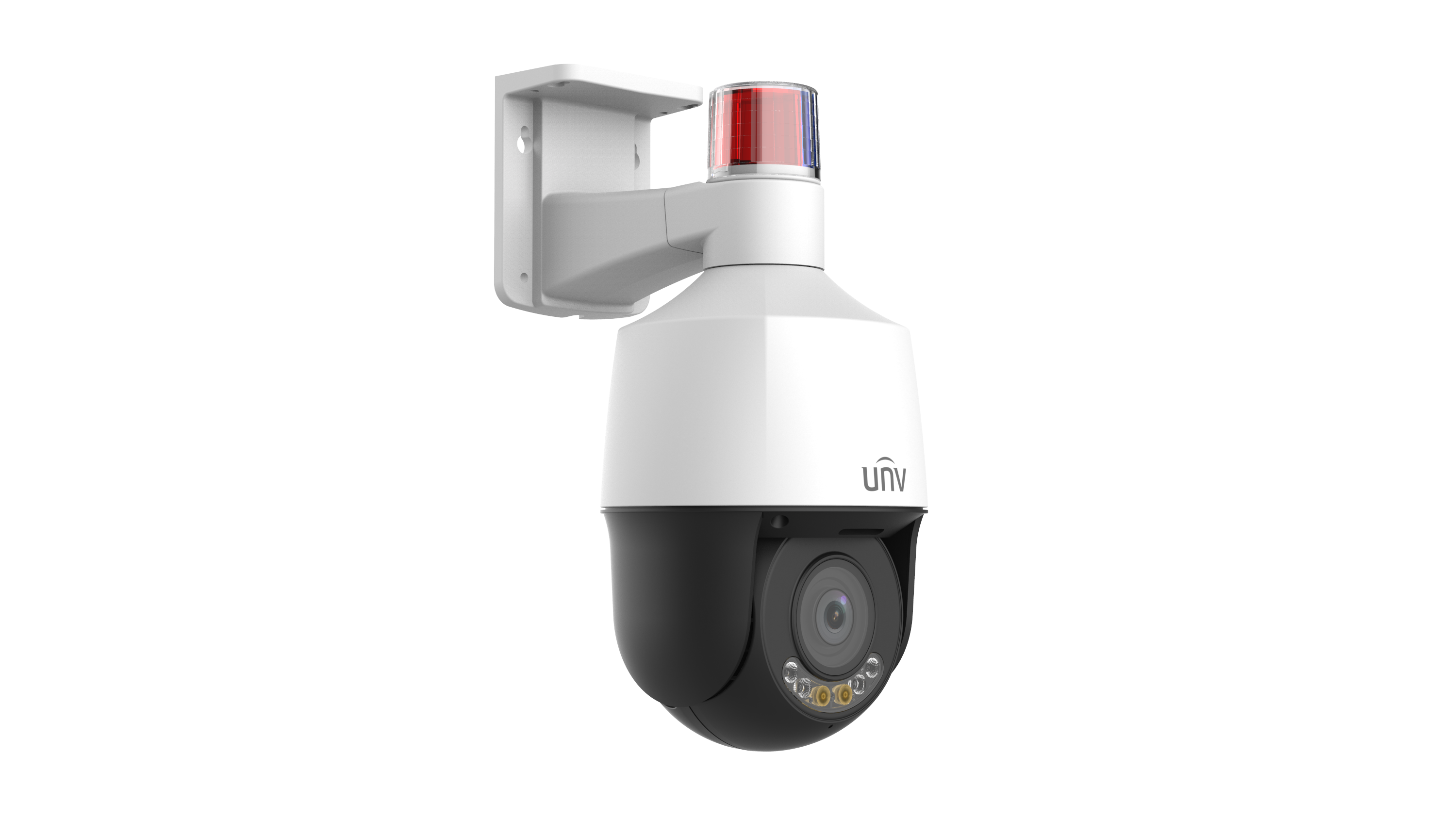

Uniview - IPC6322LFW-AX5C-VG - UNV 2MP Active Deterrence Matal PTZ Camera (2.7mm-13.5mm,Audio&Alarm, Two-Way Audio, Starlight, Auto Tracking)
Part number:
IPC6322LFW-AX5C-VG
Price:
UNV 2MP Active Deterrence Matal PTZ Camera (2.7mm-13.5mm, Audio & Alarm, Two-Way Audio, Starlight, Auto Tracking)
Features:
- High quality image with 2MP, 1/2.8" CMOS sensor
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB WDR (Wide Dynamic Range)
- Built-in Mic & Speaker
- Smart IR, Up to 50 m (164 ft) IR distance and 15m (49 ft) warm light distance
- Micro SD, up to 512GB
- IP66 protection
- DC12V or PoE (IEEE 802.3at) power supply
| IPC6322LFW-AX5C-VG | |
| Camera | |
| Max Resolution | 2MP |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Colour: 0.003 Lux (F1.2, AGC ON) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| WDR | 120dB |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| S/N | >52dB |
| Lens | |
| Focal Length | 2.7 ~ 13.5 mm |
| Iris | F1.2 |
| Optical Zoom | 5X |
| Field of View (H) | 105.2°~29.32° |
| Field of View (V) | 52.6°~16.38° |
| Field of View (D) | 136.8°-36.1° |
| DORI | |
| DORI Distance(Detect) | 48.9 m ~ 170.7 m (160.4 ft ~ 560 ft) |
| DORI Distance(Observe) | 19.6 m ~ 68.3 m (64.4 ft ~ 224 ft) |
| DORI Distance(Recognize) | 9.8 m ~ 34.1 m (32.1 ft ~ 112 ft) |
| DORI Distance(Identify) | 4.9 m ~ 17.1 m (16 ft ~ 56 ft) |
| Illuminator | |
| Illumination Distance(Warm Light) | 15 m (49.3 ft) |
| Illumination Distance(IR) | 50 m (164.0 ft) |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video | |
| Privacy Mask | Up to 4 areas |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps Sub Stream: 720P (1280*720), Max 30fps Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple Streams |
| OSD | Up to 8 OSDs |
| Image | |
| Defog | Digital Defog |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Intelligent | |
| Exception Detection | Object Removed, Object Left Behind, Scene Change, Defocus Detection |
| People Counting | Support People Flow Counting and Crowd Density Monitoring |
| Smart Intrusion Prevention | Support False Alarm Filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection |
| Auto Tracking | Support, target filtering: human only |
| Events | |
| Basic Detection | Motion Detection, Audio Detection, Tampering Alarm |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S,Profile G,Profile T), API |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, EZLive, EZView |
| Web Browser | Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above |
| PTZ | |
| Pan Range | 0° ~ 345° |
| Pan Speed | 1°/s～50°/s |
| Tilt Range | -10° ~ 100° |
| Tilt Speed | 1°/s～40°/s |
| Number of Presets | 256 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 120s ~ 1800s |
| Home Position | Support |
| Interface | |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Certification | |
| EMC | 4KV |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | |
| Power | DC12V(±25%), PoE(IEEE 802.3at) |
| Power Consumption | 18W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Dimensions | 185mm*133mm*286mm(L*W*H) |
| Weight | 788g |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 2KV |
| Reset Button | Support |
| Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
