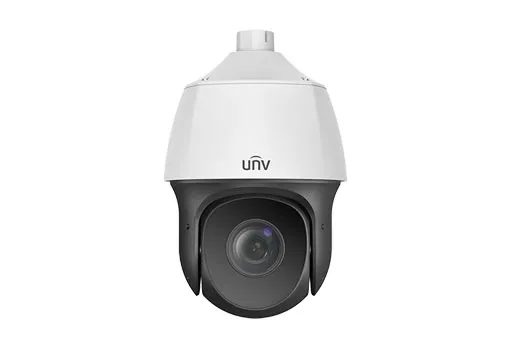

Uniview - IPC6322LR-X33U-D - 2MP 33x Starlight Network PTZ Dome Camera
Part number:
IPC6322LR-X33U-D
Price:
2MP 33x Starlight Network PTZ Dome Camera
Features:
Optics
- Starlight illumination
- 33x optical zoom
- Accurate and fast focusing
- Smart IR, up to 150m (492ft) IR distance
Compression
- 2 Megapixel image
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- Customized OSD
Network
- ONVIF Conformance
Structure
- Innovative snow-removing functionality
- Intelligent temperature control technology
- 6KV surge protection designed for network interface
- IP66
| IPC6322LR-X33U-D | ||||
| Camera | ||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |||
| Lens | 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens | |||
| Digital Zoom | 16 | |||
| Optical Zoom | 33 | |||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) |
| 4.5 | 72.9(239.3ft) | 29.2(95.7ft) | 14.6(47.9ft) | |
| 148.5 | 2187.9 (7178.3ft) | 875.2(2871.3ft) | 437.6(1435.7ft) | |
| Angle of View (H) | 56.2° ~ 2.6° | |||
| Angle of View (V) | 33.5° ~ 1.4° | |||
| Angle of View (O) | 65.4° ~ 3.0° | |||
| Shutter | Auto/Manual; shutter time: 1 ~ 1/100000s | |||
| Minimum Illumination | Colour: 0.001 lux (F1.5,AGC ON) 0 lux with IR | |||
| Iris | Auto/Manual; F1.5 ~ F4.0 | |||
| WDR | 120dB | |||
| Day/Night | IR-cut filter with auto switch (ICR) | |||
| Digital noise reduction | 2D/3D DNR | |||
| S/N | >52dB | |||
| IR Range | UP to 150m (492ft) | |||
| Wavelength | 850nm | |||
| IR On/Off Control | Auto/Manual | |||
| Defog | Digital Defog | |||
| Video | ||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps | |||
| Video Bit Rate | 128 Kbps~16 Mbps | |||
| ROI | Up to 8 areas | |||
| Video stream | Triple streams | |||
| OSD | Up to 8 OSDs | |||
