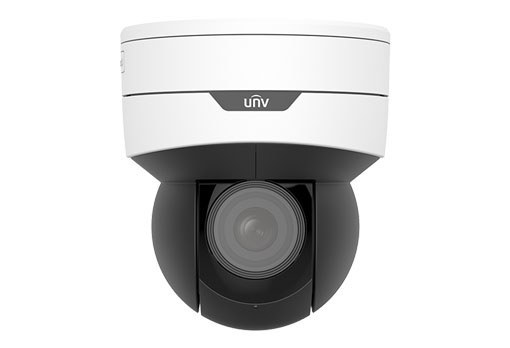

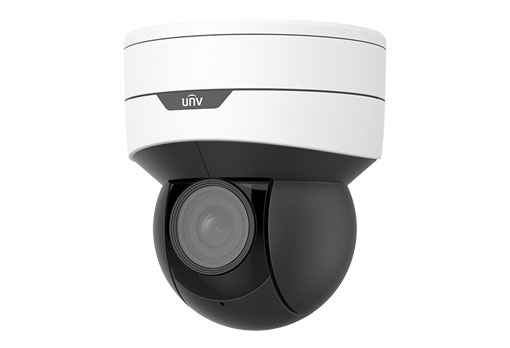

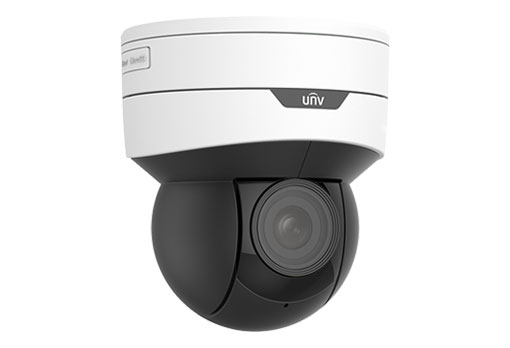

Uniview - IPC6412LR-X5P - 2MP IR Network Indoor Mini PTZ Dome Camera
Part number:
IPC6412LR-X5P
Price:
UNV Easy 2MP miniPTZ
Features:
Optics
- Day/night functionality
- Smart IR , up to 30 m (98 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Wide temperature range: -10°C to 50°C (14°F to 122°F)
- Wide voltage range of ±25%
| IPC6412LR-X5P | |||||
| Camera | |||||
| Sensor | 1/2.9" progressive scan, 2.0 megapixel, CMOS | ||||
| Lens | 2.7~13.5mm，AF automatic focusing and motorized zoom lens | ||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 2.7mm | 43.4 | 17.4 | 8.7 | 4.3 | |
| 13.5mm | 217 | 86.8 | 43.4 | 21.7 | |
| Angle of View (H) | 29.1°~104.3° | ||||
| Angle of View (V) | 16°~55.1° | ||||
| Angle of View (O) | 34.5°~142.9° | ||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | ||||
Minimum Illumination | Colour: 0.03 lux (F1.2,AGC ON) 0 lux with IR | ||||
| Iris | F1.2 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52 dB | ||||
| IR Range | UP to 30m (98ft) | ||||
| WDR | DWDR | ||||
| Video | |||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile | ||||
Frame Rate | Main Stream:1080P (1920×1080):Max. 30 fps; Sub Stream:720P (1920×1080):Max. 30 fps; Third Stream: CIF (352×288): Max. 30 fps | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 2 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Compatible Integration | ONVIF(Profile S, Profile G), API |
| Pan & Tilt | |
| Pan Range | 0° ~ 350° |
Pan Speed | 0.1°/s ~ 60°/s |
| Preset speed: 60°/s | |
| Tilt Range | 0° ~ 90° |
Tilt Speed | 0.1° ~ 50°/s |
| Preset speed: 50°/s | |
| Number of Presets | 1024 |
| Home Position | Supported |
| Interface | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| General | |
Power | DC 12V±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 12W | |
| Dimensions (Ø x H) | Φ129mm×143mm(Φ5.07” x5.63”) |
| Weight | 0.75kg(1.65lb) |
| Working Environment | –10°C ~ +50°C (14°F ~ 122°F), Humidity:≤95% RH(non-condensing) |
| Reset Button | Supported |
