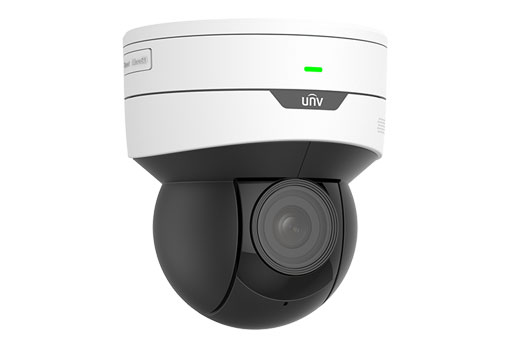

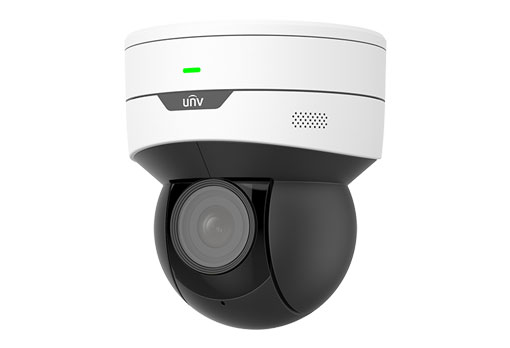

Uniview - IPC6415SR-X5UPW - 5MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera
UNV 5MP Starlight WiFi miniPTZ (Build-in Mic, Build-in Speaker)
Optics
Starlight illumination
Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
Up to 120 dB Optical WDR(Wide Dynamic Range)
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265,H.265, H.264, MJPEG
Built-in microphone & speaker
Triple streams
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
Support PoE power supply
Wide temperature range: -10°C to 50°C (14°F to 122°F)
Wide voltage range of ±25%
| IPC6415SR-X5UPW | |||||
| Camera | |||||
| Sensor | 1/2.7" progressive scan, 5.0 megapixel, CMOS | ||||
| Lens | 2.7~13.5mm，AF automatic focusing and motorized zoom lens | ||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 2.7mm | 60.8 | 24.3 | 12.2 | 6.1 | |
| 13.5mm | 303.8 | 121.5 | 60.8 | 30.4 | |
| Angle of View (H) | 27.9°~98.3° | ||||
| Angle of View (V) | 20.6°~70.3° | ||||
| Angle of View (O) | 30.0°~136.9° | ||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | ||||
Minimum Illumination | Colour: 0.002 lux (F1.2,AGC ON) 0 lux with IR | ||||
| Iris | F1.2 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >55 dB | ||||
| IR Range | UP to 30m (98ft) | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
Frame Rate | Main Stream:5M (2592*1944):Max. 30 fps; Sub Stream: 720P (1280×720):Max. 30 fps; Third Stream: D1 (720×576): Max. 30 fps |
| BLC | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 24 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR |
| Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL |
| Compatible Integration | ONVIF(Profile S, Profile G), API |
| Pan & Tilt | |
| Pan Range | 350° |
Pan Speed | 0.1°/s ~ 60°/s |
| Preset speed: 60°/s | |
| Tilt Range | 0° ~ 90° |
Tilt Speed | 0.1° ~ 50°/s |
| Preset speed: 50°/s | |
| Number of Presets | 1024 |
| Home Position | Supported |
| Interface | |
| Alarm I/O | 1/1 |
| Serial Port | 1 RS485 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| Built-in Speaker | Supported |
| WIFI | Supported |
| General | |
Power | DC 12V±25%, PoE (IEEE802.3 at) |
| Power consumption: Max 16W | |
| Dimensions (Ø x H) | Φ129mm×143mm(Φ5.07” x5.63”) |
| Weight | 0.75kg(1.65lb) |
| Working Environment | –10°C ~ +50°C (14°F ~ 122°F), Humidity:≤95% RH(non-condensing) |
| Reset Button | Supported |
