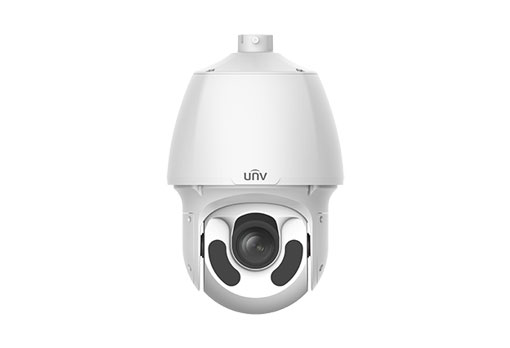

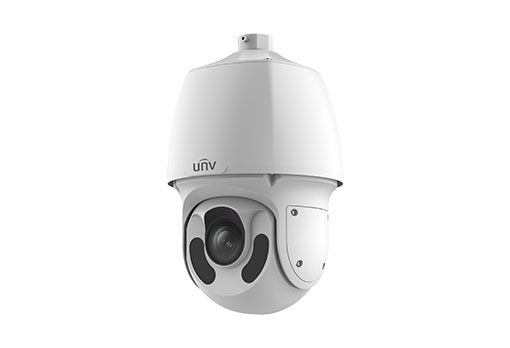

Uniview - IPC6624SR-X33-VF - 4MP 33X LightHunter Network PTZ Dome Camera
Part number:
IPC6624SR-X33-VF
Price:
4MP 33X LightHunter Network PTZ Dome Camera
Features:
- High quality image with 4MP,1/2.8’’ CMOS sensor
- 2688*1520@30fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- 33X Optical Zoom
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- Lighthunter technology ensures ultra‑high image quality in low illumination environment
- Smart IR, up to 150m (492 ft) IR distance
- AC 24V±25%, DC 24V±25% or PoE+(IEEE 802.3at) power supply
- Alarm 2 in and 1 out, Audio 1 in and 1 out
- IP66 ingress protection
| Camera | Description |
| Sensor | 1/2.8''CMOS |
| Min. Illumination | Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR |
| Day/Night | IR‑cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >56dB |
| Lens | Description |
| Lens type | 4.5~148.5mm |
| Digital Zoom | 16X |
| Optical Zoom | 33X |
| Iris | F1.5 ~ F4.0 |
| Field of View (H) | 51.4° ~ 2.5° |
| Field of View (V) | 30.3° ~ 1.4° |
| Field of View (D) | 63.2° ~ 3.0° |
| DORI | Description |
| DORI Distance（Lens） | 4.5~148.5(mm) |
| DORI Distance（Detect） | 105.8m~3172.5m(346.9ft~10408.5ft) |
| DORI Distance（Observe） | 42.3m~1269.0m(138.8ft~4163.4ft) |
| DORI Distance（Recognize） | 21.2m~634.5m(69.4ft~2081.7ft) |
| DORI Distance（Identify） | 10.6m~317.3m(34.7ft~1040.8ft) |
| Illuminator | Description |
| Illumination Distance(IR) | 150m |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850nm |
| Image | Description |
| Smart IR | Support |
| White Balance | Auto;Outdoor;Fine Tune;Sodium Lamp;Locked;Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Flip | Normal;Flip Vertical;Flip Horizontal;180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent | Description |
| Exception Detection | Object Removed;Object Left Behind |
| Smart intrusion prevention | Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection |
| People Counting | Support people flow counting and crowd density monitoring |
| Video | Description |
| Video Compression | Ultra 265;H.265;H.264;MJPEG |
| Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps Sub Stream: 2MP (1920*1080), Max 30fps Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Events | Description |
| Auto Tracking | Support |
| Basic Detection | Motion detection;Audio detection;Tampering alarm |
| General Function | Watermark;IP Address Filtering;Access Policy;ARP Protection;RTSP Authentication;User Authentication;Alarm input;Alarm output |
| Audio | Description |
| Audio Compression | G.711U;G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | Description |
| Edge Storage | Micro SD，up to 256 GB |
| Network Storage | ANR;NAS(NFS) |
| Network | Description |
| Protocols | IPv4;IPv6;IGMP;RTP;SMTP;ARP;TCP;UDP;DHCP;PPPoE;RTSP;RTCP;RTMP;DNS;DDNS;NTP;FTP;UPnP;HTTP;HTTPS;802.1x;SNMP;QoS;SSL/TLS;ICMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T);API;SDK |
| User/Host | Up to 32 users. 3 user levels: administrator,common user and operator |
| Security | Password protection;Strong password;HTTPS encryption;Export operation logs;Basic and digest authentication for RTSP;Digest authentication for HTTP;TLS 1.2;WSSE and digest authentication for ONVIF |
| Client | EZStation; EZLive;EZView |
| Web Browser | Plug‑in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above |
| Pan/Tilt | Description |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 200°/s |
| Tilt Range | –15° ~ 90° (auto reverse) |
| Tilt Speed | 0.1°/s ~ 200°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s~1800s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Interface | Description |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 * RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base‑TX Ethernet |
| Video Output | 1 BNC |
| Certification | Description |
| EMC | CE‑EMC (EN 55032:2015+A11:2020; EN IEC 61000‑3‑2:2019; EN 61000‑3‑3:2013+A1:2019; EN 55035:2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4‑2014) |
| Safety | CE LVD (EN 62368‑1:2014+A11:2017) UL (UL 62368‑1, 2nd Ed., Issue Date: 2014‑12‑01) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | Description |
| Power | AC 24V±25%, DC 24V±25%, PoE+ (IEEE802.3 at) |
| Power Consumption | Max 25W |
| Power Interface | Wires with cold‑pressed terminal |
| Dimensions | Ø 227 x 384.8 mm(Ø 8.9" x 15.1") |
| Weight | 5.28kg(11.64lb) |
| Working Environment | ‑40℃ ~ 70℃ (‑40°F ~ 158°F), Humidity: ≤95% RH (non‑condensing) |
| Storage Environment | ‑40℃ ~ 70℃ (‑40°F ~ 158°F), Humidity: ≤95% RH (non‑condensing) |
| Surge protection | 6KV |
| Reset button | Support |
