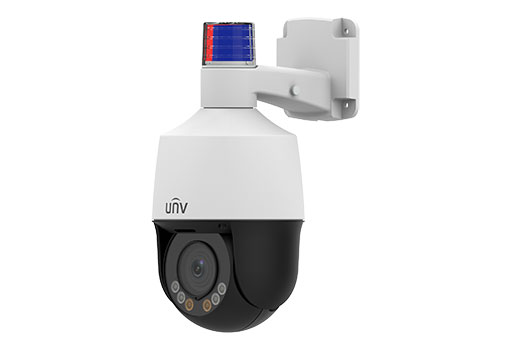

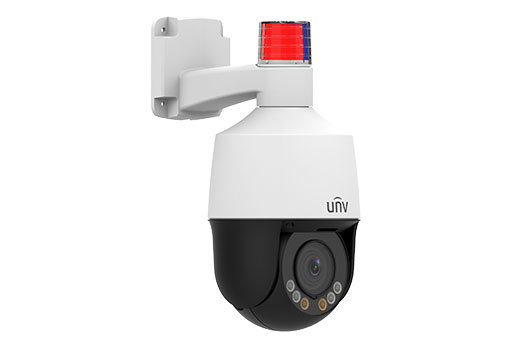

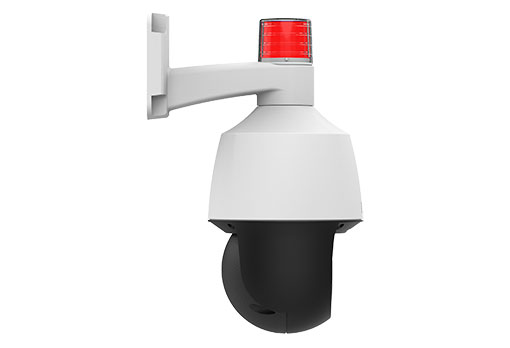

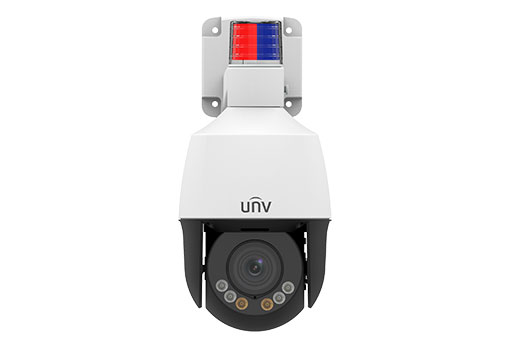

Uniview - IPC672LR-AX4DUPKC - UNV 2MP Light&Sound Alarm PTZ Camera (2.8mm-12mm, Two-Way Audio, Starlight, Auto Tracking)
Part number:
IPC672LR-AX4DUPKC
Price:
UNV 2MP Light&Sound Alarm PTZ Camera (2.8mm-12mm, Two-Way Audio, Starlight, Auto Tracking)
Features:
Optics
- LightHunter illumination
- Day/night functionality
- Up to 50 m (164 ft) IR and 10m (33 ft) warm light distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- Built-in microphone & speaker
- Alarm Light
- Triple streams
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Wide temperature range: -20°C ~ 60°C (-4°F to 140°F)
- Wide voltage range of ±25%
- IP66
| IPC672LR-AX4DUPKC | |||||
| Camera | |||||
| Sensor | 1/2.8" progressive scan, 2.0 megapixel, CMOS | ||||
| Lens | 2.8~12mm，AF automatic focusing and motorized zoom lens | ||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 2.8mm | 43.4 | 17.4 | 8.7 | 4.3 | |
| 12mm | 186.2 | 74.5 | 37.2 | 18.6 | |
| Angle of View (H) | 32.5°~95.7° | ||||
| Angle of View (V) | 18.4°~52.2° | ||||
| Angle of View (O) | 36.9°~100.8° | ||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | ||||
Minimum Illumination | Colour:0.001 lux (F1.6,AGC ON) 0 lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52 dB | ||||
| IR Range | UP to 50m (164ft) | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Warm Light Range | UP to 10m (33ft) | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile | ||||
Frame Rate | Main Stream:1080P (1920*1080):Max. 30 fps; 720P (1280×720):Max. 30 fps; Sub Stream: 720P (1280×720):Max. 30 fps; Third Stream: CIF (352*288): Max. 30 fps | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| OSD | Up to 8 OSDs | ||||
