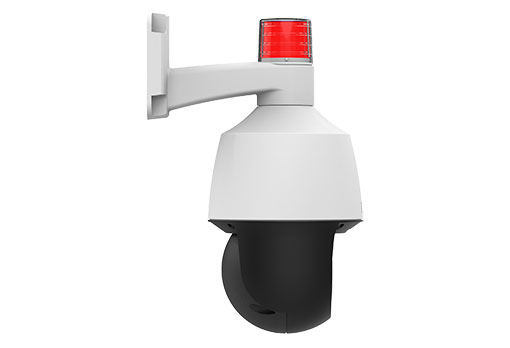

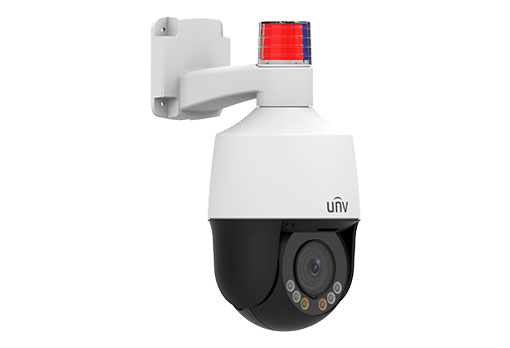

Uniview - IPC675LFW-AX4DUPKC-VG - 5MP Light & Sound Alarm PTZ Camera (2.8mm-12mm, Two-Way Audio, Starlight, Auto Tracking)
Part number:
IPC675LFW-AX4DUPKC-VG
Price:
UNV 5MP Light & Sound Alarm PTZ Camera (2.8mm-12mm, Two-Way Audio, Starlight, Auto Tracking)
Features:
- High quality image with 5MP, 1/2.7"CMOS sensor
- Ultra 265, H.265, H.264, MJPEG
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Built-in Mic & Speaker
- Smart IR, Up to 50 m (164 ft) IR distance and 10m (33 ft) warm light distance
- Micro SD, up to 256GB
- IP66 protection
- DC12V or PoE (IEEE 802.3af) power supply
| IPC675LFW-AX4DUPKC-VG | |||||
| Camera | |||||
| Sensor | 1/2.7" progressive scan, 5.0 megapixel, CMOS | ||||
| Min. Illumination | Colour:0.003 lux (F1.6,AGC ON) 0 lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | ||||
| WDR | 120dB | ||||
| S/N | >52dB | ||||
| Lens | |||||
| Lens type | 2.8~12mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 4 | ||||
| Optical Zoom | 4 | ||||
| Iris | Fixed; F1.6 | ||||
| Angle of View (H) | 104.1° ~ 30.6° | ||||
| Angle of View (V) | 54.9° ~17.4° | ||||
| Angle of View (O) | 108.3° ~34.4° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8mm | 63.0 (206.7ft) | 25.2 (82.7ft) | 12.6 (41.3ft) | 6.3 (20.7ft) | |
| 12mm | 270.0 (885.8ft) | 108.0 (354.3ft) | 54.0 (177.2ft) | 27.0 (88.6ft) | |
| Illuminator | |||||
| IR Range | Up to 50m (164ft) | ||||
| Warm Light Range | Up to 10m (33ft) | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 25fps;3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| ROI | Support | ||||
| Video Stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm | ||||
| Auto Tracking | Support | ||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U,G.711A | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8 kHz | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Client | EZStation EZLive EZView | ||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Pan & Tilt | |||||
| Pan Range | 0° ~ 345° | ||||
| Pan Speed | 0.1°/s ~ 50°/s | ||||
| Preset speed: 50°/s | |||||
| Tilt Range | -10° ~ 110° | ||||
| Tilt Speed | 0.1°/s ~ 40°/s | ||||
| Preset speed: 40°/s | |||||
| Number of Presets | 256 | ||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | ||||
| Patrol Stay Time | 15s~1800s | ||||
| Home Position | Support | ||||
| Interface | |||||
| Built-in Mic | Support | ||||
| Built-in Speaker | Support | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Alarm Light | Support | ||||
| Certification | |||||
| Safety | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||
| General | |||||
Power | DC12V(±25%), PoE(IEEE 802.3af) | ||||
| Power consumption: MAX 18W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (Ø x H) | Φ133mm*269mm (Φ5.2”x 10.6”) | ||||
| Weight | 0.87 kg (1.92lb) | ||||
| Working Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) | ||||
| Storage Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) | ||||
| Surge Protection | 2KV | ||||
| Reset Button | Support | ||||
| Protection | Ingression protection: IP66 Vandal resistant: N/A | ||||
