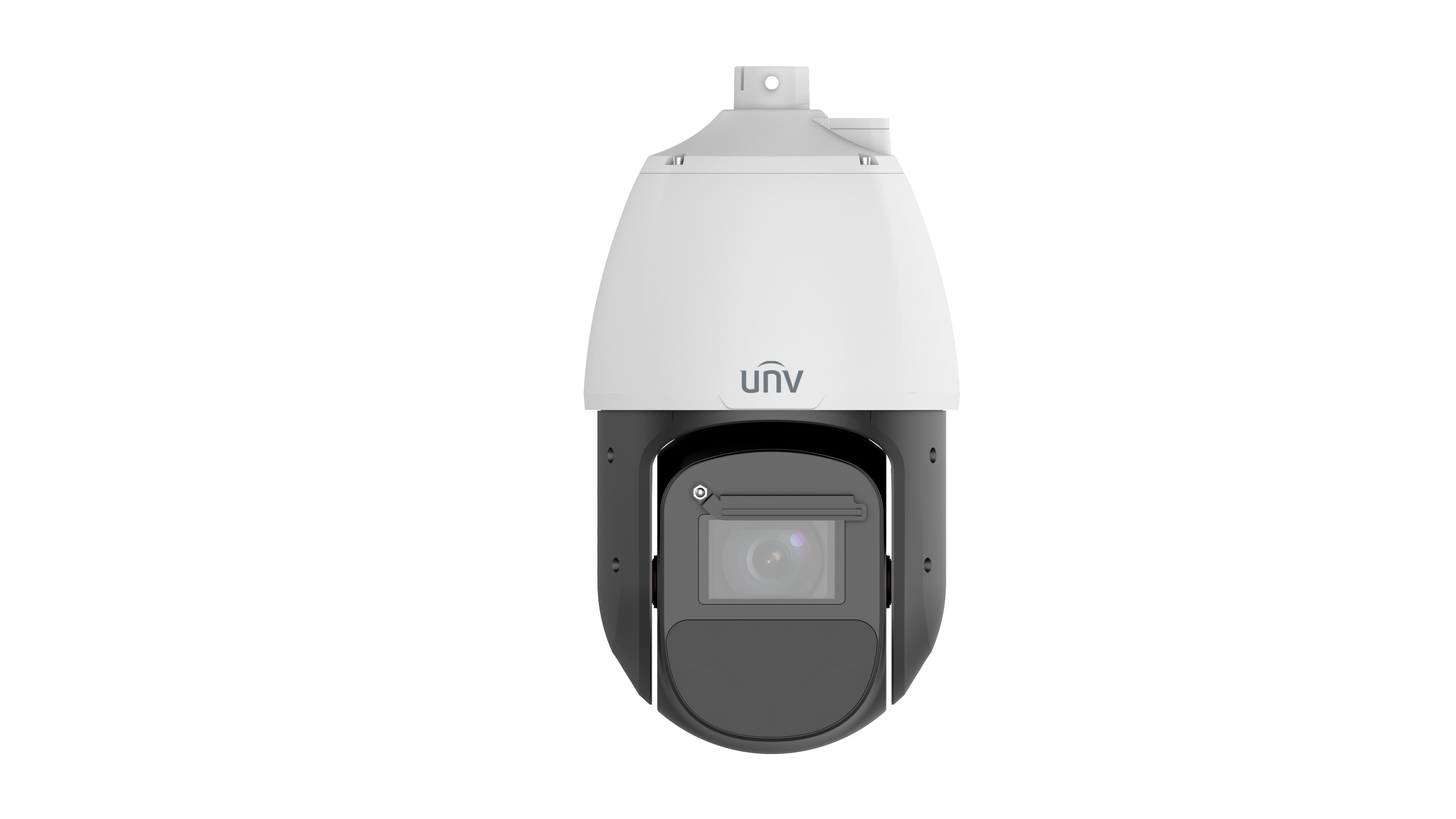

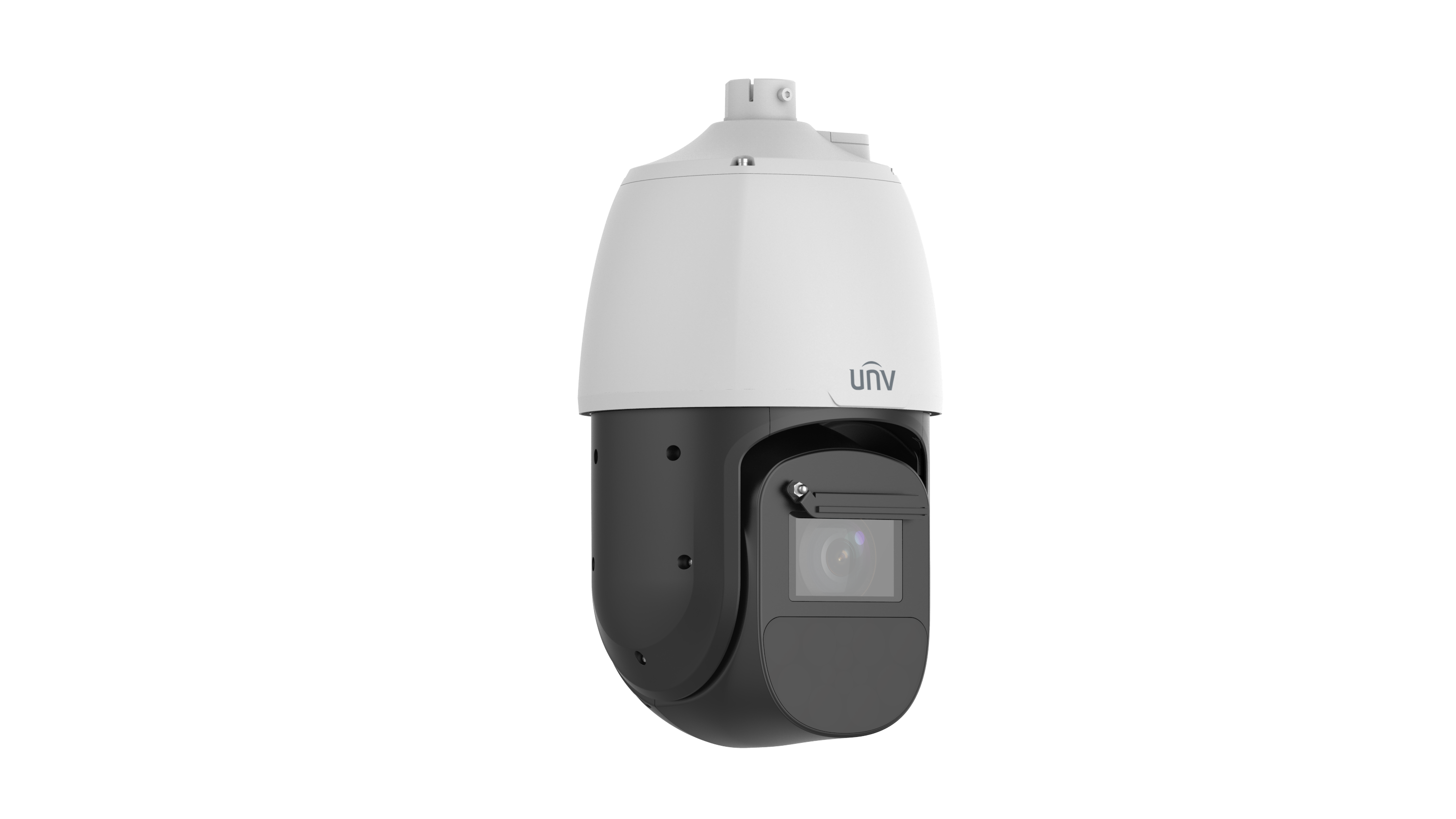

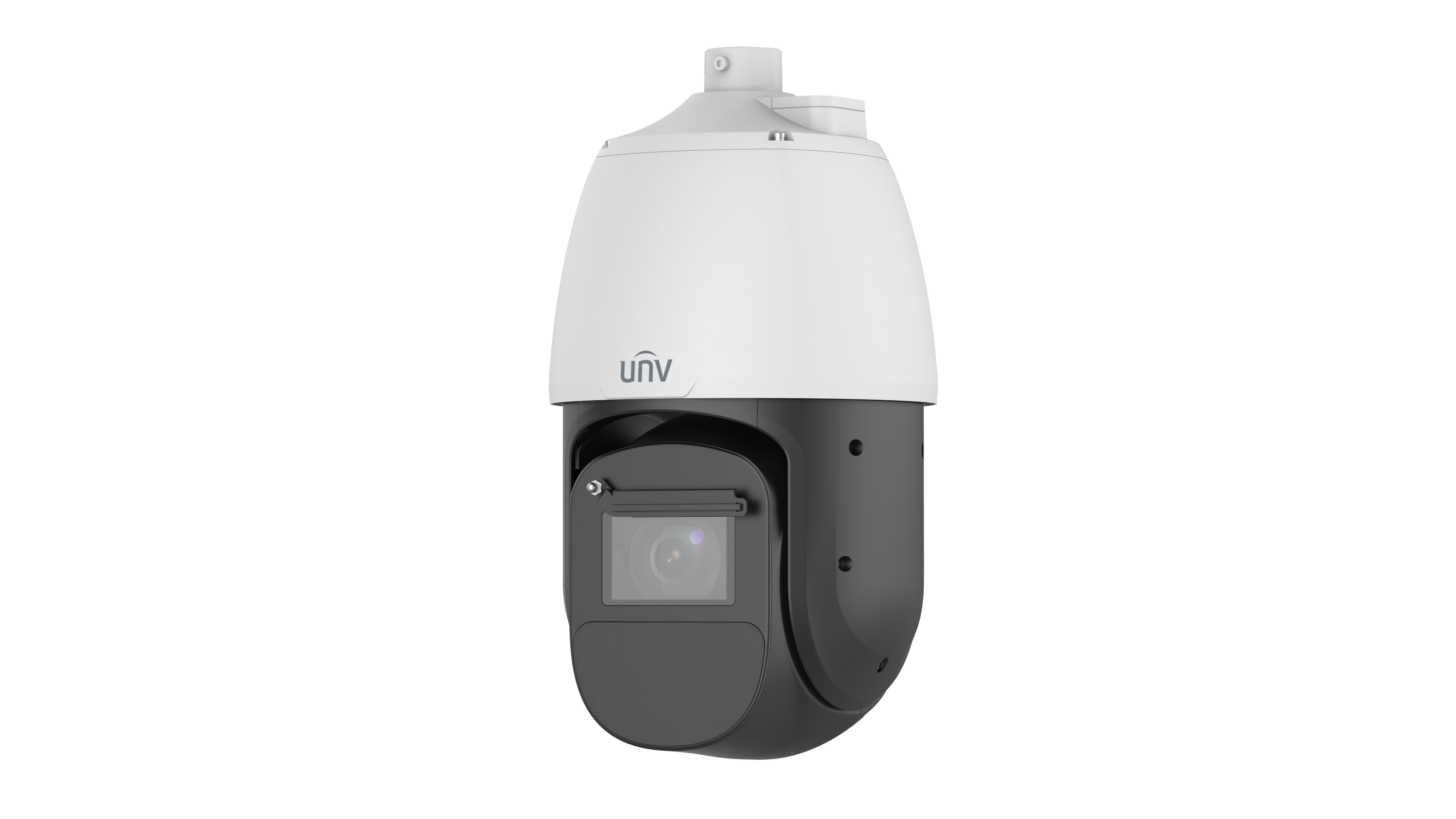

Uniview - IPC6824EL-X42-W-VH1 - 4MP 42X LightHunter Laser Network PTZ Camera
Part number:
IPC6824EL-X42-W-VH1
Price:
4MP 42X LightHunter Laser Network PTZ Camera
Features:
• 2688 x 1520@60 fps in the main stream
• 42X optical zoom
• Smart intrusion prevention, supports false alarm filtering, including cross Line, intrusion, enter area, leave area detection
• supports front-end , supports blocklist and allowlist comparison
• People counting, supports people flow counting and crowd density monitoring
• Multi-target detection, supports human body, motor vehicle and non-motor vehicle image capture and attribute collection, realize data visualization management, allow users to get target information for further data analysis
• Support optical defog, Self-adaptive defog
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• IR illumination: 500 m (1640 ft) distance, proportional to optical zoom of camera module
• Gyroscope stabilization for stable picture
• Support wiper
• Power supply, AC 24 V ±25%, DC 24 V ±25%, PoE
• Alarm 7 in and 2 out, Audio 1 in and 1 out
• IP67 ingress protection
IPC6824EL-X42-W-VH1 | ||
| Camera | ||
| Sensor | 1/1.8" CMOS | |
| Min. Illumination | Colour: 0.0003 Lux (F1.2, AGC ON) 0 Lux with IR | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1 to 1/100000 s | |
| WDR | 120 dB | |
| S/N | >56 dB | |
| Lens | ||
| Focal Length | 6.0~252mm | |
| Optical Zoom | 42X | |
| Digital Zoom | 16X | |
| Iris | F1.2 to F4.6 | |
| Field of View (H) | 59.47° ~ 2.20° | |
| Field of View (V) | 35.62° ~ 1.24° | |
| Field of View (D) | 73.15° ~ 2.60° | |
| DORI | ||
| DORI Distance (Detect) | 107.2 m ~ 3330.6 m (351.8 ft ~ 10927.2 ft) | |
| DORI Distance (Observe) | 42.9 m ~ 1332.2 m (140.7 ft ~ 4370.9 ft) | |
| DORI Distance (Recognize) | 21.4 m ~ 666.1 m (70.4 ft ~ 2185.4 ft) | |
| DORI Distance (Identify) | 10.7 m ~ 333.1 m (35.2 ft ~ 1092.7 ft) | |
| Video | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| Frame Rate | Main Stream: 4MP (2688*1520), Max 60fps Sub Stream: 2MP (1920*1080), Max 60fps Third Stream: D1 (720*576), Max 60fps | |
| Video Bit Rate | 128 Kbps to 16 Mbps | |
| U-code | Support | |
| ROI | Support | |
| Video Stream | Triple streams | |
| Privacy Mask | 24 areas, up to 8 areas per scene | |
| OSD | Up to 10 OSDs | |
| Events | ||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind | |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output | |
| Audio | ||
| Audio Compression | G.711U, G.711A | |
| Audio Bitrate | 128 Kbps | |
| Two-way Audio | Support | |
| Suppression | Support | |
| Sampling Rate | 16 kHz | |
| Storage | ||
| Edge Storage | Micro SD, up to 512 GB | |
| Network Storage | ANR, NAS (NFS) | |
| Network | ||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, TLS 1.3, WSSE and Digest Authentication for ONVIF | |
| Client | EZStation, UNV-Link, UNV-Link Pro | |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |
| Intelligent | ||
| Auto Tracking | Support, target filtering: human, non-motor vehicle and vehicle | |
| Multi-target Detection | Support | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |
| People Counting | Support people flow counting and crowd density monitoring | |
| PTZ | ||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |
| Number of Presets | 1024 | |
| Preset Image Freeze | Support | |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |
| Patrol Stay Time | 15 s to 1800 s | |
| Home Position | Support | |
| Pan Range | 360° (endless) | |
| Pan Speed | 0.1°/s ~ 180°/s | |
| Tilt Range | –15° ~ 90° (auto flip) | |
| Tilt Speed | 0.1°/s ~ 180°/s | |
| Image | ||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |
| Digital Noise Reduction | 2D/3D DNR | |
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |
| HLC | Support | |
| BLC | Support | |
| Defog | Digital defog, Optical defog | |
| EIS | Support | |
| Image Stabilization | EIS (Gyroscope) | |
| Interface | ||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |
| Alarm I/O | 7/2 | |
| Serial Port | 1 * RS485 | |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |
| Video Output | 1 BNC (for debugging) | |
| Illuminator | ||
| Illumination Distance (IR) | 500m | |
| IR On/Off Control | Auto/Manual | |
| Wavelength | 850 nm | |
| Certification | ||
| EMC | CE-EMC (EN 55032: 2015+ A11: 2020; EN IEC 61000-3-2: 2019; EN 61000-3-3: 2013+ A: 2019; EN 55035: 2017+ A11: 2020) | |
| Safety | CE LVD (EN IEC 62368-1: 2020+ A11: 2020) | |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |
| General | ||
| Power | AC24V ± 25%, DC24V ± 25%, PoE (IEEE802.3bt) | |
| Power Consumption | Max 67 W | |
| Power Interface | Wires with cold-pressed terminal | |
| Dimensions | Ø 226.7 x 440.3 mm (Ø 8.93" x 17.33") (Ø x H) | |
| Weight | 6.9 kg (15.21 lb) | |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |
| Surge Protection | 6 KV | |
| Reset Button | Support | |
| Heater | Support | |
