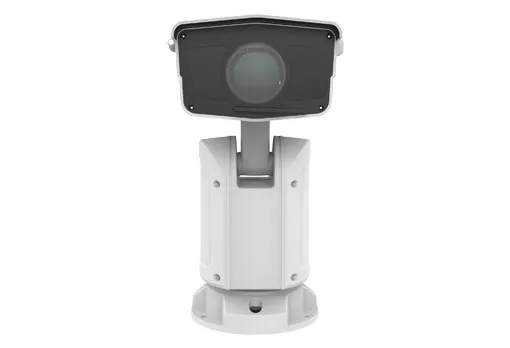

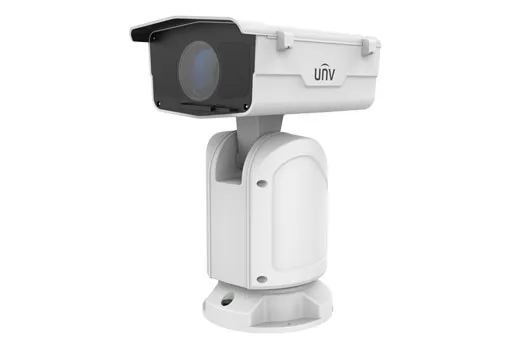

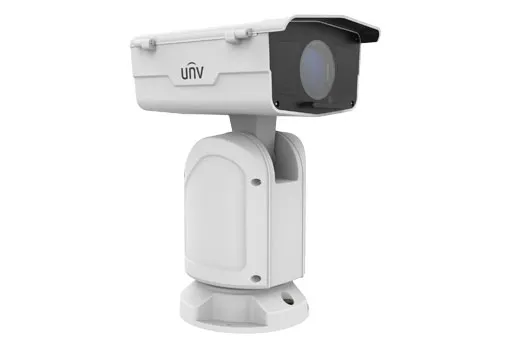

Uniview - IPC7622ER-X44U - 2MP 44x Lighthunter IR Network Positioning System
Part number:
IPC7622ER-X44U
Price:
UNV 44x Positioning System,Lighthunter, HLC, EIS(Gyroscope), smart function, IP66, wiper
Features:
Optics
- 44X Optical Zoom(5~220mm) with wider and farther
- Starlight illumination
- Support Optical defog, Self-adaptive defog
- Day/night functionality
- Smart IR , up to 300 m (984 ft) IR distance
- Gyroscope stabilization for stable picture
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265, H.265, H.264, MJPEG
- Support 1080P@60fps，which has the smoother motion image
- Triple streams
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Intelligent temperature control technology
- Intelligent Wiper function
- Embedded gradienter to ensure the horizontal position while installation
- Wide temperature range: -40°C to 70°C (-40°F to 158°F)
- Power supply: DC 48V±25%,DC 24V±15%(DC20V~DC60V)/ DC-48V±25%,DC-24V±15%(DC-20V~DC-60V)/ AC 24V±25%
- Support 1/1 audio in/out, 7/2 alarm in/out ,1 Serial port RS485,1 BNC
- Support up to 256G Micro SD card
- Ingress Protection: IP66
| Camera | |||||
| Sensor | 1/2.8" progressive scan, 2.0megapixel, CMOS | ||||
| Lens | 5~220mm，AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 44 | ||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 5mm | 77.6(254.5ft) | 31.0(101.7ft) | 15.5(50.8ft) | 7.8(25.6ft) | |
| 220mm | 3413.8(11197.3ft) | 1365.5(4478.8ft) | 682.8(2239.6ft) | 341.4(1119.8ft) | |
| Angle of View (H) | 60.6 ~ 1.83° | ||||
| Angle of View (V) | 34.8°~0.8° | ||||
| Angle of View (O) | 75.7°~1.8° | ||||
| Shutter | Auto/Manual, shutter time: 1s ~ 1/100000 s | ||||
| Minimum Illumination | 0.0005lux (F1.2，AGC ON，Colour)， 0 lux with IR | ||||
| Iris | F1.2 ~ F3.5 | ||||
| Day/Night | IR-cut filter with auto switch(ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52 dB | ||||
| Defog | Optical Defog | ||||
| WDR | 120dB | ||||
| IR Distance | 300m(984ft) | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream:2MP (1920×1080)@60fps Sub Stream:2MP(1920×1080)@60fps; Third Stream:D1(720×576)@60fps | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Gyroscope | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 24 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Smart | |||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711A, G.711U | ||||
| Two way audio | Supported | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4、HTTP、HTTPS、SSL/TLS、FTP、SMTP、SNMPV1/V2/V3(MIB-Ⅱ)、DNS、NTP、RTSP、RTP、TCP、UDP、IGMP、RTCP、ICMP、DHCP、ARP | ||||
| Compatible Integration | ONVIF(Profile S, Profile G，Profile T),API | ||||
| Pan & Tilt | |||||
| Pan Range | 360° | ||||
| Pan Speed | 0.1°/s ~140°/s | ||||
| Preset speed: 140°/s | |||||
| Tilt Range | –90° ~ +45° | ||||
| Tilt Speed | 0.1° ~50°/s | ||||
| Preset speed:50°/s | |||||
| Number of Presets | 1024 | ||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||
| Power-off memory | Supported | ||||
| Keep watch | Supported | ||||
| Interface | |||||
| Audio I/O | 1 Input: impedance 35 kΩ; amplitude2 V [p-p] | ||||
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |||||
| Alarm I/O | 7/ 2 | ||||
| Serial Port | 1 RS485 | ||||
| Network | 10M/100M/1000M Base-TX Ethernet | ||||
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] | ||||
| General | |||||
| Power | DC 48V±25%/DC 24V±15% (DC20V~DC60V) DC-48V±25%/DC-24V±15%(DC-20V~DC-60V), AC 24V±25% | ||||
| Power consumption: Max 87.8W | |||||
| Dimensions (Ø x H) | 280.1mmx364.9mm x505.2mm (Φ11.0” x 14.4” x19.9”) | ||||
| Weight | 13.98kg(30.8lb) | ||||
| Working Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity :≤95% RH(non-condensing) | ||||
| Ingress Protection | IP66 | ||||
