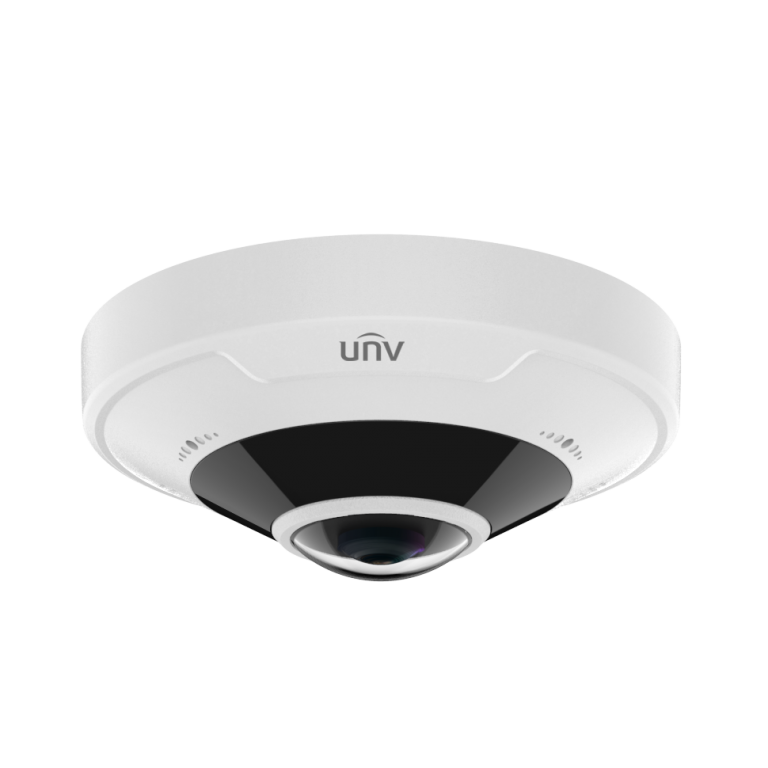

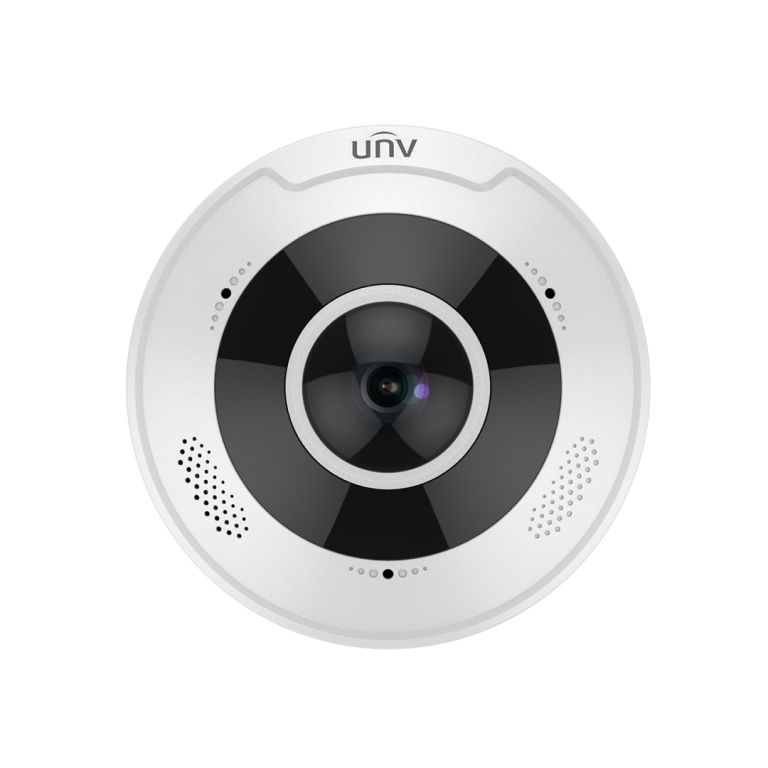

Uniview - IPC815SB-ADF14K-I0 - 5MP Network IR Fisheye Dome Camera (1.4mm, 10m IR, SD Slot, PoE, RJ45, Omnidirectional MicroPhone, Full Cable)
UNV 5MP Network IR Fisheye Dome (1.4mm, 10m IR, SD Slot, PoE, RJ45, Omnidirectional MicroPhone, Full Cable)
Features:
- High quality image with 5MP, 1/2.8"CMOS sensor
- 5MP (2592*1944):@ 30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Built-in 2 Mic, Supports the detection of sounds over longer distances
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Smart IR, up to 10m (33ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP66 protection
- Support PoE power supply
| IPC815SB-ADF14K-I0 | |||||
| Camera | |||||
| Image sensor | 1/2.8", progressive scan, 5.0 megapixel, CMOS | ||||
| Minimum Illumination | Colour: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR | ||||
| Day/Night | IR-cut filter for day & night function | ||||
| Shutter | Auto/Manual, shutter time: 1~1/100000 s | ||||
| WDR | 120dB | ||||
| S/N | >55dB | ||||
| Lens | |||||
| Lens type | 1.4mm@F2.0 | ||||
| Angle of View | 360° | ||||
| DORI | |||||
| DORI Distance | Lens | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 1.4mm | 31.5 | 12.6 | 6.3 | 3.2 | |
| Illuminator | |||||
| IR Range | UP to 10m (33ft) | ||||
| wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream: 5MP (2592*1944): Max.30fps; Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-code | Support | ||||
| ROI | Up to 8 areas | ||||
| Video Stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/ Flip Horizontal/180° | ||||
| Dewarping | N/A | ||||
| HLC | N/A | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Audio | |
| Audio Compression | G.711 |
| Audio Bitrate | 64 Kbps |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |
| Live View Display | |
| Mount Type | Support table, wall, and ceiling |
| Decoding Mode | Support software decoding |
| Display Mode | 11 display modes in total Software decoding: Ceiling mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ Wall mount: fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ Table mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ |
| Interface | |
| Audio I/O | Input: impedance 35 kΩ; amplitude 2 V [p-p] |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 1/1 |
| RS485 | N/A |
| Built-in Mic | Supported 2 |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet |
| Video Output | N/A |
| Certifications | |
| EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
| Safety | IEC 62368-1 |
| DATASHEET | |
EN 62368-1 UL 62368-1 | |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
| General | |
| Power | DC12V±25%,PoE (IEEE 802.3af) |
| Power consumption: Max. 8.5W | |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (Φ × H) | Φ125 × 43.7 mm (Φ4.9" × 1.7") |
| Weight | 0.36kg (0.79lb) |
| Material | Metal + Plastic |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| surge protection | 4KV |
| Reset Button | Supported |
| Protection | Ingression protection: IP66 Vandal resistant: IK10 |
