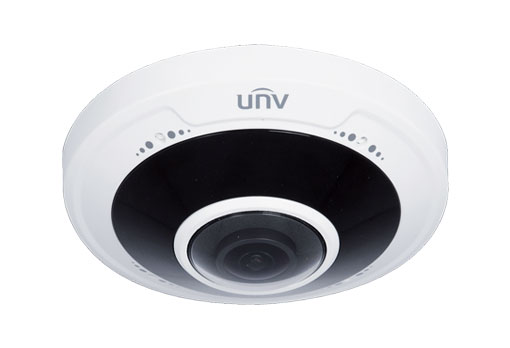

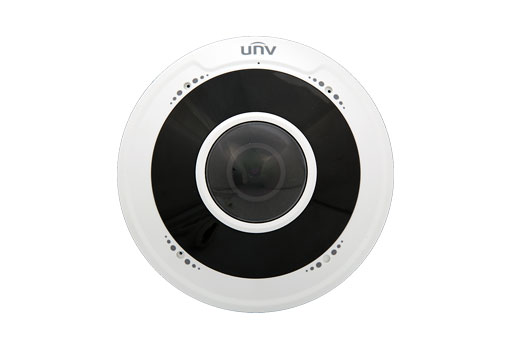

Uniview - IPC815SR-DVPF14 - 5MP Fisheye Fixed Dome Network Camera
Part number:
IPC815SR-DVPF14
Price:
UNV 5MP Network IR Fisheye Dome (1.4mm, 10m IR, SD Slot, PoE, RJ45, Omnidirectional MicroPhone, Full Cable)
Features:
Optics
- Ultra wide angle lens, 360° panoramic image
- Smart IR, Up to 10 m (33ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265, H.265, H.264, MJPEG
- Built-in omni directional microphone (IPC815SR-DVPF14)
- Triple stream
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Wide temperature range: -40°C to 60°C (-40°F to 140°F)
- Wide voltage range of ±25%
- IK10
- IP66
| IPC815SR-DVPF14 | IPC815SR-DVSPF14 | |||||
| Camera | ||||||
| Image sensor | 1/2.8", progressive scan, 5.0 megapixel, CMOS | |||||
| Lens | 1.4mm@F2.0 | |||||
DORI Distance | Lens | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 1.4mm | 31.5 | 12.6 | 6.3 | 3.2 | ||
| Angle of View | 360° | |||||
| Shutter | Auto/Manual, shutter time: 1~1/100000 s | |||||
Minimum Illumination | Colour: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR | |||||
| Day/Night | IR-cut filter for day & night function | |||||
| S/N | >55dB | |||||
| IR Range | UP to 10m (33ft) | |||||
| wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
| Video | ||||||
| Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||
Frame Rate | Main Stream: (2592×1944): Max.30fps; Sub Stream: (1920×1080): Max.30fps; Third Stream: D1(720 x 576): Max.30 fps | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| OSD | Up to 8 OSDs | |||||
| ROI | Up to 8 areas | |||||
| Privacy Mask | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Flip Vertical/ Flip Horizontal/180° | |||||
| Dewarping | N/A | |||||
| HLC | N/A | |||||
| BLC | Support | |||||
