Uniview - IPC86CEB-AF18KC-I0 - UNV 4K Fisheye
Part number:
IPC86CEB-AF18KC-I0
Price:

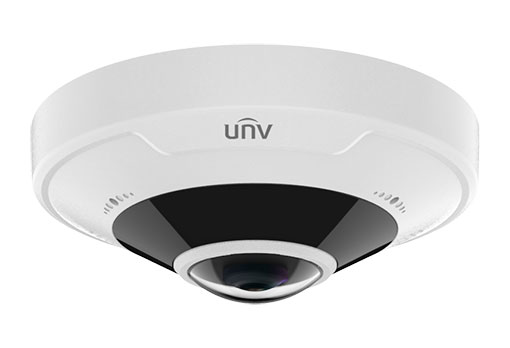

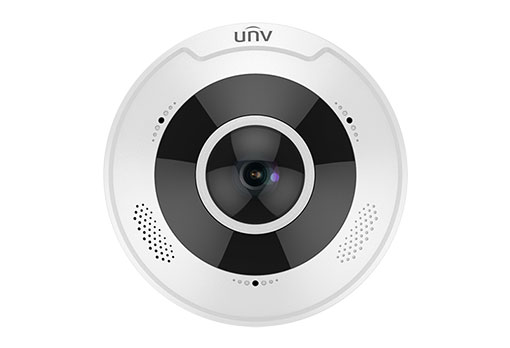

12MP Ultra HD Infrared Vandal-resistant Fisheye Fixed Dome Camera
Features:
- High quality image with 12MP,1/1.7’’ CMOS sensor
- Max 4000*3000 resolution
- Ultra265, H.265, H.264, MJPEG
- Ultra wide angle lens, 360°panoramic image
- Embedded infrared light, 360°fill-in light, up to 15m (49ft) IR distance
- Multiple decoding modes, supports software and hardware modes, provides interactive dynamic view
- Heat map, based on deep learning algorithms, the date of moving objects is counted in real time on an
- intuitive color map
- Built-in microphone & speaker, two-way talk supported
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
| IPC86CEB-AF18KC-I0 | |||||
| Camera | |||||
| Sensor | 1/1.7", 12.0 megapixel, progressive scan, CMOS | ||||
| Minimum Illumination | Colour: 0.03Lux (F2.0, AGC ON) 0Lux with IR | ||||
| Day / Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | ||||
| WDR | DWDR | ||||
| S/N | >52dB | ||||
| Lens | |||||
| Lens type | 1.8mm@F2.0 | ||||
| Field of View | 360° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 1.8 | 43.8 | 17.5 | 8.8 | 4.4 | |
| Illuminator | |||||
| IR Range | Up to 15m (49ft) IR range | ||||
| wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Compression | Ultra265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Main Stream | Fisheye View: 12MP(4000*3000)@20fps;3000*3000@20fps; 2560*2560@25fps; Panorama View: 12MP(4000*3000)@20fps;3000*2000@20/25fps; 3000*1500@20/25fp; PTZ View: 1920*1080@20/25fps; | ||||
| Sub Stream | Fisheye View:2000*1500@20fps;2000*2000@25fps | ||||
| Third Stream | Fisheye View:D1(720*576)@20/25fps;CIF352*288)@20/25fps; | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-code | Support | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Video stream | Triple streams | ||||
| Live View Display | |||||
| Mount Type | Support table, wall, and ceiling | ||||
| Hardware Decoding | Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view、vertical panorama view Table mount: fisheye view, fisheye + 4PTZ, , horizontal panorama view、vertical panorama view Wall mount: fisheye view, fisheye + 4PTZ, panorama view | ||||
| Software Decoding | Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ Wall mount: fisheye view, 180° panorama view, 180° panorama view+3PTZ, 180° panorama view+4PTZ, 180° panorama view+8PTZ | ||||
