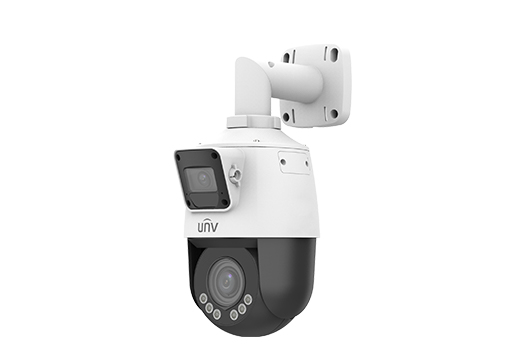

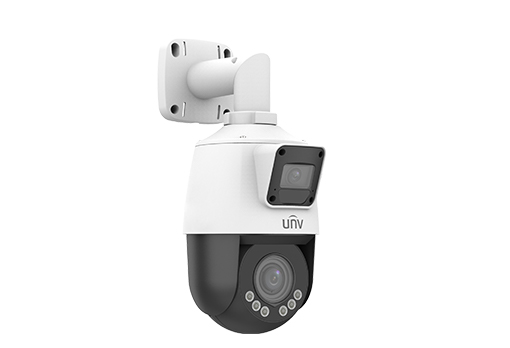

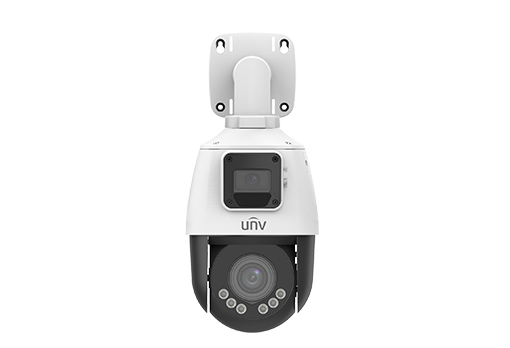

Uniview - IPC9312LFW-AF28-2X4 - UNV 2MP Dual Lens PTZ
Part number:
IPC9312LFW-AF28-2X4
Price:
2MP+2MP 4X ColorHunter MultiView Dual-light Network PTZ Camera
Features:
- Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time
- High quality image with 2MP, 1/2.8" CMOS sensor
- 1920 x 1080 @25 fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- 4X optical zoom of PTZ channel allows for closer viewing of subjects
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- PTZ channel can be linked by fixed channel’ smart intrusion prevention to track the objects triggering the rule
- Lighthunter technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Built-in 2*mic & high-power speaker, support two-way audio, has better sound performance
- Support ceiling mount and wall mount
- IR & warm light illumination to deal with different scenes and achieve full-color illumination
- DC12V or PoE+ (IEEE 802.3at) power supply
| IPC9312LFW-AF28-2X4 | |||
| Channel | Channel 1 (Panorama) | Channel 2 (Detail) | |
| Camera | |||
| Sensor | 1/2.8" CMOS | 1/2.8" CMOS | |
| Min. Illumination | Color: 0.002 lux (F1.6, AGC ON) 0 lux with IR | Color: 0.002 lux (F1.6, AGC ON) 0 lux with IR/Warm light | |
| Day/Night | IR-cut filter with auto switch (ICR) | IR-cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | Auto/Manual, 1 ~ 1/100000s | |
| WDR | 120dB | DWDR | |
| S/N | >52dB | >52dB | |
| Lens | |||
| Focal Length | 2.8 mm | 2.8 ~ 12 mm | |
| Optical Zoom | N/A | 4X | |
| Iris | F1.6 | F1.6 | |
| Field of View (H) | 102.4° | 106.6° ~ 30.6° | |
| Field of View (V) | 54.9° | 56.5° ~ 17.4° | |
| Field of View (D) | 133.1° | 138.6° ~ 37.6° | |
| DORI | |||
| DORI Distance (Detect) | 43.4 m (142.5 ft) | 43.4 m ~ 162.9 m (142.5 ft ~ 534.6 ft) | |
| DORI Distance (Observe) | 17.4 m (57.0 ft) | 17.4 m ~ 65.2 m (57.0 ft ~ 213.8 ft) | |
| DORI Distance (Recognize) | 8.7 m (28.5 ft) | 8.7 m ~ 32.6 m (28.5 ft ~ 106.9 ft) | |
| DORI Distance (Identify) | 4.3 m (14.3 ft) | 4.3 m ~ 16.3 m (14.3 ft ~ 53.5 ft) | |
| Illuminator | |||
| Illumination Distance (IR) | 10 m (32.8 ft) | 50 m (164.0 ft) | |
| Illumination Distance (Warm Light) | N/A | 10 m (32.8 ft) | |
| Wavelength | 850 nm | 850 nm | |
| Light On/Off Control | Auto/Manual | Auto/Manual | |
| Image | |||
| Defog | Digital Defog | Digital Defog | |
| White Balance | Auto|Outdoor|Fine Tune|Sodium Lamp|Locked|Auto2 | Auto|Outdoor|Fine Tune|Sodium Lamp|Locked|Auto2 | |
| Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR | |
| Smart IR | Support | Support | |
| Flip | Normal|Flip Vertical|Flip Horizontal|180° | Normal|Flip Vertical|Flip Horizontal|180° | |
| HLC | Support | Support | |
| BLC | Support | Support | |
| Intelligent | |||
| Linkage Function | Support. Triggered by fixed lens via smart intrusion prevention function to track target | Support. Triggered by fixed lens via smart intrusion prevention function to track target | |
| Smart Intrusion Prevention | Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | N/A | |
| Video | |||
| Frame Rate-Main Stream | 2MP (1920 x 1080) @25 fps (Default) 2MP (1920 x 1080), Max 25 fps 720P (1280 x 720), Max 25 fps | 2MP (1920 x 1080) @25 fps (Default) 2MP (1920 x 1080), Max 25 fps 720P (1280 x 720), Max 25 fps | |
| Frame Rate-Sub Stream | 720P (1280 x 720), Max 25 fps D1 (720 x 576), Max 25 fps 640 x 360, Max 25 fps 2CIF (704 x 288), Max 25 fps CIF (325 x 288), Max 25 fps | 720P (1280 x 720), Max 25 fps D1 (720 x 576), Max 25 fps 640 x 360, Max 25 fps 2CIF (704 x 288), Max 25 fps CIF (325 x 288), Max 25 fps | |
| Privacy Mask | 24 areas, up to 4 areas per scene | 24 areas, up to 4 areas per scene | |
| Video Compression | Ultra 265|H.265|H.264|MJPEG | Ultra 265|H.265|H.264|MJPEG | |
| Video Bit Rate | 128 Kbps ~ 16 Mbps | 128 Kbps ~ 16 Mbps | |
| U-code | Support (Main stream) | Support (Main stream) | |
| ROI | Support | Support | |
| Video Stream | Dual Streams | Dual Streams | |
| OSD | Up to 4 OSDs | Up to 4 OSDs | |
| Events | |||
| Basic Detection | Motion Detection|Audio Detection | Motion Detection|Audio Detection | |
| General Function | Watermark|IP Address Filtering|Access Policy|ARP Protection|RTSP Authentication|User Authentication | Watermark|IP Address Filtering|Access Policy|ARP Protection|RTSP Authentication|User Authentication | |
| PTZ | |||
| Pan Range | N/A | 0° ~ 345° | |
| Pan Speed | N/A | 1°/s ~ 40°/s | |
| Tilt Range | 18° ± 5° | -10° ~ 100° | |
| Tilt Speed | N/A | 2°/s ~ 50°/s | |
| Number of Presets | N/A | 256 | |
| Preset Patrol | N/A | 16 patrols, up to 64 presets for each patrol | |
| Patrol Stay Time | N/A | 1000s ~ 1800s | |
| Home Position | N/A | Support | |
| Audio | |||
| Audio Compression | G.711U|G.711A | G.711U|G.711A | |
| Audio Bitrate | 128 Kbps | 128 Kbps | |
| Two-way Audio | Support | Support | |
| Suppression | Support | Support | |
| Sampling Rate | 16KHz | 16KHz | |
| Storage | |||
| Edge Storage | Micro SD, up to 512 GB | Micro SD, up to 512 GB | |
| Network Storage | ANR|NAS (NFS) | ANR|NAS (NFS) | |
| Network | |||
| Protocols | SSH|IGMP|RTP|RTCP|SMTP|IPv4|IPv6|ICMP|ARP|TCP|UDP|DHCP|PPPoE|RTSP|RTMP|DNS|DDNS|NTP|FTP|UPnP|HTTP|HTTPS|802.1x|SNMP|QoS|SSL/TLS | SSH|IGMP|RTP|RTCP|SMTP|IPv4|IPv6|ICMP|ARP|TCP|UDP|DHCP|PPPoE|RTSP|RTMP|DNS|DDNS|NTP|FTP|UPnP|HTTP|HTTPS|802.1x|SNMP|QoS|SSL/TLS | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile M)|API|SDK | ONVIF (Profile S, Profile G, Profile M)|API|SDK | |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | Up to 32 users. 3 user levels: administrator, common user and operator | |
| Security | TLS1.3|Password Protection|Strong Password|HTTPS Encryption|Export Operation Logs|Basic and Digest Authentication for RTSP|Digest Authentication for HTTP|TLS 1.2|WSSE and Digest Authentication for ONVIF | TLS1.3|Password Protection|Strong Password|HTTPS Encryption|Export Operation Logs|Basic and Digest Authentication for RTSP|Digest Authentication for HTTP|TLS 1.2|WSSE and Digest Authentication for ONVIF | |
| Client | EZStation|UNV-Link|UNV-Link Pro | EZStation|UNV-Link|UNV-Link Pro | |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |
| Interface | |||
| Built-in Mic | Built-in two mics | Built-in two mics | |
| Built-in Speaker | Support | Support | |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | 1 x RJ45 10M/100M Base-TX Ethernet | |
| Certification | |||
| EMC | CE-EMC (EN55032:2015; EN55024:2010+A1:2015; EN61000-3-2:2014; EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | CE-EMC (EN55032:2015; EN55024:2010+A1:2015; EN61000-3-2:2014; EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |
| Safety | CE LVD (EN 62368-1:2014+A11:2017; EN 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | CE LVD (EN 62368-1:2014+A11:2017; EN 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |
| Environment | CE-ROHS (2011/65/EU) | CE-ROHS (2011/65/EU) | |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |
| General | |||
| Power | DC12V, PoE+ (IEEE 802.3at) | DC12V, PoE+ (IEEE 802.3at) | |
| Power Consumption | MAX 16W | MAX 16W | |
| Power Interface | Ø 5.5 mm coaxial power plug | Ø 5.5 mm coaxial power plug | |
| Dimensions | Wall Mount: 192 x 134 x 302 mm (7.6" x 5.3" x 11.9") (L x W x H) Ceiling Mount: 154 x 134 x 363 mm (6.1" x 5.3" x 14.3") (L x W x H) | Wall Mount: 192 x 134 x 302 mm (7.6" x 5.3" x 11.9") (L x W x H) Ceiling Mount: 154 x 134 x 363 mm (6.1" x 5.3" x 14.3") (L x W x H) | |
| Weight | 1.03 kg (2.27 lb) | 1.03 kg (2.27 lb) | |
| Working Environment | -20 °C ~ 60 °C (-4 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | -20 °C ~ 60 °C (-4 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |
| Storage Environment | -30 ℃ ~ 70 ℃ (-22 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) | -30 ℃ ~ 70 ℃ (-22 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) | |
| Surge Protection | 2KV | 2KV | |
| Reset Button | Support | Support | |
| Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |
