Uniview - KIT/NVR301-08S4-LW/4*IPC2122LB-AF28WK-WF - UNV 1+4 WiFi Bullet Kit 2.8mm
Part number:
KIT/NVR301-08S4-LW/4*IPC2122LB-AF28WK-WF
Price:

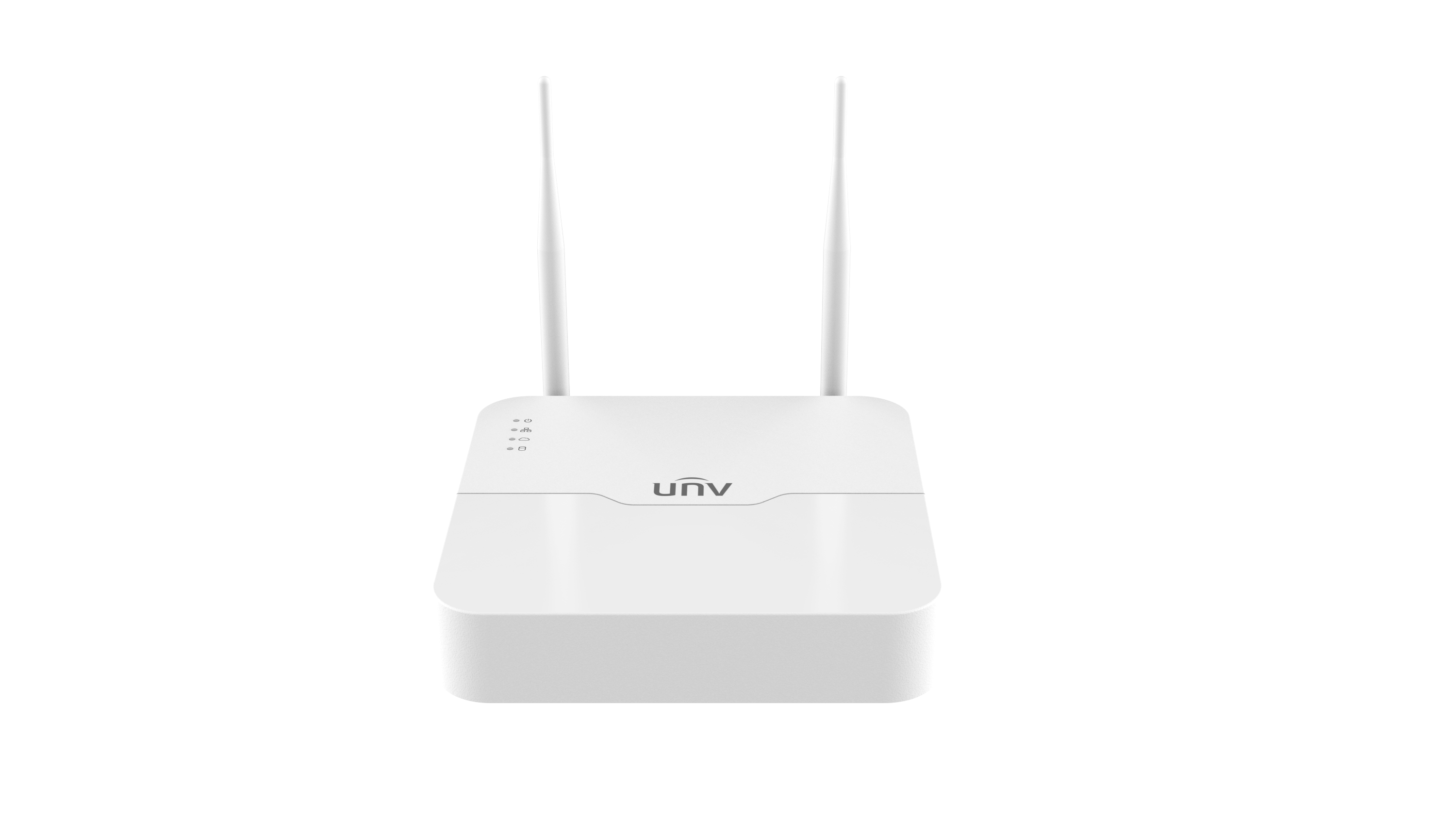

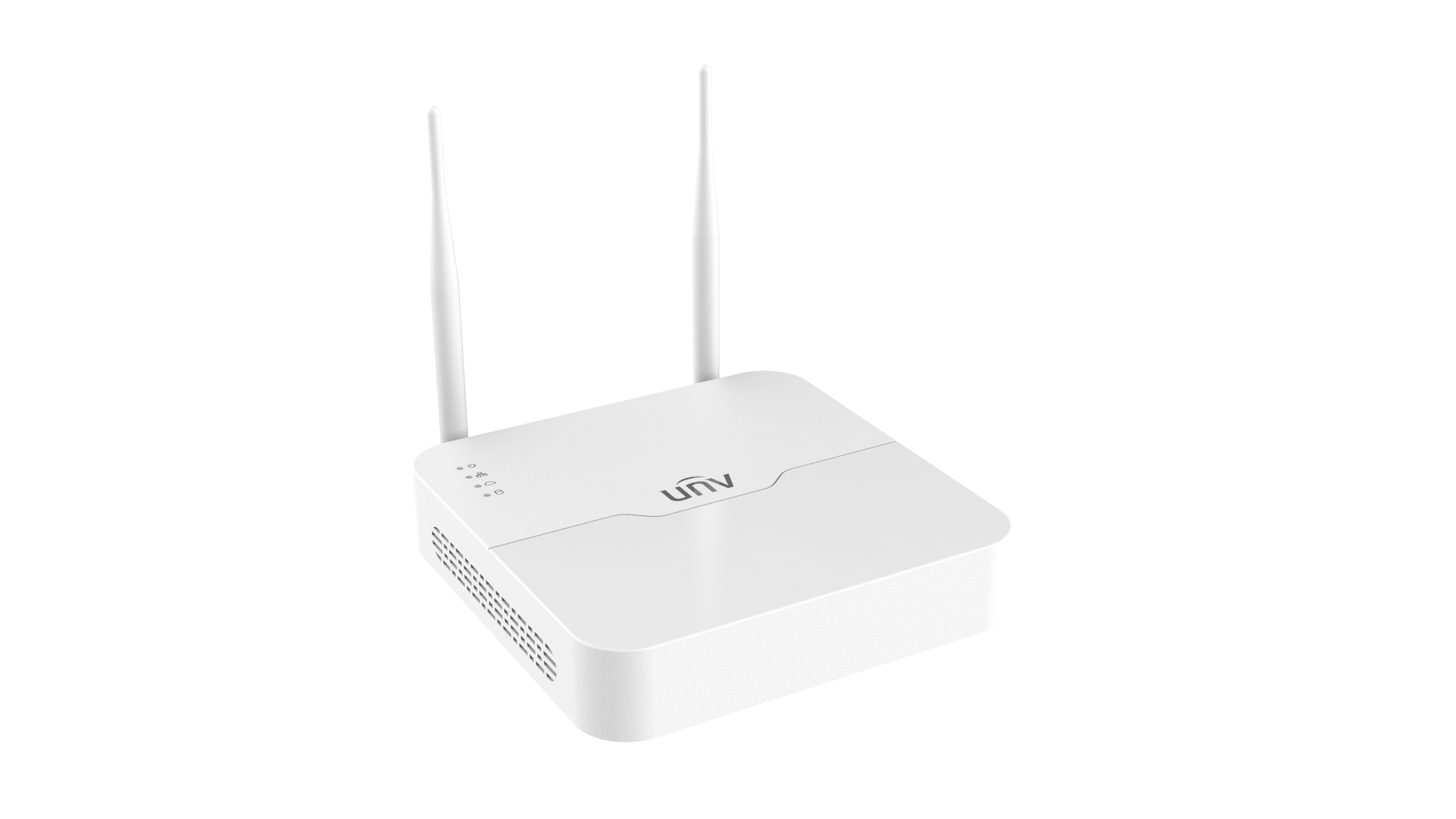

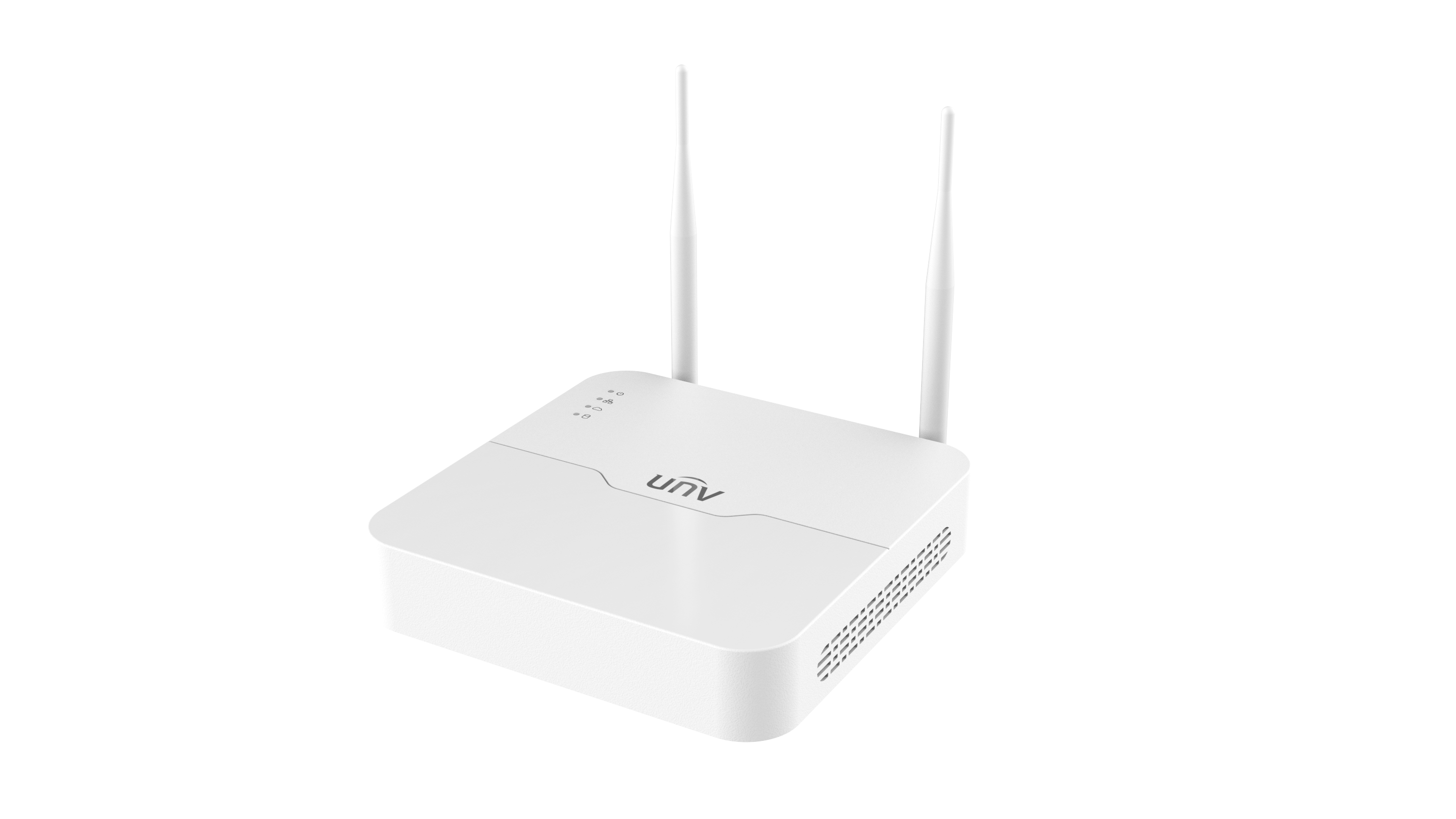

1 Hard Disk 8-Channel NVR Kit(WiFi,Including 4 PCS Mini Bullet Camera)
Features:
- High quality image with 2MP, 1/3.0" CMOS sensor
- 2MP (1920*1080)@25fps; 720P (1280*720)@25fps
- Ultra 265, H.265, H.264
- Built in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 512 G Micro SD card
- IP67 protection
- 3 Axis
| KIT/NVR301-08S4-LW/4*IPC2122LB-AF28WK-WF | |
| Camera | |
| Max Resolution | 2 MP |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Colour: 0.01 lux (F2.0 AGC ON) 0 lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| S/N | > 52 dB |
| WDR | DWDR |
| Lens | |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F2.0 |
| Field of View (H) | 94.0° |
| Field of View (V) | 52.4° |
| Field of View (D) | 106.5° |
| Lens Type | Fixed |
| DORI | |
| DORI Distance (Lens) | 2.8mm |
| DORI Distance (Detect) | 46.7m(153.1ft) |
| DORI Distance (Observe) | 18.7m(61.2ft) |
| DORI Distance (Recognize) | 9.3m(30.6ft) |
| DORI Distance (Identify) | 4.7m(15.3ft) |
| Illuminator | |
| Supplemental Light | IR |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 25fps; 720P (1280*720), Max 25fps Sub Stream: 640*360,Max 25fps; 2CIF(704*288), Max 25fps; CIF(352*288), Max 25fps |
| Video Bit Rate | 128 Kbps to 2048 Kbps |
| U-code | Support |
| OSD | Up to 2 OSDs |
| Privacy Mask | Support (only NVR) |
| ROI | Up to 8 areas |
| Video Stream | Dual streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| Dewarping | N/A |
| HLC | N/A |
| BLC | Support |
| Defog | Digital defog |
| Events | |
| Basic Detection | Motion detection, Ultra motion detection |
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP |
| Compatible Integration | API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2 |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Wi-Fi | |
| Wireless Standards | IEEE802.11b/g/n/ax |
| Frequency Range | 2.4 GHz to 2.4835 GHz |
| Channel Bandwidth | 20/40 MHz Support |
| Modulation Mode | 802.11b: CCK 802.11g/n: OFDM 802.11ax: OFDMA |
| Wi-Fi Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK |
| Transmit Power | 802.11b: 17±1.5 dBm@11 Mbps802.11g: 16±1.5 dBm@54 Mbps802.11n: 16±1.5 dBm@MCS7802.11ax: 16±1.5 dBm@MCS9 |
| Receive Sensitivity | 802.11b: -76 dBm@11 Mbps (Typical)802.11g: -65 dBm@54Mbps (Typical)802.11n: -61 dBm@MCS7, HT40 (Typical)802.11ax: -54 dBm@MCS9, HE40 (Typical) |
| Transmission Rate | 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps802.11ax: up to 270 Mbps |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
| RF | FCC ID (FCC CFR 47 part15 C)CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) |
| Safety | CE LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12V±25% |
| Power Consumption | Max 3.5W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 160 × 76 ×72 mm (6.3” × 3.0” × 2.8”) (L x W x H) |
| Weight | 0.25 kg (0.55 lb) |
| Material | Metal + Plastic |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| LED Indicator | 1, red/green |
| Surge Protection | 4 KV |
| Reset Button | Support |
| Web Client Language | 1 Language: English |
