Uniview - KIT/XVR301-04G3/4*UAC-T122-AF28M - Metal
Part number:
KIT/XVR301-04G3/4*UAC-T122-AF28M
Price:

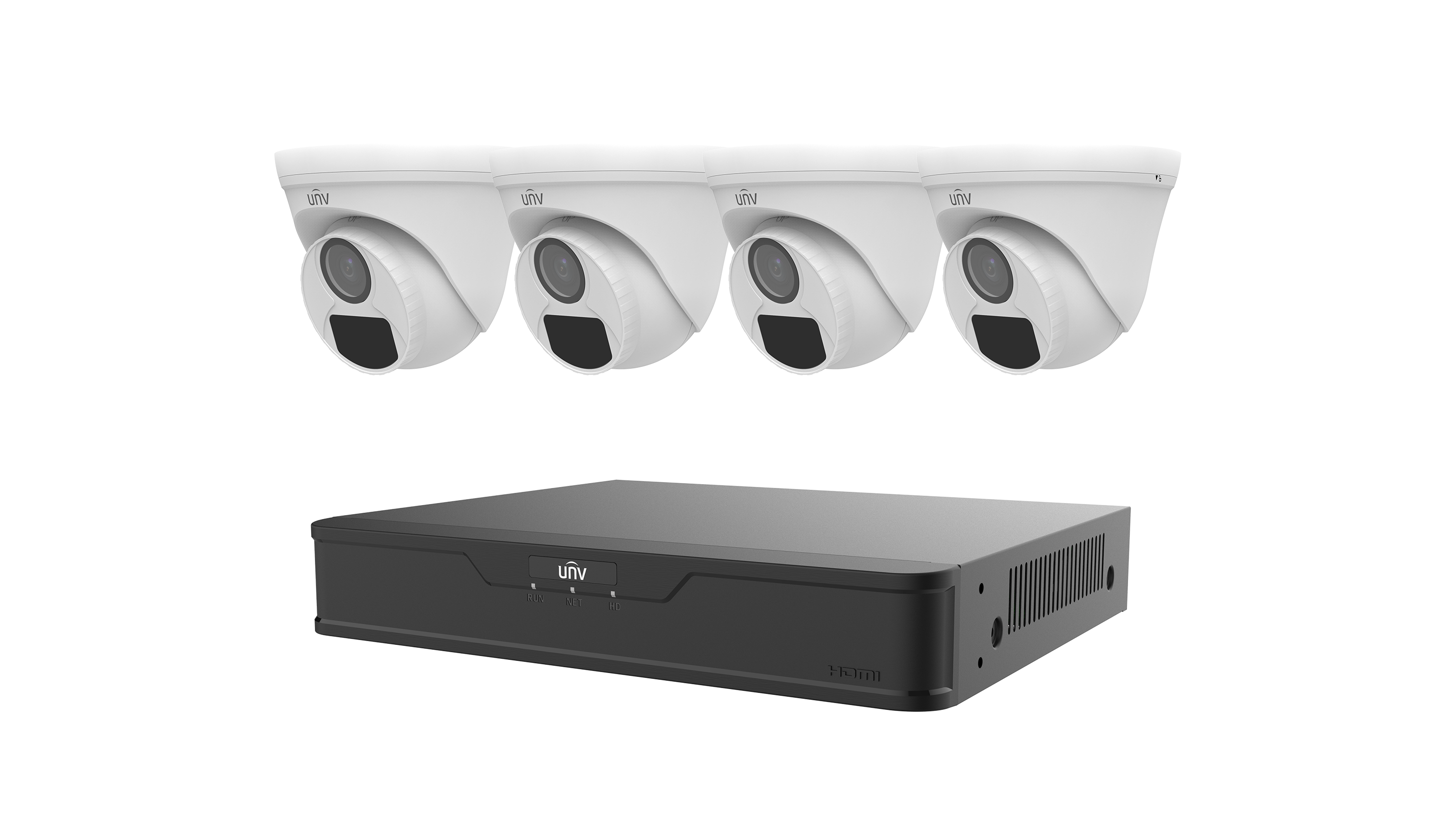

1 Hard Disk 4-Channel DVR Kit(Including 4 PCS Analog Turret Camera)
Features:
- 2MP high quality image
- TVI/AHD/CVI/CVBS
- IR-cut filter with auto switch (ICR)
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- 3-Axis
| UAC-T112-F28 | UAC-T112-F40 | |
| Camera | ||
| Max Resolution | 2 MP | |
| Sensor Size | 1/3.0" CMOS | |
| Min. Illumination | 0.02 lux (F2.0, AGC ON) 0 lux (IR on) | |
| Lens | ||
| Focus | 2.8 mm | 4.0 mm |
| Lens Mount | M12 | |
| Angle of View (H) | 90.5° | 80.2° |
| Angle of View (V) | 49.6° | 40.7° |
| Angle of View (D) | 109.5° | 90.5° |
| Illuminator | ||
| Illuminator Number | One IR illuminator | |
| Illumination Distance | 20m | |
| Lifetime | ≥ 60000 hours | |
| Video | ||
| Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) | |
| Frame Rate | TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC | |
| Shutter Time | PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s | |
| Image | ||
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR | |
| Day/Night | Three modes: Auto (default), Day, Night | |
| Digital Noise Reduction | 2D | |
| White Balance | Two modes: Auto (default), Manual | |
| WDR | DWDR | |
| Smart IR | Support | |
| Flip | Supports 180°horizontal flip, 180°vertical flip | |
| Interface | ||
| Power Interface | 5.5 mm Power Interface | |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS | |
| Operating Environment | ||
| Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Humidity | ≤ 95% RH (non-condensing) | |
| Surge Protection | 4 KV for power, 4 KV for video output interfaces | |
| General | ||
| Power | DC 12 V ± 25% | |
| Power Consumption | MAX 2.88W | |
| Mount | Wall Mount, Pole Mount, Corner Mount, Pendant Mount | |
| Dimensions | Φ118mm*96mm (diameter*height) | |
| Material | Plastic | |
| Weight | 182g(0.401lb) | |
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish | |
| Certification | ||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) | |
| Safety | CE-LVD (EN 62368-1) | |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) | |
| Protection | IP67 (IEC 60529) | |
