Uniview - KIT/XVR301-08Q3/8*UAC-T125-AF28M - Metal
Part number:
KIT/XVR301-08Q3/8*UAC-T125-AF28M
Price:
Kit of (XVR301-08Q3) 1 HDD 08-Ch 1U Digital Video Recorder / (UAC-T125-AF28(40)M) 5MP Color Hunter Fixed Warm Light Turret Analog Camera.
Features:

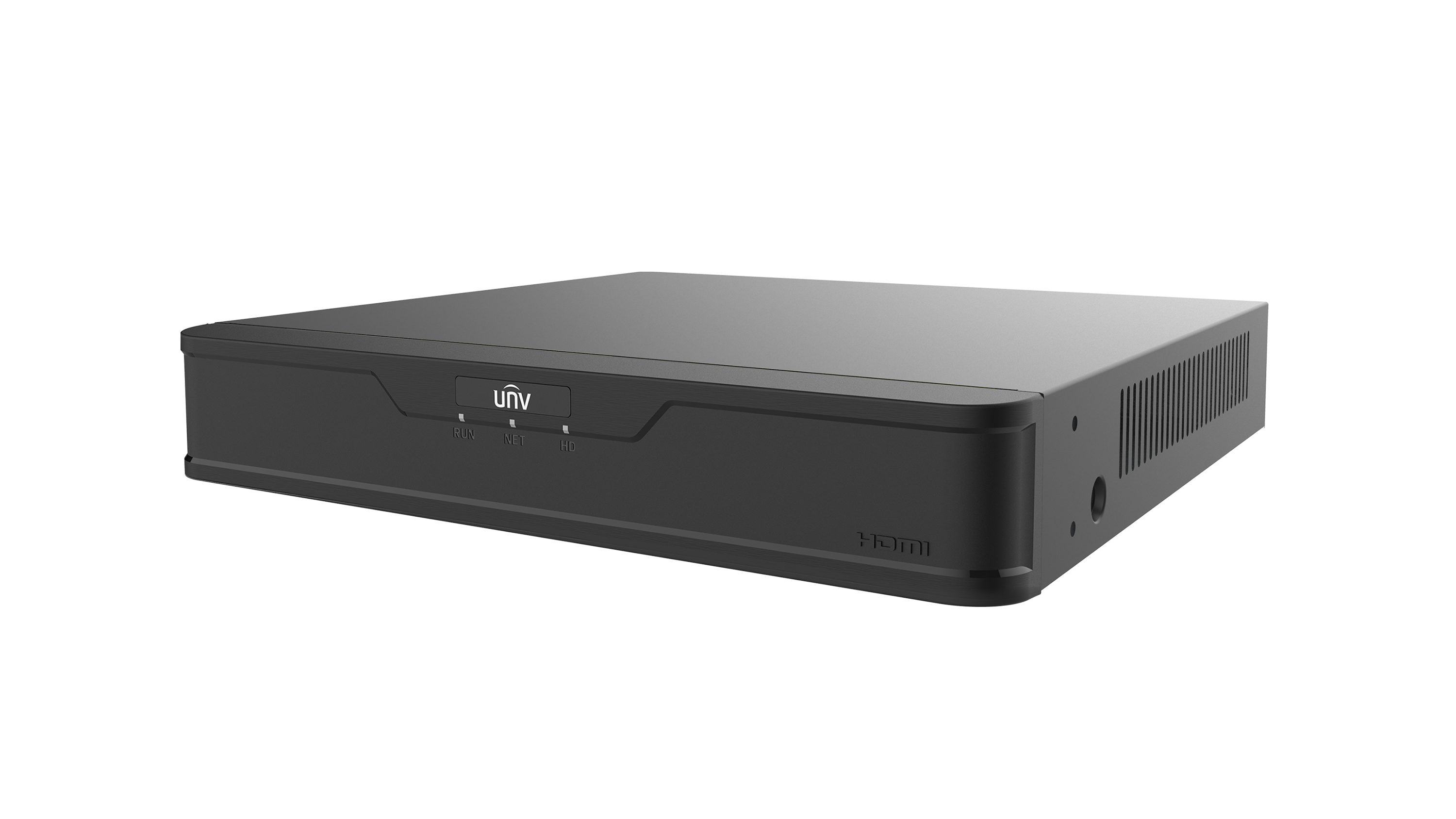

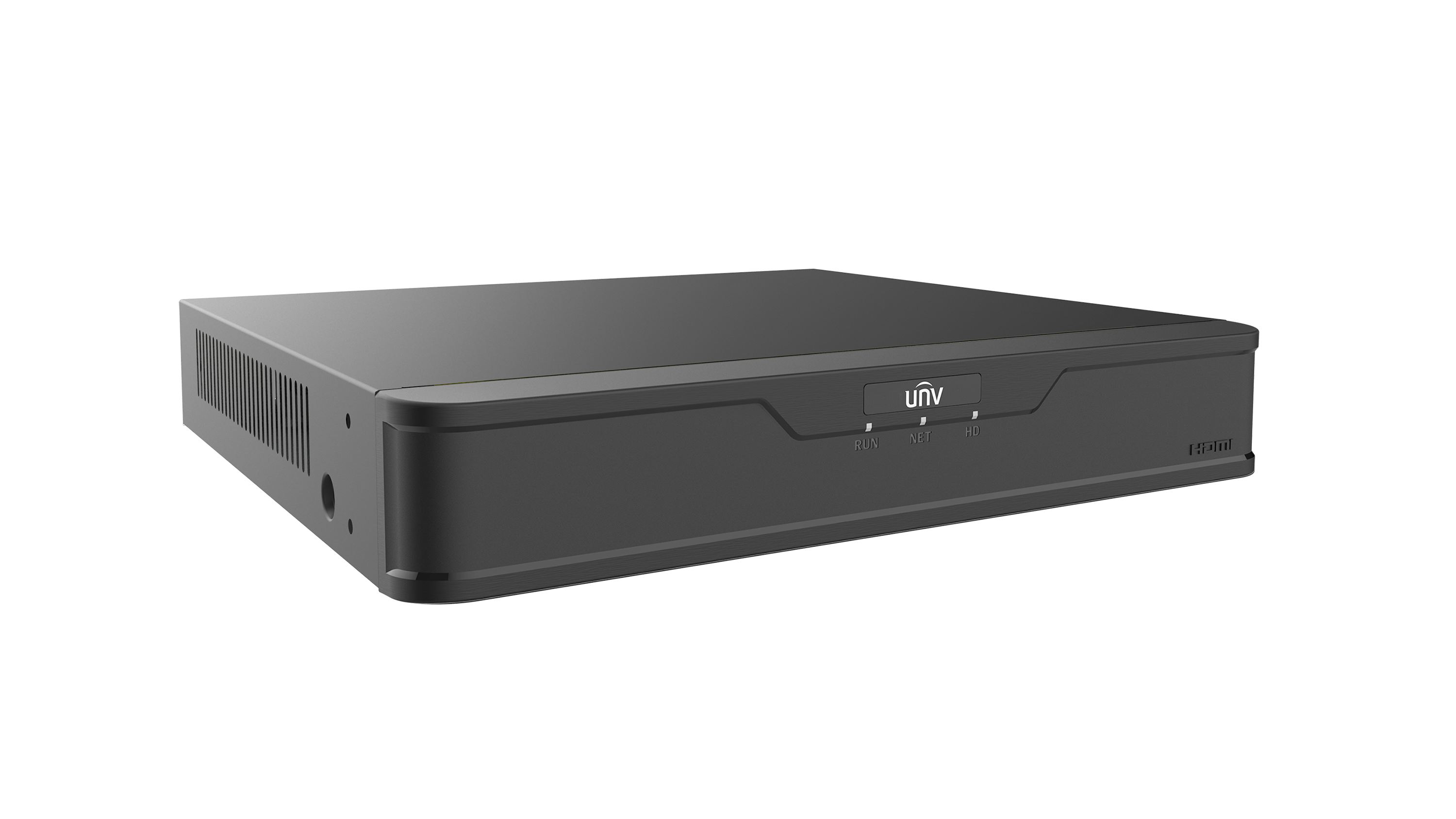

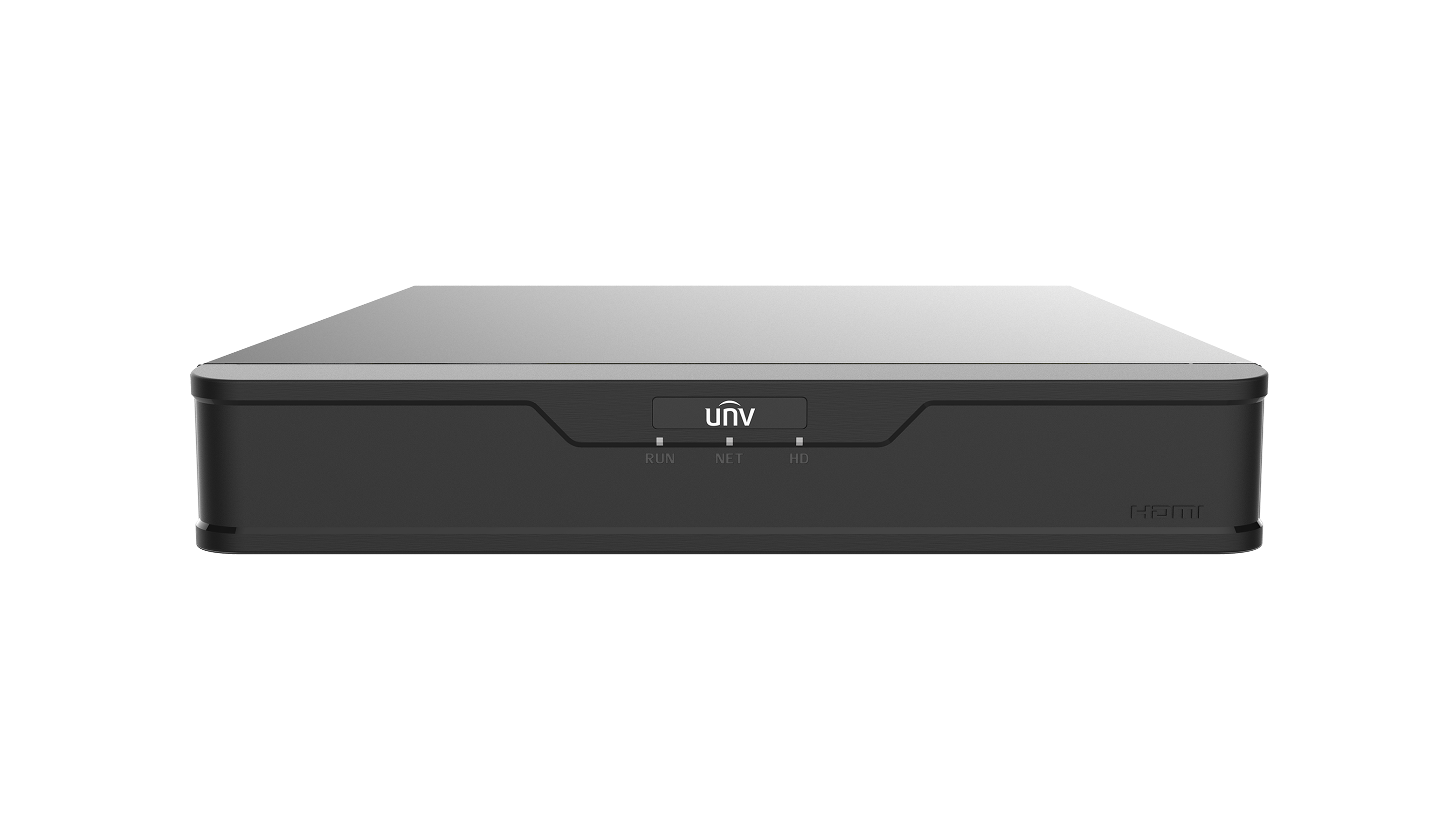

XVR301-08Q3
• Support Ultra 265/H.265/H.264 video formats
• Support audio over coaxial cable(only for TVI cameras)
• Control the dual-light of UNV analog cameras under TVI
• Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
• 16-channel BNC input
• Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
• HDMI and VGA simultaneous output
• Long transmission distance over coaxial cable
• Support mainstream cameras of ONVIF and RTSP protocols

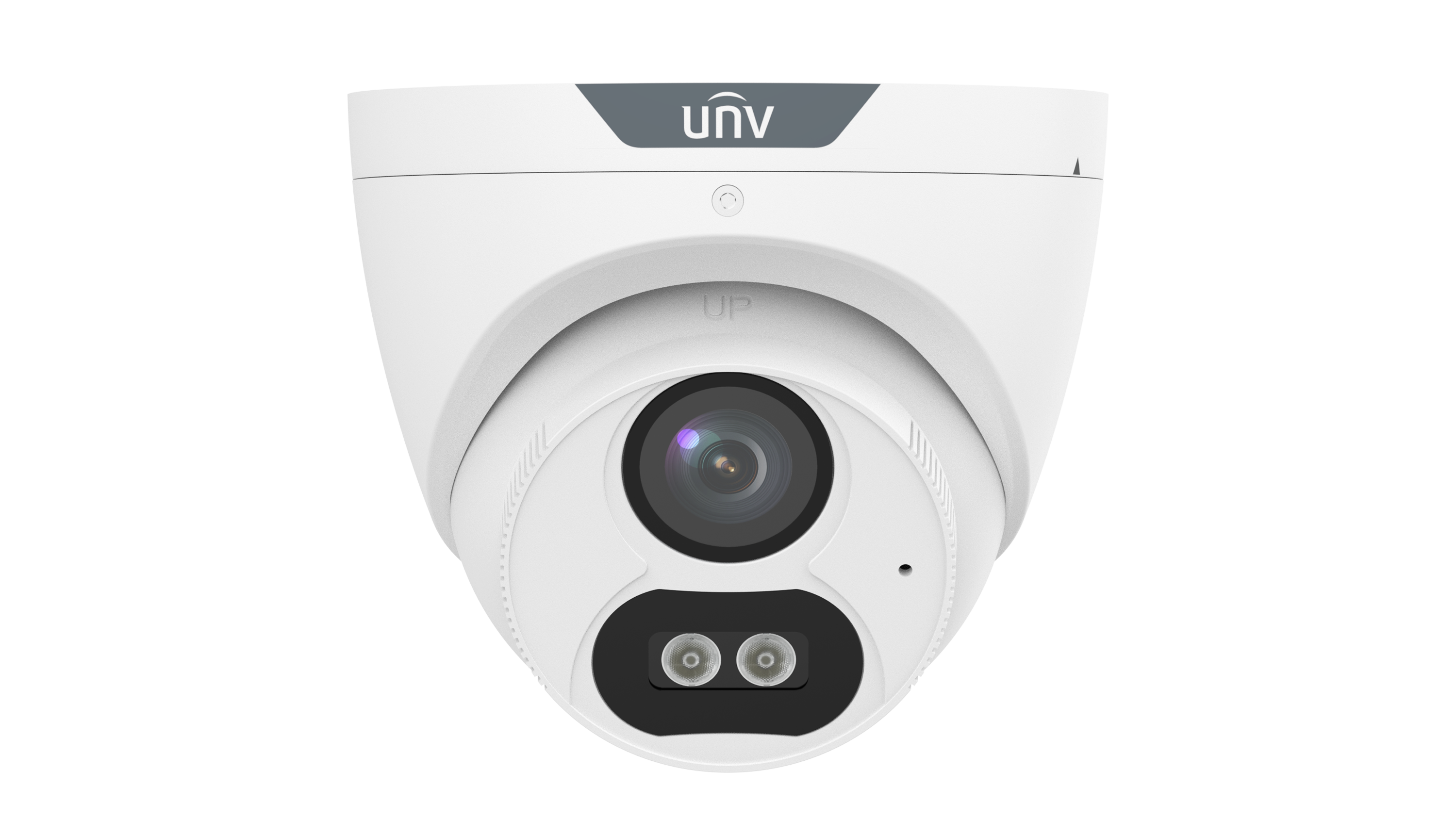

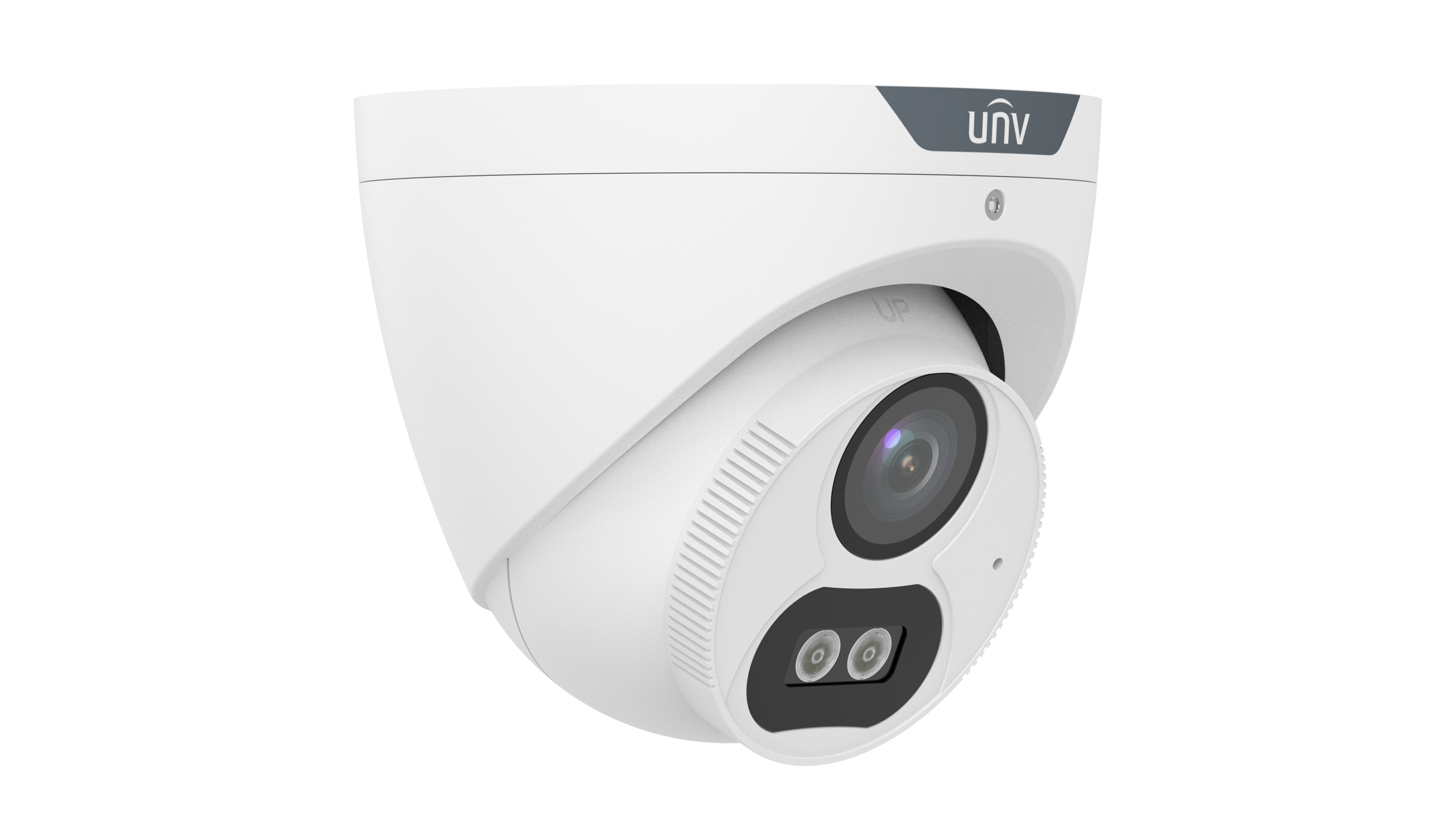

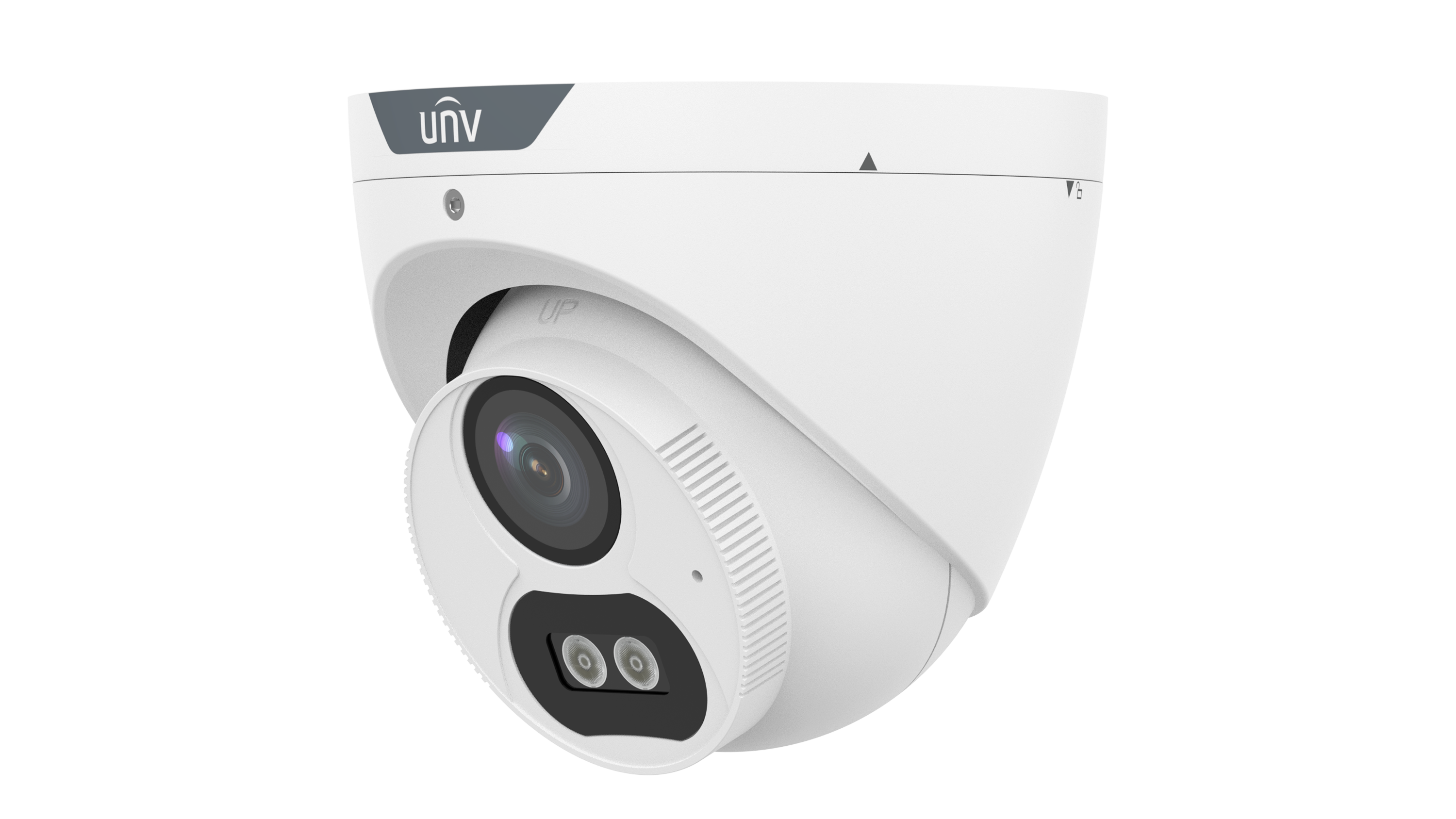

UAC-T125-AF28(40)M
• 5MP high quality imaging
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Metal front face and housing
• 3-Axis
| XVR301-08Q3 | |
| Video/Audio Input | |
| IP Video Input | 8-ch |
| Analog Video Input | 16-ch, BNC |
| Max IP Video Input | 24-ch |
| Supported Analog Camera Types | Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
| BNC Audio Input | 16-ch, channel audio |
| RCA Audio Input | 1-ch |
| Video/Audio Output | |
| HDMI Output | HDMI: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| BNC Video Output | 1-ch |
| RCA Audio Output | 1-ch |
| Live View Display | HDMI/VGA: 1/4/6/8/9/25 |
| Playback Screen | 1/4/9/16 |
| Encoding/Decoding | |
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite/1080P/720P/D1 |
| Recording Frame Rate | Main stream: 8MP Lite@8fps Sub stream: D1@8fps Main stream: 5MP Lite@12fps Sub stream: D1@12fps Main stream: 4MP Lite@15fps Sub stream: D1@15fps Main stream: 1080P@15fps Sub stream: D1@12fps Main stream: 720P@30fp Sub stream: D1@12fps |
| Audio Sample Rate | 8 kHz, 16 bit per channel |
| Audio Bit Rate | 64 Kbps per channel |
| Decoding Capability | Analog: 16 x 8MP Lite@8, 16 x 5MP Lite@12, 16 x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30 IP: 2 x 8MP@30, 3 x 5MP@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30, 24 x D1@30 |
| Num of Concurrent Playback in Local | 16-ch |
| Coaxial Cable | |
| Audio over Coaxial Cable(Form) | 16-ch, One-way Audio(TVI) |
| Two-way Audio | |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Analog Snapshot | |
| FTP/Schedule/Event Snapshot | Schedule/FTP/Event snapshot:16-ch snapshot, up to 704*576 resolution |
| Network | |
| Incoming Bandwidth | 80Mbps (Up to 112 Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Browser(Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Smart | |
| Analog Smart by XVR | Ultra Motion Detection (UMD) , SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Face Detection |
| IP Smart by IPC | Face Detection, SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area), Defocus Detection, Object Removed, Object Left Behind, Auto Tracking |
| VCA Search | Face Search, Behavior Search |
| Smart Functions by XVR | 16-ch (UMD), 4-ch (SIP) |
| Smart Functions by IP Camera | 4-ch (SIP) |
| Alarm | |
| General Alarm | Motion |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| GUI Language | |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| External Interface | |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Rear panel: 1 × USB2.0, 1 × USB3.0 |
| RS485 | 1 |
| RS232 | N/A |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| Power Supply | DC 12 V/3 A |
| Working Environment | |
| Working Temperature | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉ ) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 15W |
| Dimensions | |
| Weight (without HDD) | ≤1.1 Kg ( 2.42lb ) |
| Dimensions | 260mm ×240mm× 46mm (10.2" × 9.5"×1.8") |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
| UAC-T125-AF28M-W | UAC-T125-AF40M-W | |
| Camera | ||
| Max Resolution | 5 MP | |
| Sensor Size | 1/2.7" CMOS | |
| Min. Illumination | 0.005 lux (F1.4, AGC ON) 0 lux (white light on) | |
| Lens | ||
| Focus | 2.8 mm | 4.0 mm |
| Lens Mount | M12 | |
| Angle of View (H) | 111.5° | 89.6° |
| Angle of View (V) | 58.9° | 48.3° |
| Angle of View (D) | 134.8° | 106.4° |
| Illuminator | ||
| Illuminator Number | Two white-light illuminators | |
| Illumination Distance | 40m | |
| Lifetime | ≥ 60000 hours | |
| Video | ||
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) | |
| Frame Rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC | |
| Shutter Time | PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s | |
| Image | ||
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR | |
| Day/Night | 24/7 color images | |
| Digital Noise Reduction | 2D | |
| White Balance | Two modes: Auto (default), Manual | |
| WDR | DWDR | |
| Flip | Supports 180°horizontal flip, 180°vertical flip | |
| Digital Defog | N/A | |
| Audio | ||
| Built-in Mic | Support | |
| Camera Audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps | |
| Interface | ||
| Power Interface | 5.5 mm Power Interface | |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS | |
| Operating Environment | ||
| Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) | |
| Humidity | ≤ 95% RH (non-condensing) | |
| Surge Protection | 4 KV for power, 4 KV for video output interfaces | |
| Ingress Protection | IP67 | |
| General | ||
| Power | DC 12 V ± 25% | |
| Power Consumption | MAX 3.28W | |
| Mount | Wall Mount, Pole Mount, Corner Mount, Pendant Mount | |
| Dimensions | Φ111mm*96mm (diameter*height) | |
| Material | Metal + Plastic | |
| Weight | 356g(0.79lb) | |
