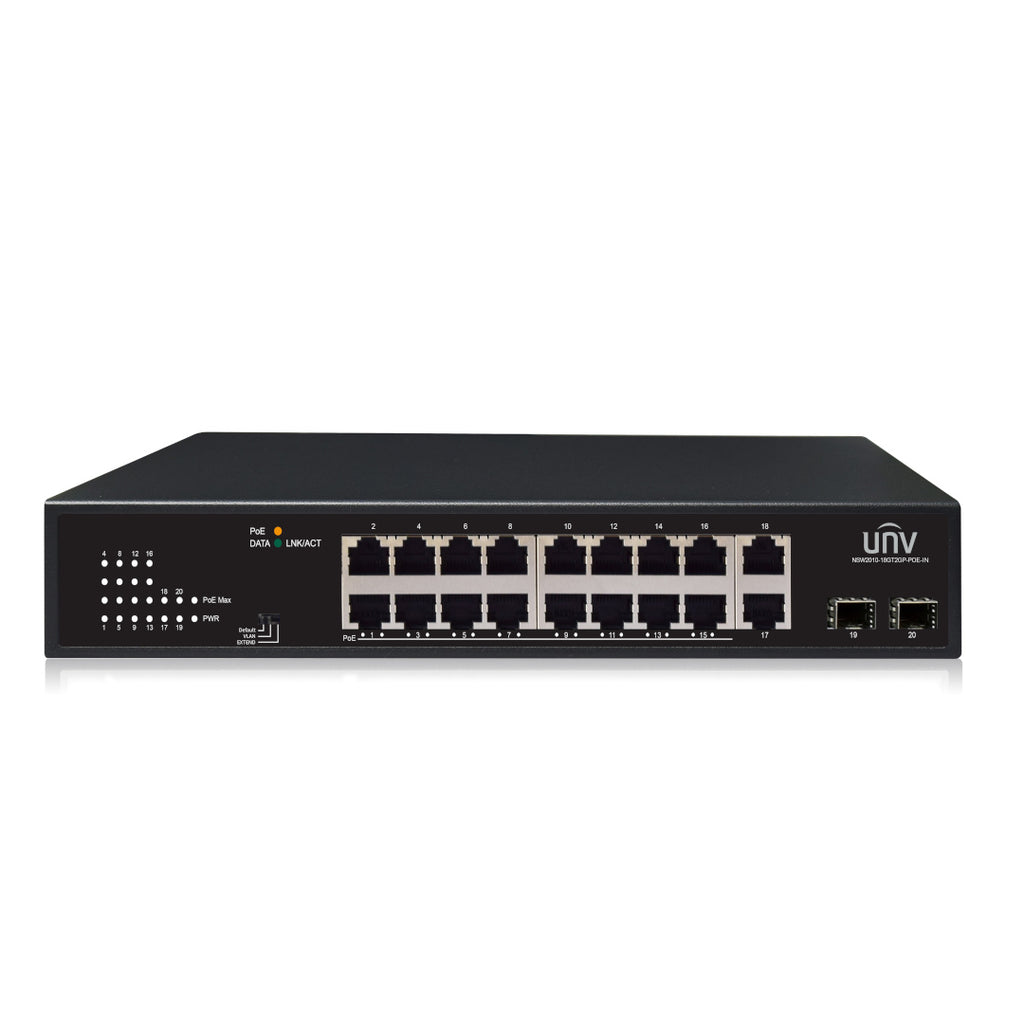

Uniview - NSW2010-18GT2GP-POE-IN - Giga 16 Port PoE Switch
Part number:
NSW2010-18GT2GP-POE-IN
Price:
UNV Giga 16 Port PoE Switch
Features:
- Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
- Supports PoE Power up to 30W for each PoE port.
- Auto detect power device. will not burned non-standard PoE device or normal PoE switch.
- Supports port power supply prioritization, guarantee the continuous power supply of key nodes.
- Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control.
- Line-speed forwarding, intelligent identification
- Supports storage – and- forward for Data exchange.
| Model | NSW2010-18GT2GP- POE-IN |
| Ports | 16×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports（SFP） |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,I EEE802.3af,IEEE802.3at,IEEE802.3az |
| Switching capacity | 40Gbps |
| Forwarding performance | 29.76Mpps |
| Packet Buffer | 4M bit |
| MAC | 8K |
| Dimensions (W×D×H) | 280mm x 180mm x 44mm (11"×7.1"×1.7") |
| Weight | <4.2kg |
| Input Voltage | AC: 100-240V, 50/60Hz |
| MAX. Power | 200W |
| PoE | 802.3at/af |
| Max. PoE Power | Max capacity: 185W Max capacity for single port: 30W |
| Cooling Fans | 1 |
| Operating Temperature | 0°C ~ 40 °C |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Indicator | PWR(Green), LNK/ACT(Green), PoE(Orange) |
| Working Mode | Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. EXTEND(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. |
