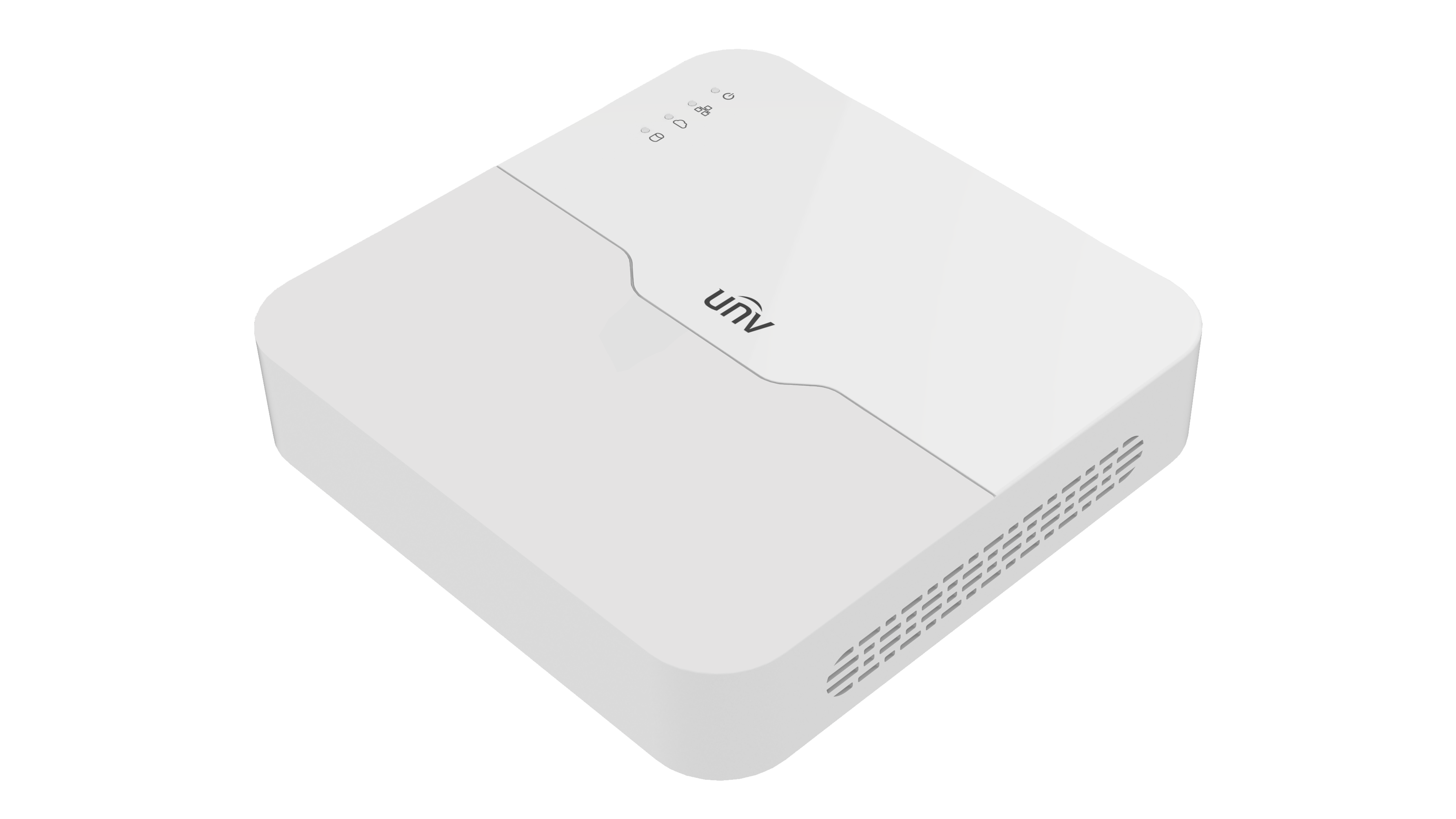

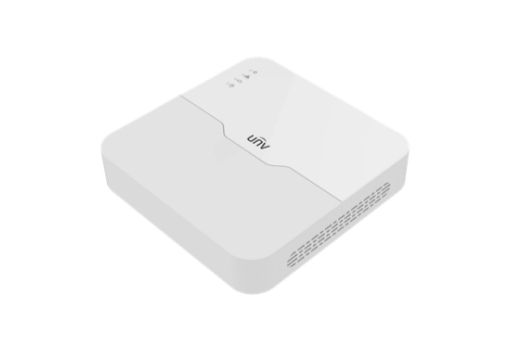

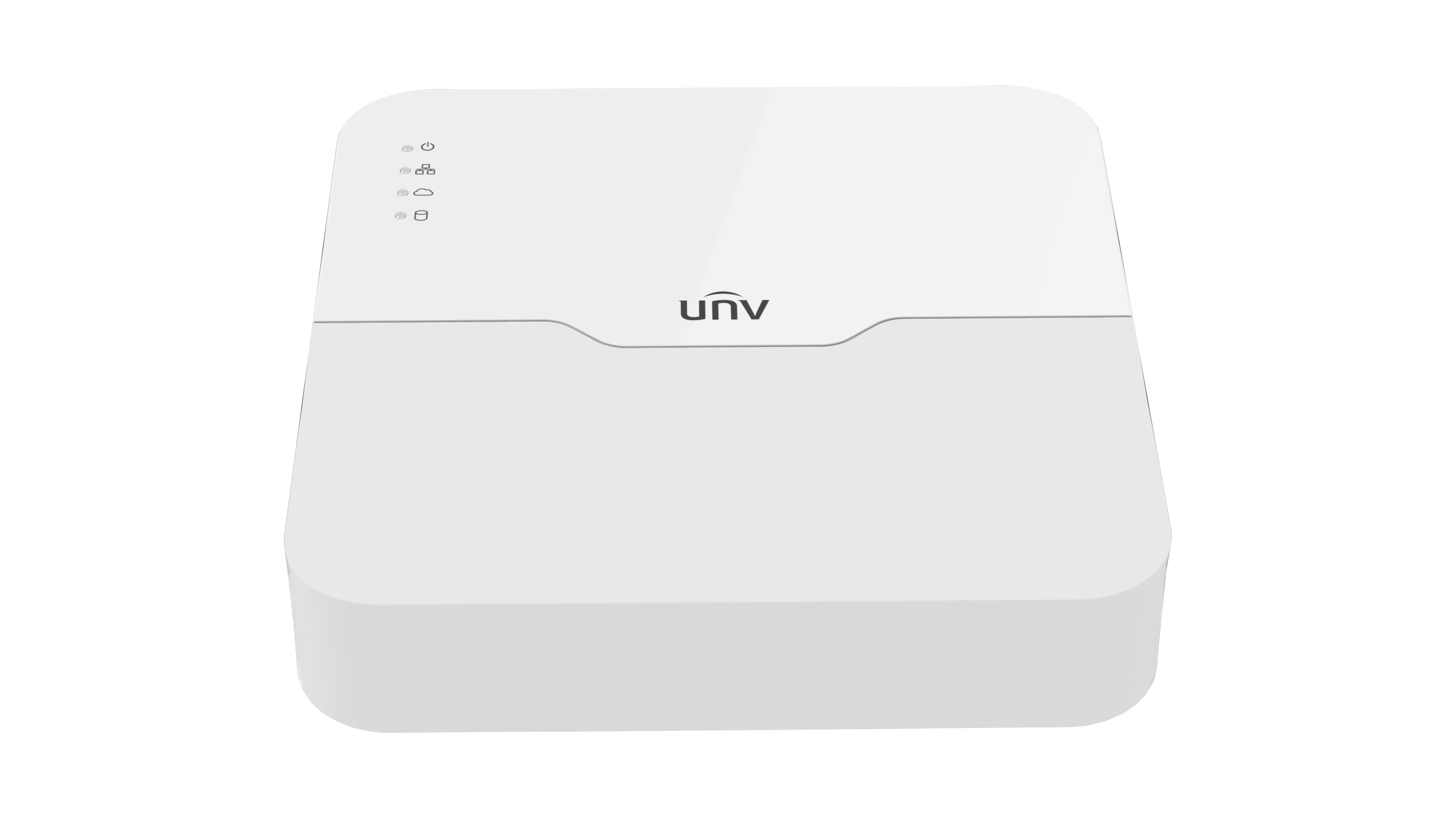

Uniview - NVR301-16B-LP8-IQ - UNV NVR301-16B-LP8-IQ 4K AI NVR
Part number:
NVR301-16B-LP8-IQ
Price:
1 HDD 16-ch 4 PoE 1U Network Video Recorder
Features:
- Support Ultra 265/H.265/H.264 video formats
- 4/8/16 channel input
- Plug & Play with 4/8 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support HDMI and VGA simultaneous output
- Up to 12 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
| Decoding | |
| Decoding Format | Ultra 265,H.265,H.264 |
| Decoding Capability | NVR301‑04B‑LP4‑IQ:Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30 Smart On：2 x 4K@30, 4 x 4MP@30 NVR301‑08B‑LP8‑IQ:Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 NVR301‑16B‑LP8‑IQ:Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 80Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP; P2P; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; RTSP; IPv6; IPv4 |
| Browser(Plugin) | Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above) |
| Video/Audio Input | |
| IP Video Input | NVR301‑04B‑LP4‑IQ:4‑ch NVR301‑08B‑LP8‑IQ:8‑ch NVR301‑16B‑LP8‑IQ:16‑ch |
| RCA Audio Input | 1‑ch |
| Video/Audio Output | |
| HDMI Output | 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCA Audio Output | 1‑ch |
| Liveview Display | NVR301‑04B‑LP4‑IQ:1/4 NVR301‑08B‑LP8‑IQ:1/4/6/8/9 NVR301‑16B‑LP8‑IQ:1/4/6/8/9/16 |
| Corridor Mode Screen | NVR301‑04B‑LP4‑IQ:3/4 NVR301‑08B‑LP8‑IQ:3/4/5/7/9 NVR301‑16B‑LP8‑IQ:3/4/5/7/9/10/12/16 |
| Two-way Audio | |
| Two-way Audio | 1‑ch,RCA(Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/Event Snapshot | 4‑ch snapshot,up to D1 resolution |
| Recording | Description |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Num of Concurrent Playback | 16‑ch |
| Smart | |
| VCA Detection by IPC | Face Detection; face detection; Vehicle Detection; SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area); Ultra Motion Detection (UMD); People Counting(People Flow Counting,Crowd Density Monitoring); Traffic Monitoring |
| Smart by NVR | face detection; Smart Intrusion Prevention (SIP); Ultra Motion Detection(UMD) |
| VCA Search | Motor Vehicle Search; Non‑Motor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map |
| Smart by IPC | All channels (up to 8 images/s in total)Face Detection,face detection,Vehicle Detection,SIP,UMD,Traffic Monitoring |
| Search by Image | Support |
| SIP by NVR | 2‑ch |
| UMD by NVR | 4‑ch |
| Alarm | |
| General Alarm | Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection |
| Alert Alarm | IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal |
| GUI Language | |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | |
| SATA | 1 SATA Interfaces |
| Capacity | Up to 10TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self‑adaptive Ethernet Interface |
| USB | Rear panel: 1 x USB2.0, 1 x USB3.0 |
| RS485 | N/A |
| RS232 | N/A |
| Alarm In | N/A |
| Alarm Out | N/A |
| Power Supply | NVR301‑04B‑LP4‑IQ:DC 48V/1.35A NVR301‑08B‑LP8‑IQ/NVR301‑16B‑LP8‑IQ:DC 52V/1.8A |
| Power Switch | Support |
| PoE | |
| PoE Interface | NVR301‑04B‑LP4‑IQ:4 RJ45 10M/100M self‑adaptive Ethernet Interface NVR301‑08B‑LP8‑IQ:8 RJ45 10M/100M self‑adaptive Ethernet Interface NVR301‑16B‑LP8‑IQ:16 RJ45 10M/100M self‑adaptive Ethernet Interface |
| Max Power | NVR301‑04B‑LP4‑IQ:Max 30W for single port,Max 50W in total NVR301‑08B‑LP8‑IQ/NVR301‑16B‑LP8‑IQ:Max 30W for single port,Max 75W in total |
| Supported Standard | IEEE 802.3at,IEEE 802.3af |
| Working Environment | |
| Working Temperature | ‑10°C ~ + 55°C (+14°F ~ +131°F) |
| Working Humidity | ≤ 90% RH (non‑condensing) |
| Power Consumption (without HDD) | ≤ 12W |
| Dimensions | |
| Weight (without HDD) | NVR301‑04B‑LP4‑IQ:≤ 2.7Kg (6.0lb) NVR301‑08B‑LP8‑IQ/NVR301‑16B‑LP8‑IQ:≤ 4Kg (8.8lb) |
| Height | 1U |
| Dimensions | NVR301‑04B‑LP4‑IQ:205mm × 212mm × 46mm (8.1"×8.3"×1.8") NVR301‑08B‑LP8‑IQ/NVR301‑16B‑LP8‑IQ:270mm × 212mm × 46mm (10.6"×8.3"×1.8") |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part15 Subpart B |
