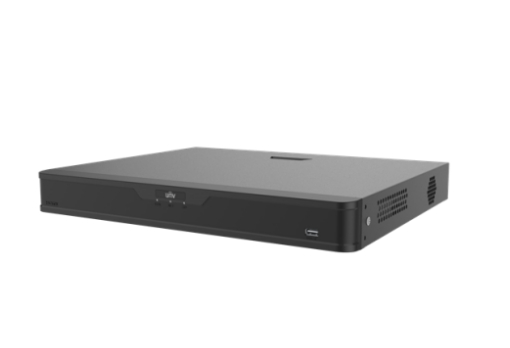

Uniview - NVR302-32B-IQ - UNV NVR302-32B-IQ 4K AI NVR
- Support Ultra H.265/H.265/H.264 video formats
- 9/16/32 channel input
- Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution
- Support HDMI and VGA simultaneous output
- Up to 12 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
| Decoding | |
| Decoding Format | Ultra 265,H.265,H.264 |
| Decoding Capability | NVR302-09B-IQ:Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 9 x 1080P@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 9 x 720P@30 NVR302-32B-IQ:Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 20 x 720P@30, 32 x D1 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1 NVR302-16B-IQ:Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | 160Mbps |
| Outgoing Bandwidth | 128Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP; P2P; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; RTSP; IPv6; IPv4 |
| Browser(Plugin) | Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above) |
| Video/Audio Input | |
| IP Video Input | NVR302-09B-IQ:9-ch NVR302-32B-IQ:32-ch NVR302-16B-IQ:16-ch |
| RCA Audio Input | 1-ch |
| Video/Audio Output | |
| HDMI Output | HDMI:4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output | VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | NVR302-09B-IQ:1/4/6/8/9 NVR302-32B-IQ:1/4/6/8/9/16/25/32 NVR302-16B-IQ:1/4/6/8/9/16 |
| Playback Screen | NVR302-09B-IQ:1/4/9 NVR302-32B-IQ/NVR302-16B-IQ:1/4/9/16 |
| Two-way Audio | |
| Two-way Audio | 1-ch,RCA(Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/Event Snapshot | 4-ch snapshot,up to D1 resolution |
| Recording | |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | NVR302-09B-IQ:9-ch NVR302-32B-IQ/NVR302-16B-IQ:16-ch |
| Smart | |
| VCA Detection by IPC | Face Detection; face detection; Vehicle Detection; SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection (UMD); People Counting (People Flow Counting, Crowd Density Monitoring); Traffic Monitoring |
| Smart by NVR | face detection; Smart Intrusion Prevention (SIP); Ultra Motion Detection(UMD) |
| VCA Search | Motor Vehicle Search; Non-Motor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map |
| Smart by IPC | All channels (up to 8 images/s in total)Face Detection, face detection, Vehicle Detection, SIP, UMD, Traffic Monitoring |
| Vehicle Picture Library | Up to 5 vehicle picture libraries,with up to 25,000 vehicle pictures in total |
| SIP by NVR | 2-ch |
