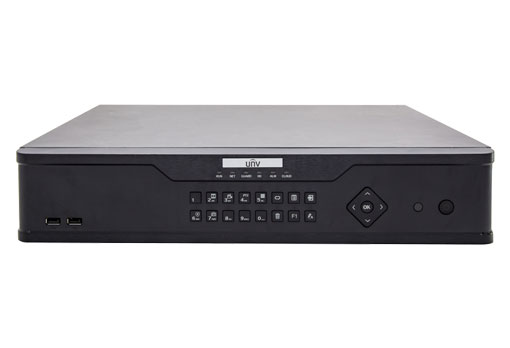

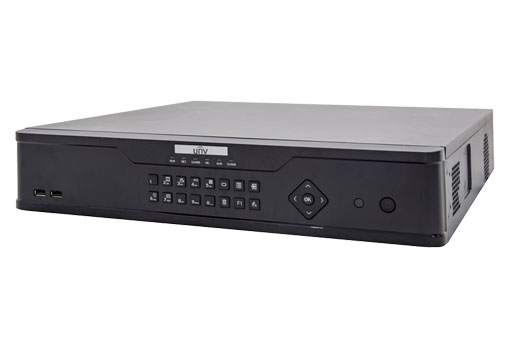

Uniview - NVR304-16EP-B - 16 Channel 4 HDDs 4K NVR
Part number:
NVR304-16EP-B
Price:
16 Channel 4 HDDs 4K NVR
Features:
- Support Ultra 265/H.265/H.264 video formats
- 16/32-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K (3840x2160) resolution
- HDMI1/VGA and HDMI2 independent outputs provided
- Up to 12 Megapixels resolution recording
- 4 SATA HDDs, Up to 10TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- Support for 12V Power output
- Plug & Play with up to 16 independent PoE network interfaces
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
| Model | NVR304-16EP-B | NVR304-32EP-B | |
| Video/Audio Input | |||
| IP Video Input | 16-ch | 32-ch | |
| Two-way Audio Input | 1-ch, RCA | ||
| Network | |||
| Incoming Bandwidth | 320Mbps | ||
| Outgoing Bandwidth | 320Mbps | ||
| Remote Users | 128 | ||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | ||
| Video/Audio Output | |||
| HDMI/VGA output | HDMI1/VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI2: 4K (3840x2160)/60Hz, 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | ||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Audio Output | 1-ch, RCA | ||
| Synchronous Playback | 16-ch | ||
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 | |
| Decoding | |||
| Decoding format | Ultra 265, H.265, H.264 | ||
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Capability | 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30 | 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30, 32 x 960p@25 | |
| Hard Disk | |||
| SATA | 4 SATA interfaces | ||
| Capacity | up to 10TB for each HDD | ||
| External Interface | |||
| Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface | ||
| Serial Interface | 1 x RS485 | ||
| USB Interface | Front panel: 2 x USB2.0 Rear panel: 1 x USB3.0 | ||
| Alarm In | 16-ch | ||
| Alarm Out | 4-ch | ||
| Power Output | 12 VDC | ||
| PoE | |||
| Interface | 16 RJ45 10M/100M self-adaptive Ethernet Interface | ||
| Max Power | Max 30W for single port Max 200W in total | ||
| Supported Standard | IEEE 802.3at | ||
| General | |||
| Power Supply | 100~240 VAC Power Consumption: ≤ 20 W (without HDD) | ||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||
| Dimensions (W×D×H) | 442 mm× 425mm×89mm (17.4" × 16.7"×3.5") | ||
| Weight (without HDD) | ≤ 5.24 Kg(11.55lb) | ||
