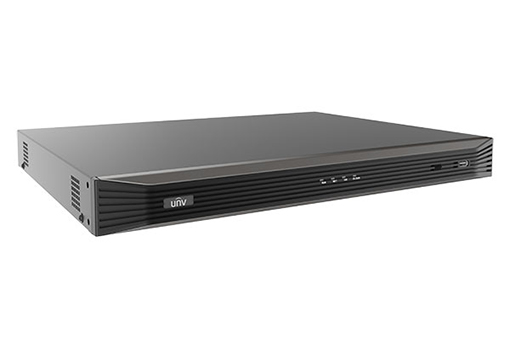

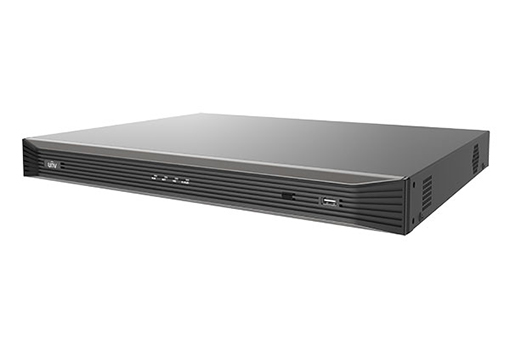

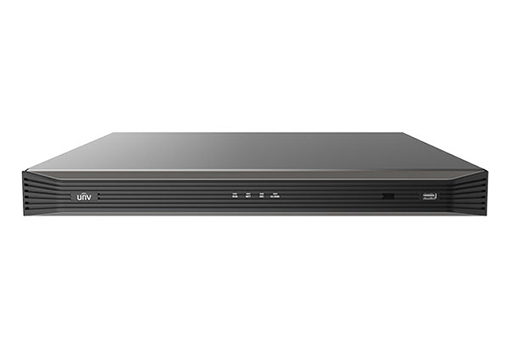

Uniview - NVR304-32E-IF - 32-CH Network Video Recorder
Uniview - NVR304-32E-IF - 32-CH Network Video Recorder
Uniview - NVR304-32E-IF - 32-CH Network Video Recorder
Uniview - NVR304-32E-IF - 32-CH Network Video Recorder
Uniview - NVR304-32E-IF - 32-CH Network Video Recorder Uniview - NVR304-32E-IF - 32-CH Network Video Recorder Uniview - NVR304-32E-IF - 32-CH Network Video Recorder

Uniview - NVR304-32E-IF - 32-CH Network Video Recorder

Part number:
NVR304-32E-IF
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

UNV 4 Hard Disks 4K 32 Channel AI FR Network Video Recorder



Features:

  • Support Ultra H.265/H.265/H.264 video formats
  • 32-channel input
  • Support 4-ch face recognition with face capture camera
  • Support 1-ch face recognition with non-face-capture camera
  • Up to 16 face libraries, total capacity of 50000 face images
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K (3840x2160) resolution
  • HDMI1/VGA and HDMI2 independent outputs provided
  • Up to 12 Megapixels resolution recording
  • 4 SATA HDDs, Up to 10TB for each HDD
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
ModelNVR304-32E-IF
Video/Audio Input
IP Video Input32-ch
Two-way Audio Input1-ch, RCA
Network
Incoming BandwidthSmart Off: 320Mbps
Smart On: 160Mbps
Outgoing BandwidthSmart Off: 320Mbps
Smart On: 160Mbps
Remote Users128
ProtocolsTCP/IP,IPv4,IPv6, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS,Onvif
BrowserIE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA OutputVGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI:
4K (3840x2160)/30Hz, 1920x1080 p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Audio CompressionG.711A, G.711U
Synchronous Playback16-ch
Live View Display1/4/6/8/9/16/25/36
Corridor Mode Screen3/4/5/7/9/10/12/16/32
Snapshot
FTP/Schedule/Event Snapshot16-ch snapshot, up to 1080P resolution
Decoding
Decoding FormatUltra 265, H.265, H.264
Live View/Playback12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
CapabilitySmart Off: 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 22 x 720P@30, 32 x D1
Smart On: 1 x 12MP@30, 2 x 4K@30 , 4 x 4MP@30, 8 x 1080P@30, 18 x 720P@30, 32 x D1
Hard Disk
SATA4 SATA interfaces
CapacityUp to 10TB for each disk
(The maximum HDD capacity varies with environment temperature)
eSATANA
Disk GroupSupport
Smart
VCA Detection by CameraFace Detection, Face Comparison, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD)
NVR SmartSmart Intrusion Prevention (SIP), Face Comparison, UMD
VCA SearchFace Search, Face Comparison Search, Behavior Search, Vehicle Search
People CountingPeople Flow Counting, Crowd Density Monitoring
SIP by NVR with normal cameras4-ch
Face Comparison by NVR with normal cameras2-ch
Face Comparison by NVR with face detection cameras8-ch
UMD by NVR8-ch
SIP, Face Detection, Face comparison, Vehicle Detection, UMD by CameraTotal 8-ch
Face Picture LibraryUp to 16 face picture libraries, with up to 50,000 face pictures in total
General Alarm
General AlarmMotion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection
Alert AlarmIP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB InterfaceFront panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0
RS232NA
RS4851
Alarm In8-ch
Alarm Out2-ch
General
Power Supply12VDC/3.3A
Power Consumption: ≤ 12 W (without HDD)
Working Environment-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)380mm × 321mm × 53mm (15.0" × 12.6"× 2.1")
Weight (without HDD)≤1.8Kg (3.97lb)
Certification
CertificationCE, FCC, UL, RoHS, WEEE
CEEN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCCPart15 Subpart B, ANSI C63.4
Name
Description
Size
Downloads
File
Datasheet
0.6mb
