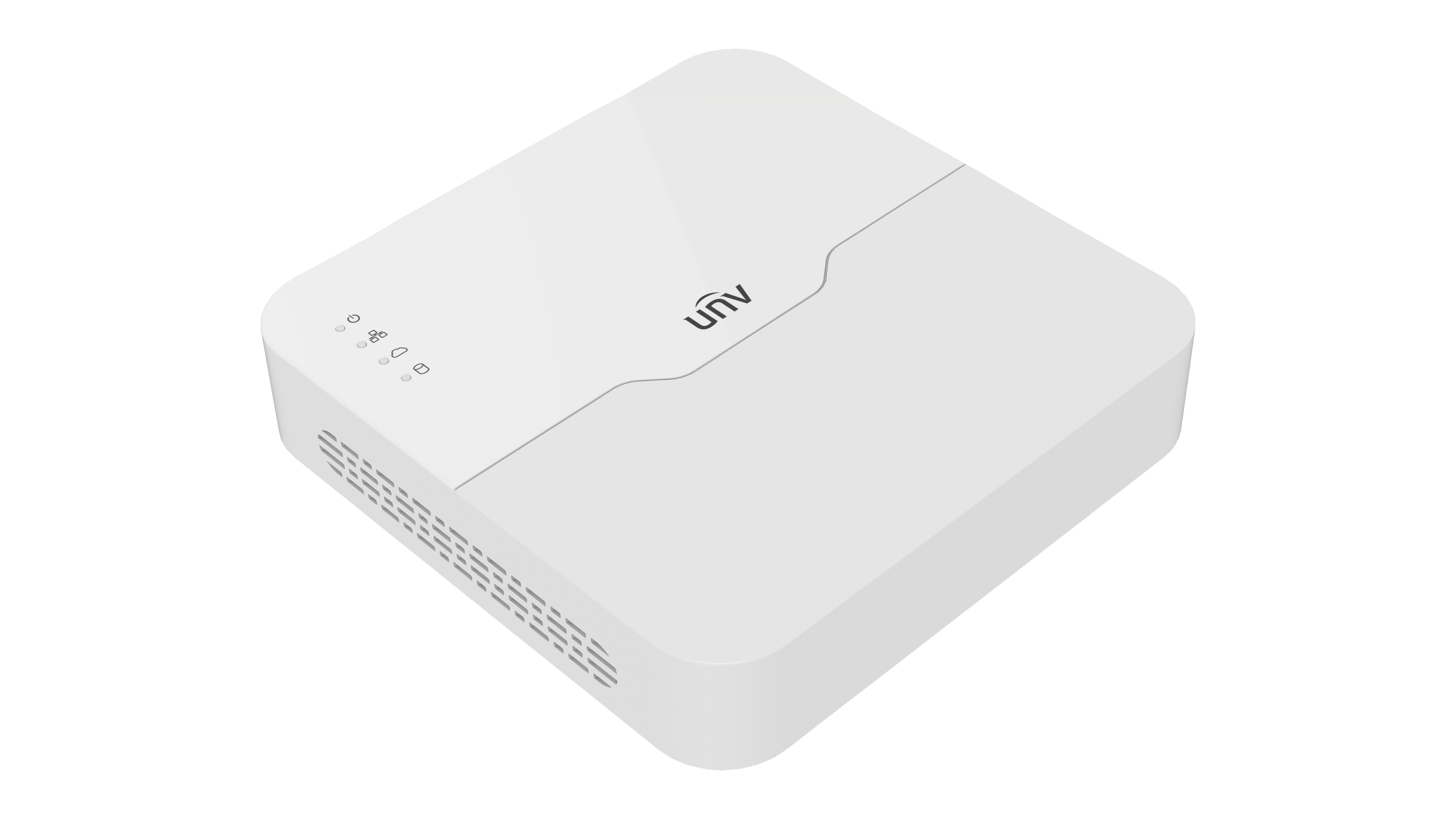

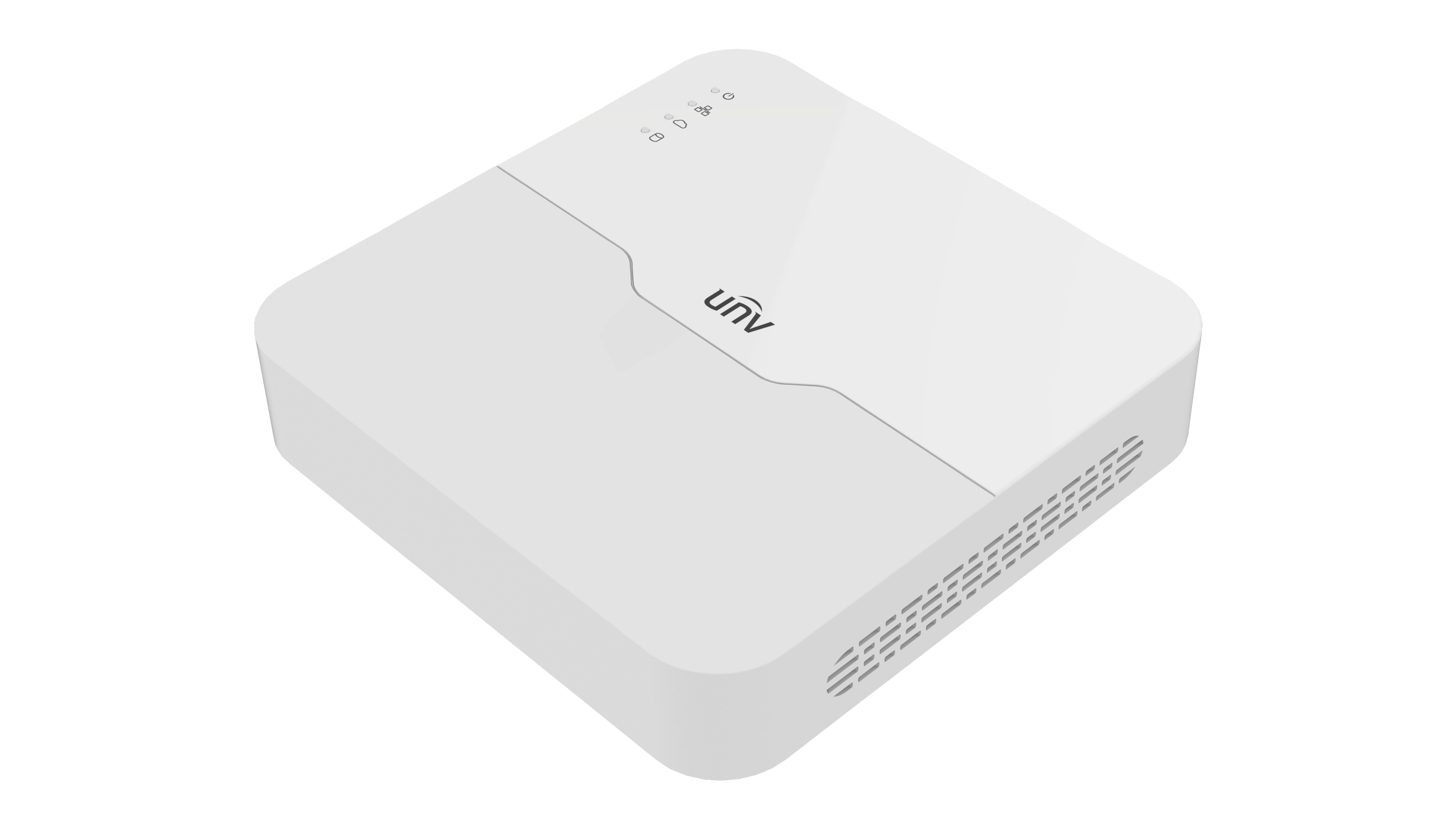

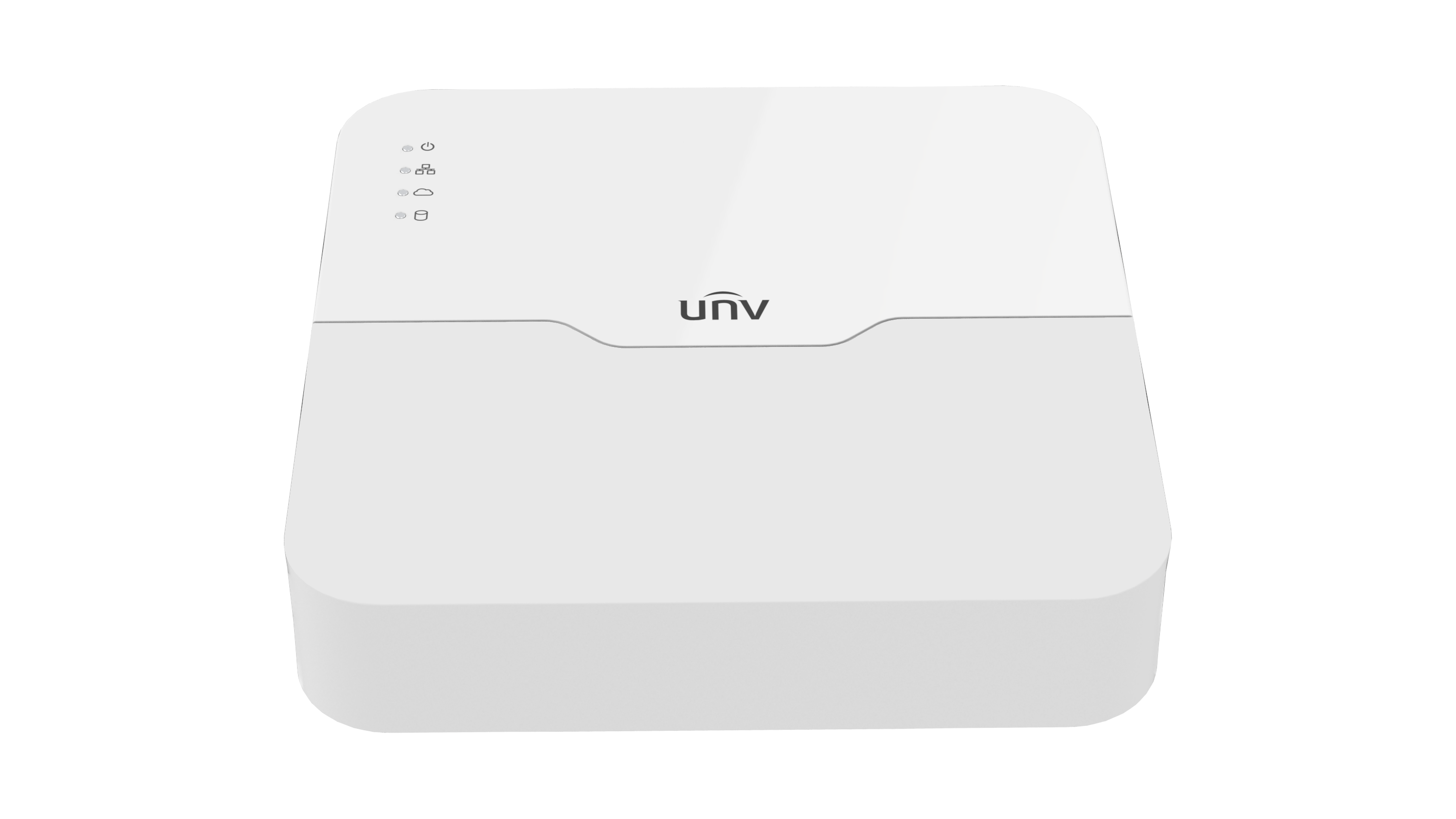

Uniview - NVR501-04B-LP4-IQ - UNV NVR501-04B-LP4-IQ 4K AI Network Video Recorder
Part number:
NVR501-04B-LP4-IQ
Price:

1 HDD 4-ch 4 PoE 1U Network Video Recorder



Features:

  • Support Ultra 265/H.265/H.264 video formats
  • 4/16-channel input
  • Plug & Play with 4/8 independent PoE network interfaces
  • Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
  • VGA and HDMI simultaneous output
  • Up to 16 Megapixels resolution recording
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
 NVR501-04B-LP4-IQNVR501-08B-LP8-IQ
Decoding
Decoding FormatUltra 265, H.265, H.264
Decoding CapabilitySmart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30
Smart On: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30
Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30
Smart On: 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30
Decoding Capability DescriptionThe resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio CompressionG.711A, G.711U
Network
Incoming Bandwidth80 Mbps
Outgoing Bandwidth80 Mbps
Remote Users128
ProtocolsTCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser (Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input4-ch8-ch
RCA Audio Input1-ch
Video/Audio Output
Video OutputSupport 1-ch HDMI, 1-ch VGA, HDMI and VGA simultaneous output
HDMI Output4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output1-ch
Liveview Display1/41/4/6/8/9
Corridor Mode Screen3/43/4/5/7/9
Two-way Audio
Two-way Audio1-ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot4-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)
Recording
Recording Resolution16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Num of Concurrent Playback16-ch
Smart
VCA Detection by IPCFace Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
Smart by NVRFace Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
VCA SearchMotor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch
Smart by IPCAll channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Vehicle Picture LibraryUp to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR4-ch
UMD by NVR4-ch8-ch
Capacity of Snapshot Records500 thousand records for face snapshot, One and a half millions records for SIP and vehicle
Alarm
General AlarmDefocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert AlarmIP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded
GUI Language
GUI Language38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA1 SATA Interface
CapacityUp to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)
External Interface
Network Interface1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USBFront panel: 1 × USB2.0, Rear panel: 1 × USB3.0
RS485N/A
RS232N/A
Alarm InN/A
Alarm OutN/A
Power SupplyDC 48 V/1.35 ADC 52 V/1.8 A
PoE
PoE Interface4 RJ45 10 M/100 M self-adaptive Ethernet Interface8 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max PowerMax 30 W for single port, Max 50 W in totalMax 30 W for single port, Max 75 W in total
Supported StandardIEEE 802.3at, IEEE 802.3af
Working Environment
Working Temperature-10 ℃ to 50 ℃ (14 ℉ to 122 ℉)
Working Humidity≤ 90% RH (non-condensing)
Power Consumption (without HDD)≤ 8W
Dimensions
Weight (without HDD)≤ 1Kg (2.2lb)
Height1U
Dimensions205mm ×212mm × 46.6mm (8.1" ×8.3" ×1.8" )270mm ×210mm × 46.6mm (10.6" ×8.3" ×1.8" )
Certification
CertificationCE; FCC; UL; RoHS; WEEE
CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCCPart15 Subpart B
