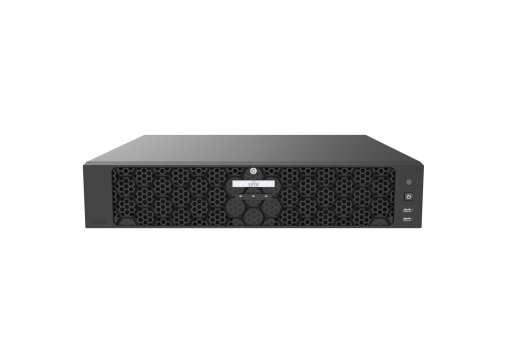

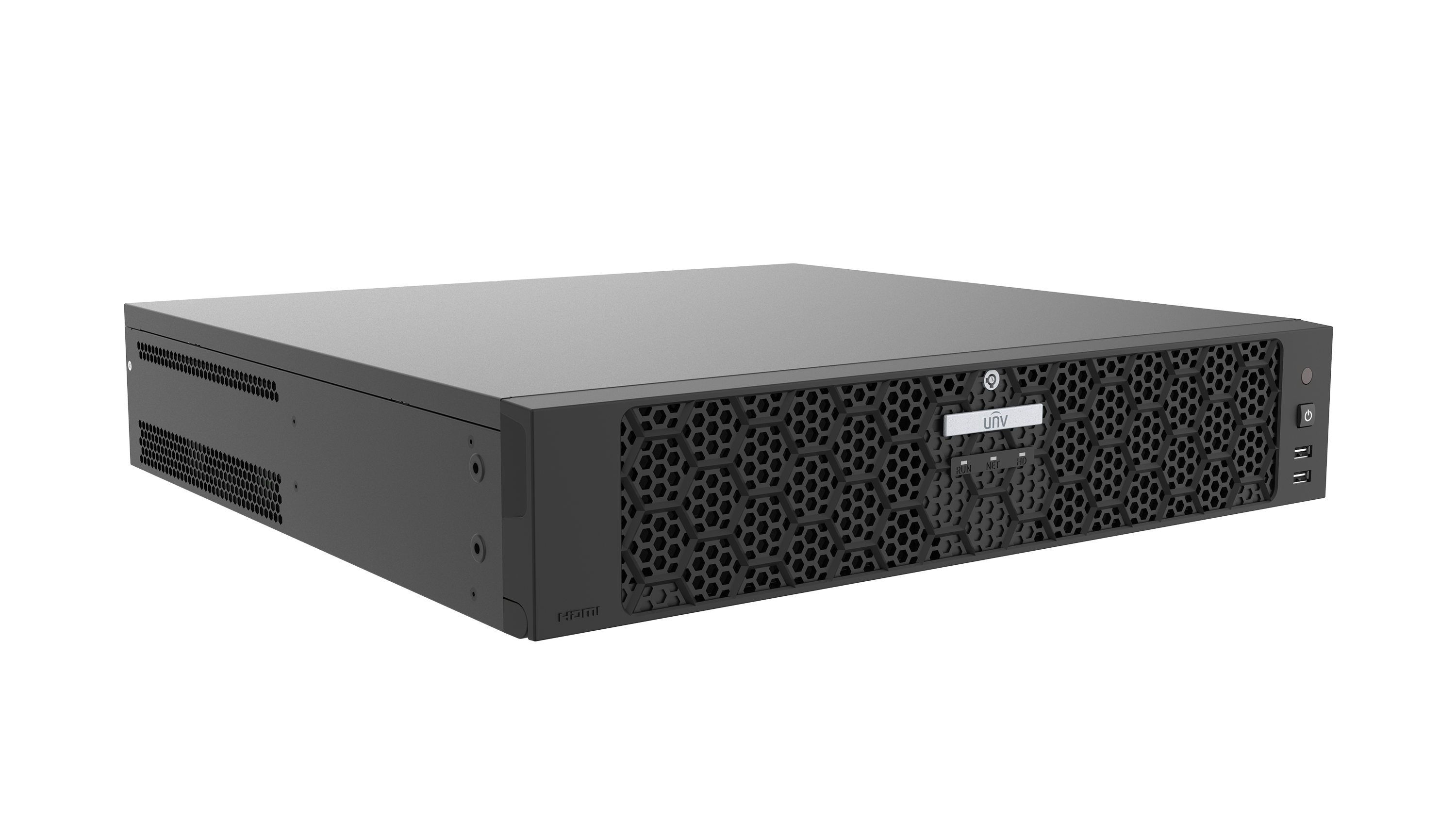

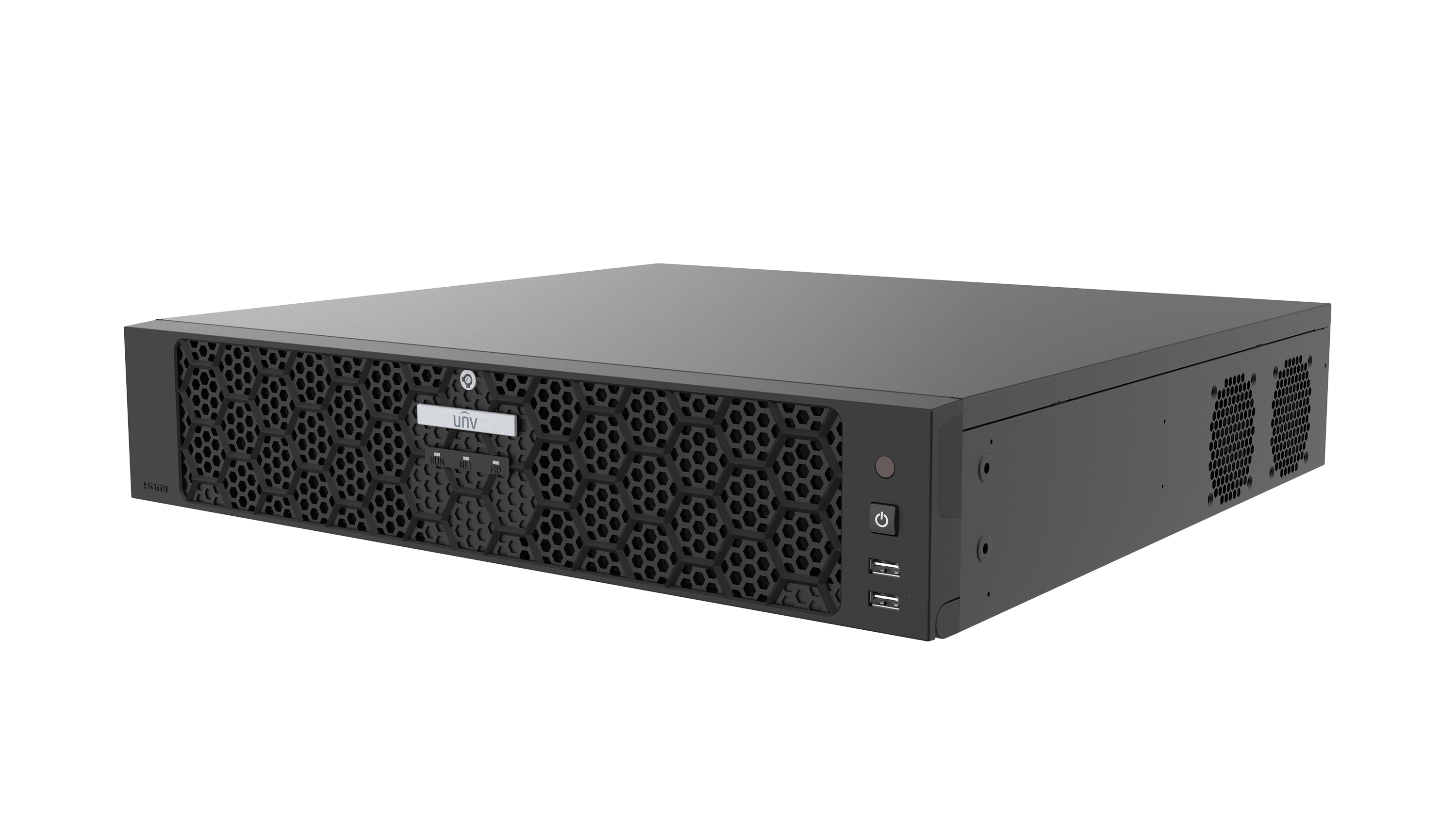

Uniview - NVR508-32E-R-IQ - 4K AI Network Recorder with 32 Channel Input
Part number:
NVR508-32E-R-IQ
Price:
4K AI Network Recorder with 32 Channel Input
Features:
- Support Ultra 265/H.265/H.264 video formats
- 32/64‑channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T) and RTSP protocols
- Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
- Up to 32 Megapixels resolution recording
- Support N+1 Hot spare
- Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
- Redundant power supply optional
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator
| Decoding | Description |
| DecodingFormat | Ultra 265, H.265, H.264 |
| DecodingCapability | NVR508‑32E‑R‑IQ:Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30 Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 32 x 720P@30 NVR508‑64E‑R‑IQ:Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30 Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 48 x 720P@30 |
| AudioCompression | G.711A, G.711U |
| Network | Description |
| IncomingBandwidth | Smart Off：384Mbps Smart On：200Mbps |
| OutgoingBandwidth | Smart Off：384Mbps Smart On：200Mbps |
| RemoteUsers | 128 |
| Protocols | TCP/IP;P2P;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6 |
| Browser(Plugin) | Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
| Video/AudioInput | Description |
| IPVideoInput | NVR508‑32E‑R‑IQ:32‑ch NVR508‑64E‑R‑IQ:64‑ch |
| RCAAudioInput | 1‑ch |
| Video/AudioOutput | Description |
| HDMIOutput | HDMI:4K(3840x2160)/60Hz, 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGAOutput | VGA:1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCAAudioOutput | 2‑ch |
| LiveviewDisplay | NVR508‑32E‑R‑IQ:1/4/6/8/9/16/25/32 NVR508‑64E‑R‑IQ:1/4/6/8/9/16/25/36/64 |
| CorridorModeScreen | 3/4/5/7/9/10/12/16/32 |
| Two-wayAudio | Description |
| Two-wayAudio | 1‑ch, RCA(Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/EventSnapshot | 16‑ch snapshot, up to 4K resolution |
| Recording | Description |
| RecordingResolution | 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Smart | Description |
| VCADetectionbyIPC | Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring |
| SmartbyNVR | Face detection;Smart Intrusion Prevention (SIP);Ultra Motion Detection(UMD) |
| VCASearch | Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report;Heat Map |
| SmartbyIPC | All channels (up to 16 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| VehiclePictureLibrary | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIPbyNVR | 8‑ch |
| UMDbyNVR | 16‑ch |
| CapacityofSnapshotRecords | 3 millions records for face snapshot;2 millions records for vehicle snapshot;2 millions records for SIP;2 millions records for video Metadata |
| Alarm | Description |
| GeneralAlarm | Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection |
| AlertAlarm | IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal;Array Damaged;Array Degraded |
| GUILanguage | Description |
| GUILanguage | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| HardDisk | Description |
| SATA | 8 SATA Interfaces |
| Capacity | Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature) |
| DiskGroup | Support |
| RedundantStorage | Support |
| DiskArrayType | RAID 0, 1, 5, 6, 10 |
| HotSwap | Support |
| ExternalInterface | Description |
| NetworkInterface | 2 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface |
| USB | Front panel: 2 x USB2.0;Rear panel: 2 x USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| AlarmIn | 16‑ch |
| AlarmOut | 10‑ch |
| eSATA | 1 |
| PowerOutput | 12V |
| PowerSupply | AC 100~240V |
| RedundantPowerSupply | Support |
| WorkingEnvironment | Description |
| WorkingTemperature | ‑10 °C ~ 50 °C (14 °F ~ 122 °F) |
| WorkingHumidity | ≤ 90% RH (non‑condensing) |
| PowerConsumption(withoutHDD) | ≤ 20W |
| Dimensions | Description |
| Weight(withoutHDD) | ≤ 6.5Kg (14.3lb) |
| Height | 2U |
| Dimensions | 443mm × 448mm × 93mm (17.4"×17.6"×3.7") |
| Certification | Description |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part15 Subpart B |
