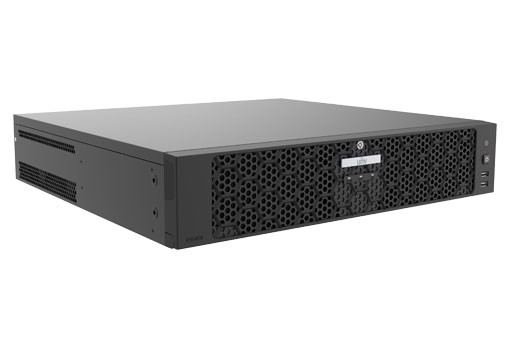

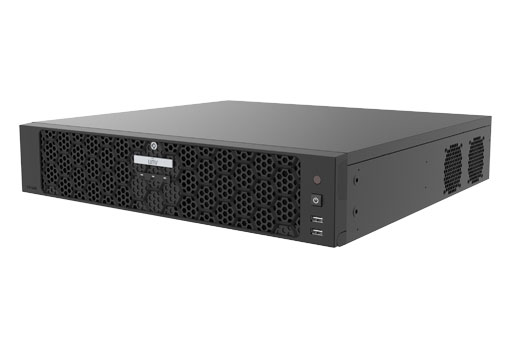

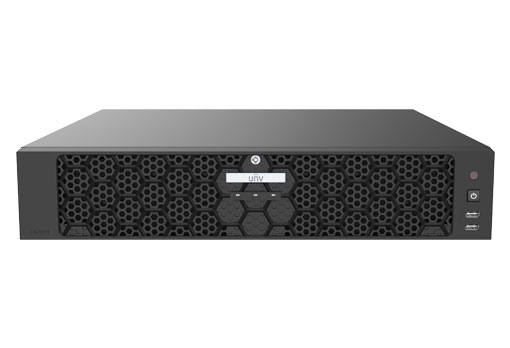

Uniview - NVR508-64E-R - 4K Network Video Recorder with 64 Channel
Part number:
NVR508-64E-R
Price:
4K Network Video Recorder with 64 Channel
Features:
- Support Ultra 265/H.265/H.264 video formats
- 32/64/128‑channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
- Up to 32 Megapixels resolution recording
- Support N+1 Hot spare
- Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
- Redundant power supply optional
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
| NVR508-32E-R | NVR508-64E-R | NVR508-128E-R | |
| Decoding | |||
| Decoding Format | Ultra 265, H.265, H.264 | ||
| Decoding Capability | 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30 | 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30 | 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30, 128 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width | ||
| Audio Compression | G.711A, G.711U | ||
| Network | |||
| Incoming Bandwidth | 384 Mbps | ||
| Outgoing Bandwidth | 384 Mbps | ||
| Remote Users | 128 | ||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 | ||
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ | ||
| Video/Audio Input | |||
| RCA Audio Input | 1-ch | ||
| Video/Audio Output | |||
| HDMI Output | 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | ||
| VGA Output | 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | ||
| RCA Audio Output | 2-ch | ||
| Liveview Display | 1/4/6/8/9/16/25/32 | HDMI1/VGA1:1/4/6/8/9/16/25/36/64, HDMI2/VGA2:1/4/6/8/9/16/25/36 | HDMI1/VGA1:1/4/6/8/9/16/25/36/64, HDMI2/VGA2:1/4/6/8/9/16/25/36 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 | ||
| Two-way Audio | |||
| Two-way Audio | 1-ch, RCA (Using the audio input and output) | ||
| Snapshot | |||
| FTP/Schedule/Event Snapshot | 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) | ||
| Recording | |||
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF | ||
| Synchronous Playback in Local | 16-ch | ||
| Smart | |||
| VCA Detection by IPC | Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring | ||
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map | ||
| Smart by IPC | All channels (up to 16 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring | ||
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total | ||
| Alarm | |||
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | ||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||
| GUI Language | |||
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian | ||
| Hard Disk | |||
| SATA | 8 SATA Interfaces | ||
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) | ||
| Disk Group | Support | ||
| Disk Array Type | RAID 0, 1, 5, 6, 10 | ||
| Hot Swap | Support | ||
| External Interface | |||
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface | ||
| USB | Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0 | ||
| RS485 | 1 | ||
| RS232 | 1 | ||
| Alarm In | 16-ch | ||
| Alarm Out | 10-ch | ||
| eSATA | 1 | ||
| Power Output | 12 V | ||
| Power Supply | AC 100 to 240 V | ||
| Working Environment | |||
| Working Temperature | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) | ||
| Working Humidity | ≤ 90% RH (non-condensing) | ||
| Power Consumption (without HDD) | ≤ 35W | ||
| Dimensions | |||
| Weight (without HDD) | ≤ 6Kg (13.23lb) | ||
| Dimensions | 442mm × 448mm × 93mm (17.4" × 17.6" × 3.7") | ||
| Certification | |||
| Certification | CE; FCC; UL; RoHS; WEEE | ||
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | ||
| FCC | Part15 Subpart B | ||
