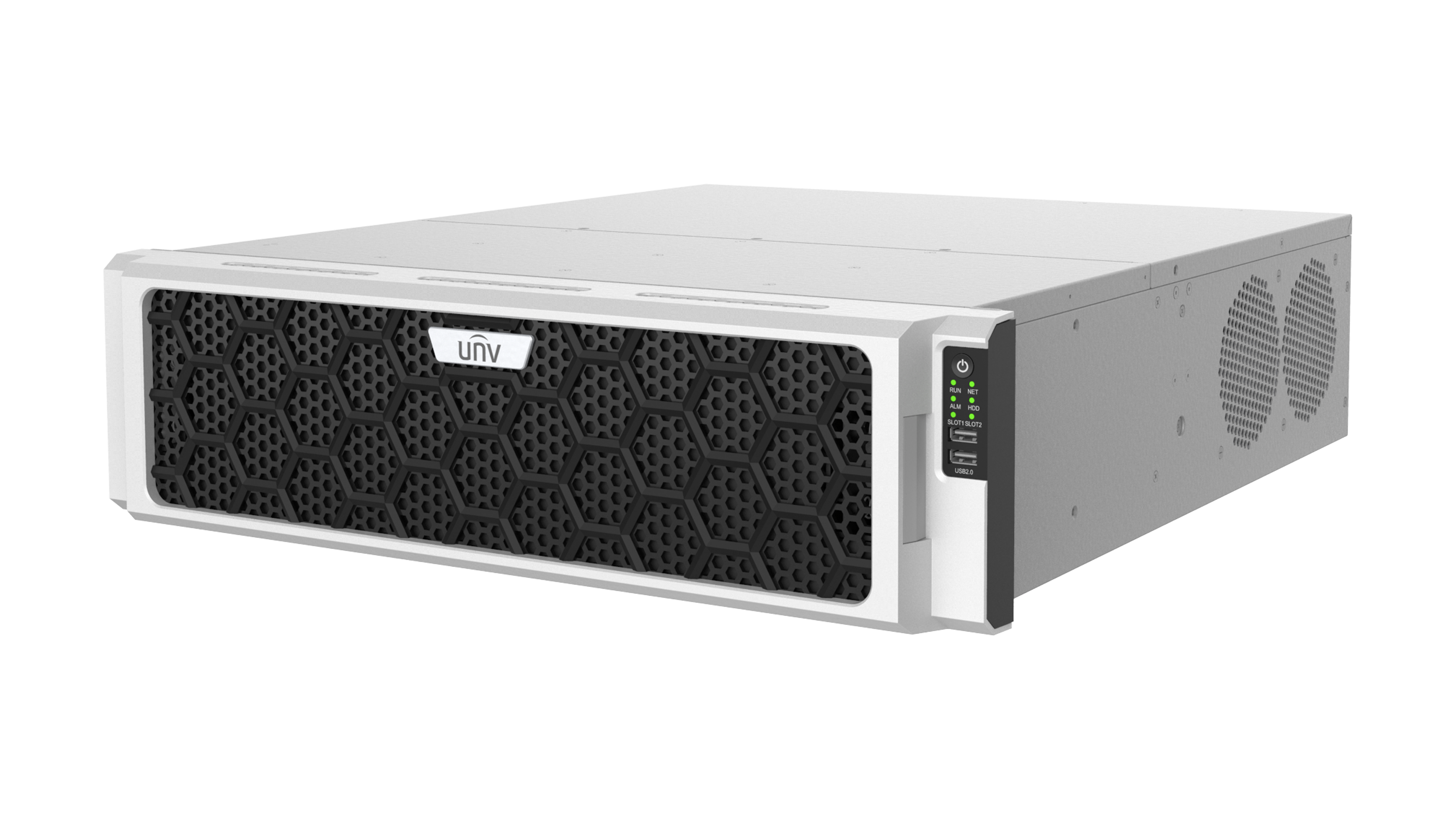

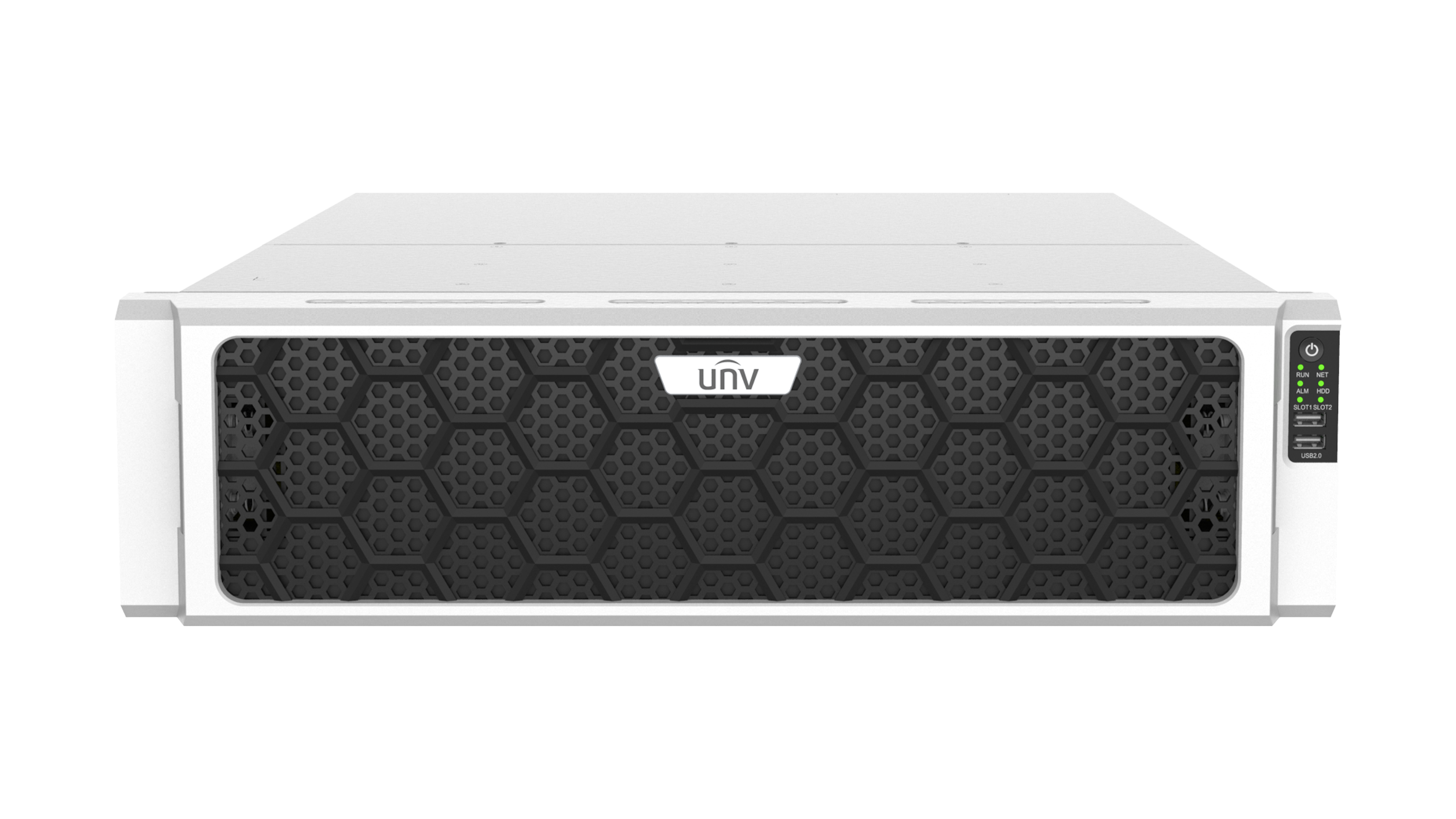

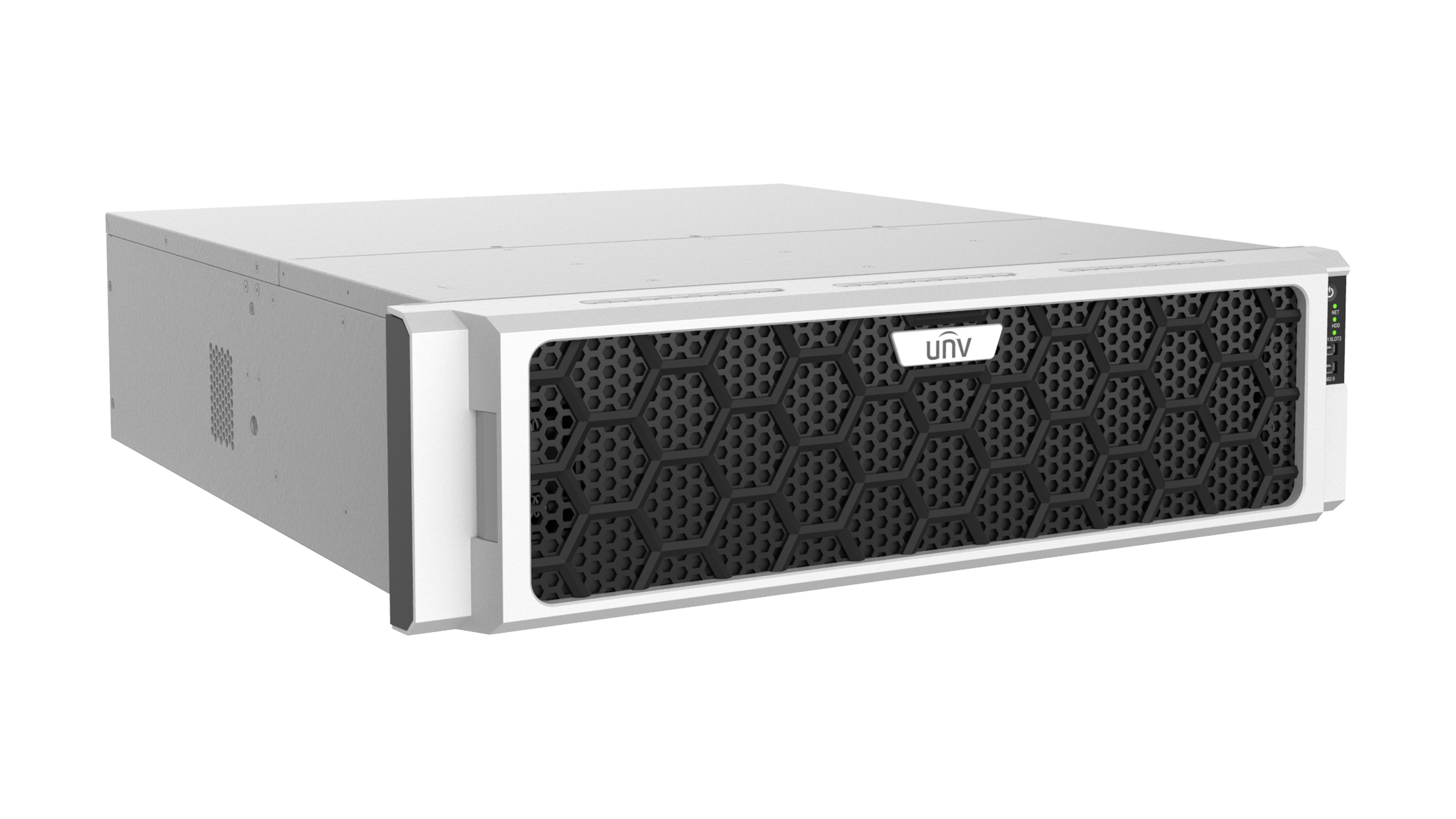

Uniview - NVR816-64 - UNV NVR816-64,4K Network Video Recorder
Part number:
NVR816-64
Price:
NVR816-64,4K Network Video Recorder
Features:
- Support Ultra 265/H.265/H.264 video formats
- 64/128-channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI1, HDMI2 and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Redundant power supply optional
- Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
- Support 2 miniSAS Interfaces
- Support 12V power output
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Support N+1 Hot spare
| NVR816-64 | NVR816-128 | |
| Decoding | ||
| Decoding Format | Ultra 265, H.265, H.264 | |
| Decoding Capability | 3 x 12MP@25, 4 x 4K@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 | |
| Decoding Capability Description | *. The resolution of each channel cannot exceed 4096 pixels in length or width., *. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page. | |
| Audio Compression | G.711A, G.711U | |
| Network | ||
| Incoming Bandwidth | 512Mbps | |
| Outgoing Bandwidth | 512Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 | |
| Browser(Plugin) | Windows: IE (IE10/ 11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above) | |
| Video/Audio Input | ||
| IP Video Input | 64-ch | 128-ch |
| RCA Audio Input | 1-ch | |
| Video/Audio Output | ||
| HDMI Output | 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| VGA Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| RCA Audio Output | 1-ch | |
| Liveview Display | VGA:1/4/6/8/9/16/25/36, HDMI1/HDMI2:1/4/6/8/9/16/25/36/64 | |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 | |
| Two-way Audio | ||
| Two-way Audio | 1-ch, RCA (Using the audio input and output) | |
| Snapshot | ||
| FTP/Schedule/Event Snapshot | 64-ch snapshot, up to 4K resolution | 128-ch snapshot, up to 4K resolution |
| Recording | ||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF | |
| Synchronous Playback in Local | 16-ch | |
| Smart | ||
| VCA Detection by IPC | Face Detection, face detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring | |
| Smart by NVR | In the Smart Card datasheet | |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report | |
| Smart by IPC | All channels (up to 64 images/s in total)Face Detection, face detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring | |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total | |
| SIP by NVR | In the Smart Card datasheet | |
| Capacity of Snapshot Records | 3 millions records for face snapshot, 3 millions records for vehicle snapshot, 2 millions records for SIP | |
| Alarm | ||
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard Temperature, Array Damaged, Array Degraded | |
| GUI Language | ||
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian | |
| Hard Disk | ||
| SATA | 16 SATA Interfaces | |
| Capacity | Up to 16TB for each HDD (The maximum HDD capacity varies with environment temperature) | |
| Disk Array Type | RAID 0, 1, 5, 6, 10, 50, 60 | |
| Hot Swap | Support | |
| External Interface | ||
| Network Interface | 4 RJ45 10M/100M/1000M self-adaptive Ethernet Interface | |
| USB | Front panel: 2 x USB2.0, Rear panel: 2 x USB3.0 | |
| RS485 | 1 | |
| RS232 | 1 | |
| Alarm In | 24-ch | |
| Alarm Out | 8-ch | |
| eSATA | 1 | |
| miniSAS | 2 | |
| Extension Board | 2 | |
| Power Output | 12V | |
| Power Supply | AC 100 ～ 240 V | |
| Power Switch | Support | |
| Redundant Power Supply | Support | |
| Working Environment | ||
| Working Temperature | -10 °C ~ 55 °C (14 °F ~ 131 °F) | |
| Working Humidity | ≤ 90% RH (non-condensing) | |
| Power Consumption (without HDD) | ≤ 65W | |
| Dimensions | ||
| Weight (without HDD) | ≤ 12.5Kg (27.56lb) | |
| Dimensions | 482mm × 533mm × 131.0mm (19.0"×21.0"×5.1") | |
| Certification | ||
| Certification | CE; FCC; UL; RoHS; WEEE | |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |
| FCC | Part15 Subpart B | |
