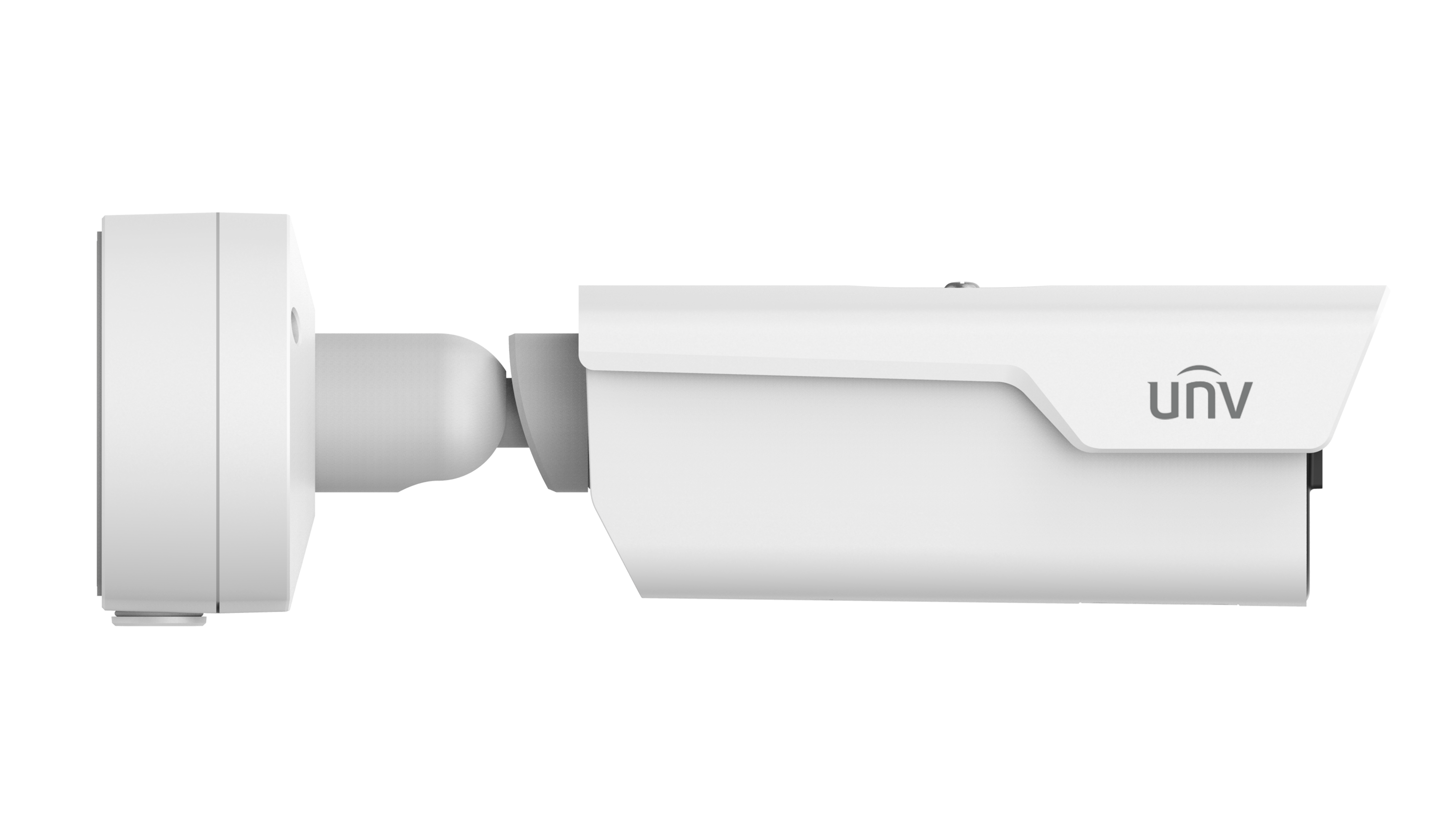

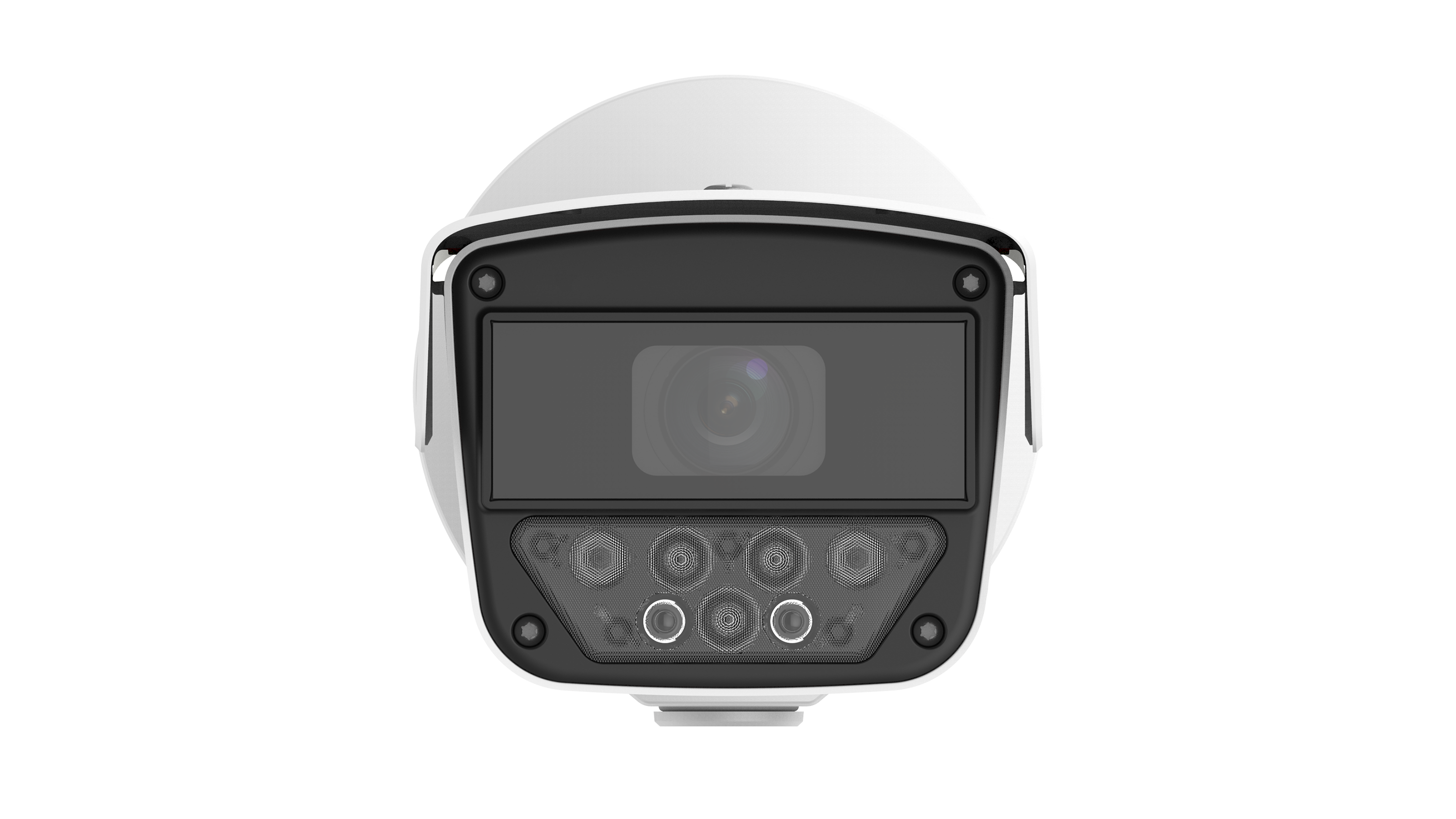

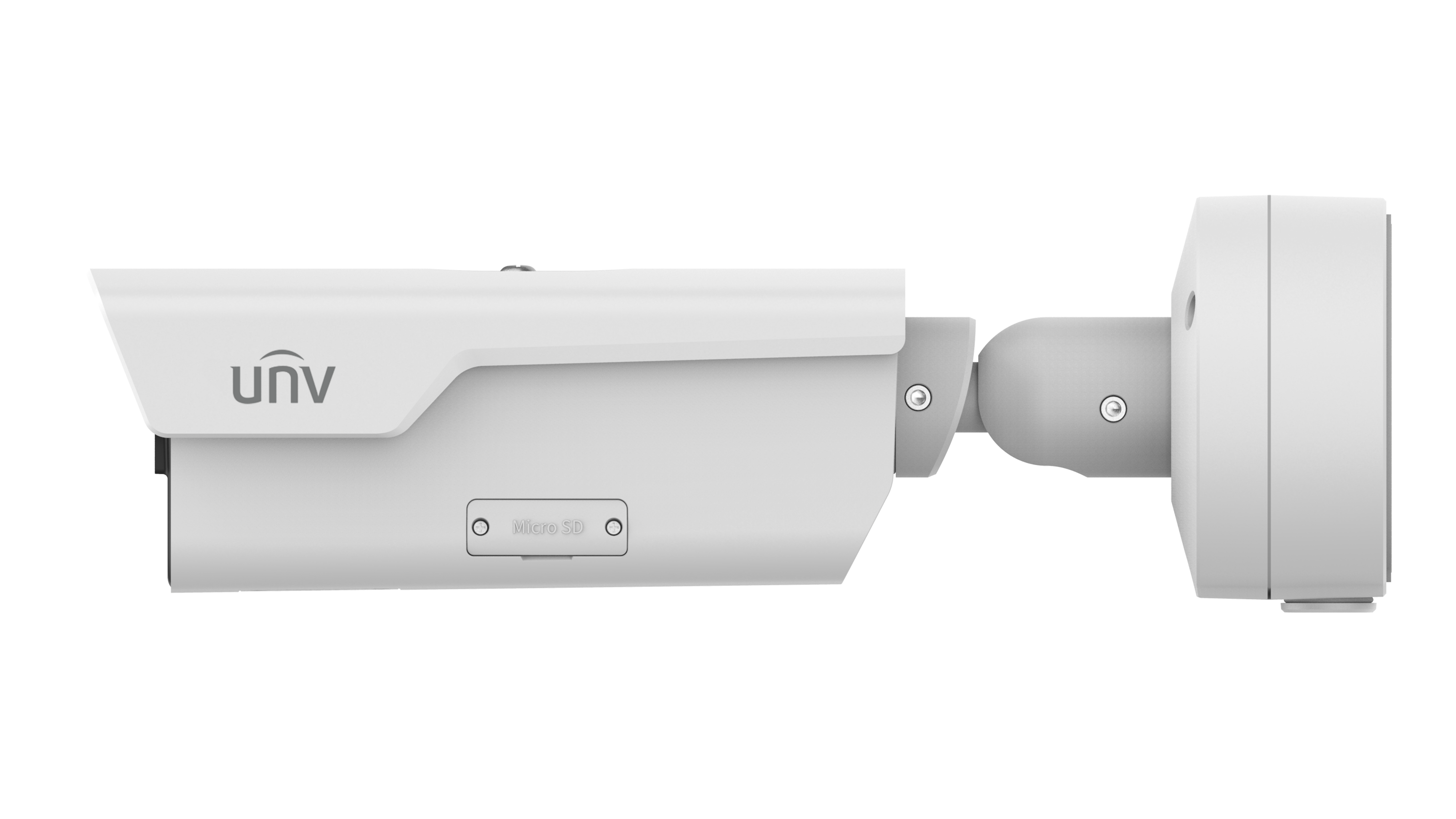

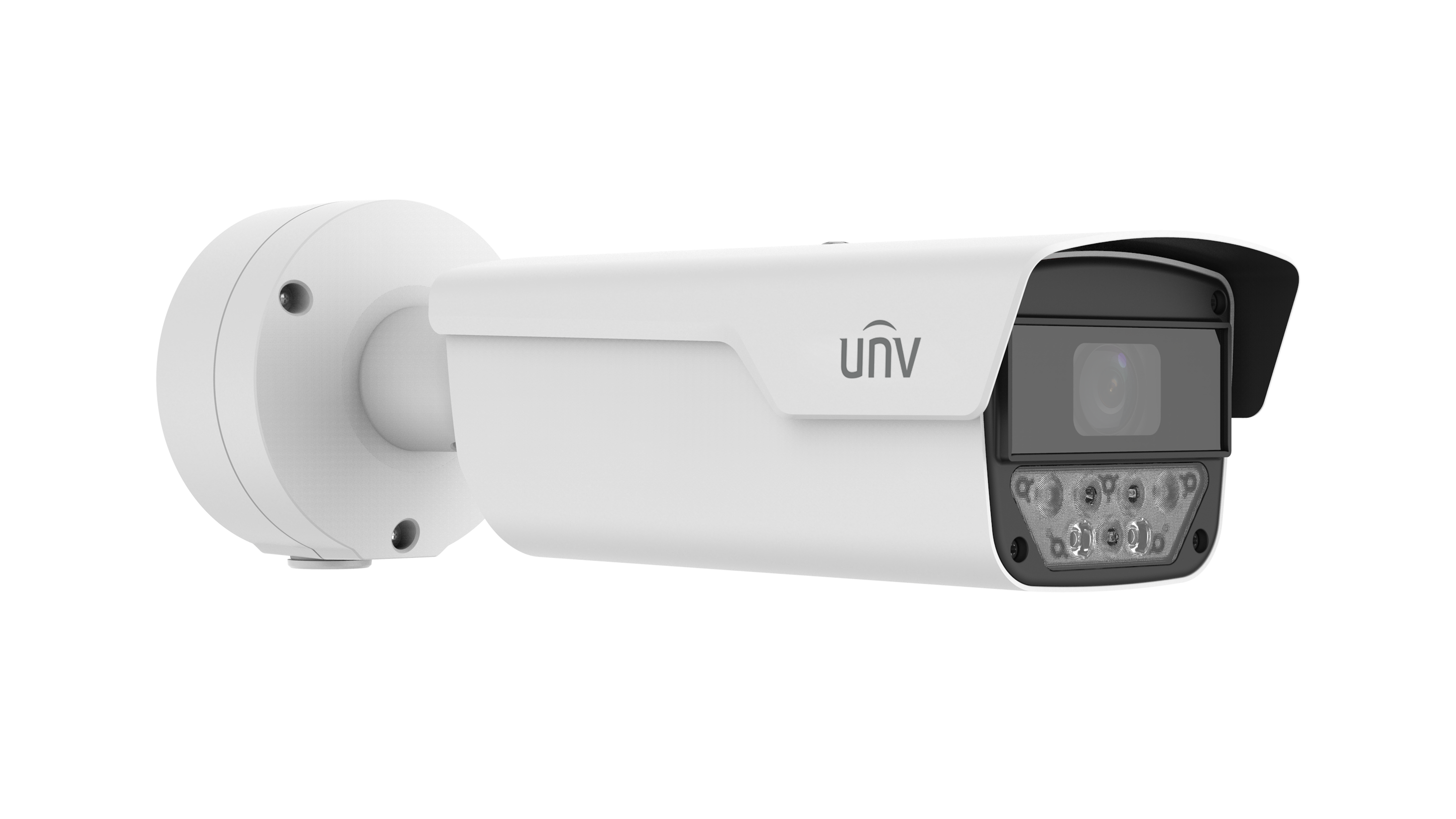

Uniview - PKC2640@Z80-P - 4MP Long range White Light LPR(8-32mm)
Part number:
PKC2640@Z80-P
Price:
LPR camera is mainly used for license plate recognition at the entrance and exit. It adopts intelligent supplementary lighting system and supports all-weather HD imaging. It can capture clear vehicle pictures both at day and night.
Features:
- Suitable for park entrances and road scenarios
- Maximum vehicle speed support of 80 km/h
- Two models available: Infrared and White Light
| Model | PKC2640@Z28-P | PKC2640@Z80-IR-P | PKC2640@Z80-P |
| Sensor | 1/1.8” 4MP CMOS | 1/1.8” 4MP CMOS | 1/1.8” 4MP CMOS |
| Focal length | 2.8 to 12mm, motorized zoom | 8 to 32mm, motorized zoom | 8 to 32mm, motorized zoom |
| Shutter | Auto/Manual, range: 1/25 to 1/100000 s | ||
| Minimum illumination | 0.001lux (F1.6) | ||
| Fill light | LED | IR | LED |
| Image collection format | 2688*1520@30 (default), 2688*1520@25 | ||
| Resolution | Main stream: 2688*1520, 1080P (default), 720P, D1; Sub stream: 720P (default), D1, 2CIF, CIF; Third stream: D1 (default), 2CIF, CIF | ||
| Frame rate | 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 | ||
| Video compression | H.264 (default), H.265 | ||
| ROI | Supports up to 8 regions | ||
| Video OSD | Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents | ||
| Image OSD | Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allow list, image authentication ID, custom contents (3 items), location | ||
| Application scenario | Vehicle speed ≤80km/h Supports simultaneous application to road and entry/exit scenes without switching - | ||
| List configuration | Supports allow list and block list configuration, each list allows 20,000 items Supports import, export, add, and delete operations | ||
| Network interface | 1 × 10M/100M RJ45 | ||
| Serial port | 1 × RS485 | ||
| Boolean output | 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A | ||
| Boolean input | 2 inputs, supports level/Boolean, with max level up to DC 5V | ||
| Audio interface | 1 × audio input, 1 × audio output | ||
| Storage interface | 1 × Micro SD card slot | ||
| Power supply | DC12V + 25% - 10% Max. power consumption: 20W Supports PoE (802.3at, class 4) | ||
| Dimensions (L×W×H) | 406mm x 126mm x 130mm | ||
| Weight | 2.1kg | ||
| Operating environment | -40℃ to 60℃, ≤90% RH | ||
| Ingress protection | IP67, IK10 | ||
