UNV - PKC2641-Z100-IR-P - 4MP Long Range IR Light LPR 10-50mm
• 1/1.8" progressive scan CMOS.
• Up to 2688 × 1520 resolution with real-time video.
• Supports Wise-ISP for enhanced image quality.
• Automatic gain control, white balance, and WDR for various light conditions.
• Video frame rate upgraded to 60 fps.
• Built-in vehicle and license plate recognition algorithm can recognize standard license plates of multiple countries.
• Supports plate allowlist and blocklist configuration.
• Supports Micro SD cards of up to 512GB.
• IP67 and IK10 protection.
| Camera | |
|---|---|
| Sensor | 1/1.8-inch 4MP CMOS |
| Focal Length | 10 to 50mm |
| Shutter | Auto, range: 1/500 to 1/100000s |
| Minimum Illumination | 0.002lux (F1.7) |
| Field of View (FOV) | Horizontal: 34.3° to 8.7° Vertical: 19.9° to 4.8° Diagonal: 40.5° to 9.8° |
| Wide Dynamic Range (WDR) | 120 dB |
| Signal-to-Noise Ratio (S/N) | > 50 dB |
| Image | |
| Image Collection Format | 2688*1520@60, 2688*1520@50, 2688*1520@30 (default), 2688*1520@25 |
| Frame Rate | 60, 50, 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 |
| Video Compression | H.264 (default), H.265 |
| Region of Interest (ROI) | Supports up to 8 regions |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Digital Noise Reduction | 3D DNR |
| Video OSD | Supports 8 overlay areas (date, time, date & time, zoom ratio, custom content) |
| Image OSD | Supports 8 overlay areas (time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom content (3 items), location) |
| Display Parameters | |
| Resolution | Main stream: 2688*1520, 1080P (default), 720P, D1 Sub stream: 720P (default), D1, 2CIF, CIF Third stream: D1 (default), 2CIF, CIF |
| Smart Features | |
| Application Scenario | ≤ 80km/h for regular roads; camera with focal length of 10 to 50mm can be used for regular roads |
| Vehicle Detection Mode | Supports video detection |
| License Plate Recognition | Supports recognition of license plates with numbers and letters by default |
| List Configuration | Supports allowlist and blocklist (20,000 items each) with import/export/add/delete operations |
| Barrier Opening Policy | Open barrier only for recognized vehicles Open barrier for all vehicles Open barrier only for vehicles on allowlist Open barrier for vehicles not on blocklist Configurable Boolean output ID |
| Storage | |
| Edge Storage | Supports ANR with a Micro SD card, up to 512GB |
| Structure | |
| Illumination | Built-in integrated illumination module (5 IR LEDs), 50m illumination distance, automatic on/off control |
| Bracket | 3-axis mounting bracket |
| Junction Box | Comes with a junction box for storing tail cable |
| Network | |
| Protocols | IGMP, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, IPv4 |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), SDK, API |
| Interface | |
| Network Interface | 1 × 10M/100M RJ45 |
| Serial Port | 2 × RS485 |
| Boolean Output | 2 relay outputs (withstand voltage: AC 125V/0.3A, DC 30V/1A) |
| Boolean Input | 2 x input (supports level up to DC 5V and switch signal) |
| Audio Interface | 1 × audio input, 1 × audio output |
| Storage Interface | 1 × Micro SD card slot |
| Reset Button | Support |
| Wiegand Interface | Supports Wiegand output |
| General | |
| Weight | 2.02 kg |
| Ingress Protection | IP67, IK10 |
| Power Supply | DC12V ±25% Max. power consumption: 20W Supports PoE (802.3at, class 4) |
| Dimensions (L×W×H) | 406 mm × 126 mm × 130 mm |
| Operating Environment | -40℃ to 60℃, ≤90% RH |
| Heater | N/A |
| Compliance | |
| NDAA Compliant | Support |
| Certification | |
| EMC | CE-EMC (EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4 2014) |
| Safety | EN IEC 62368-1:2020+A11:2020 UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC60529:1989+AMD1:1999+AMD2:2013), IK10 (IEC 62262:2002+AMD1:2021) |

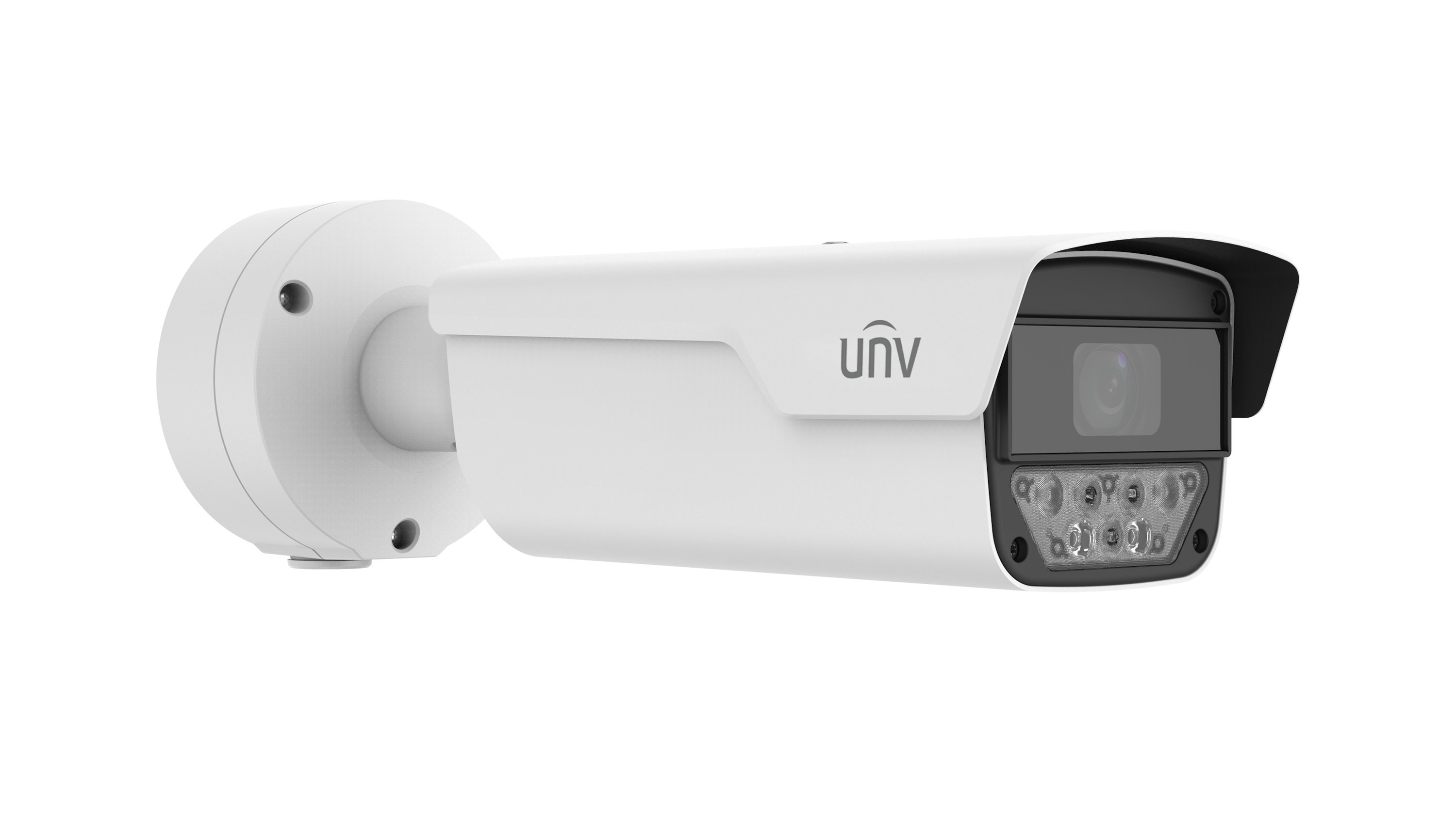

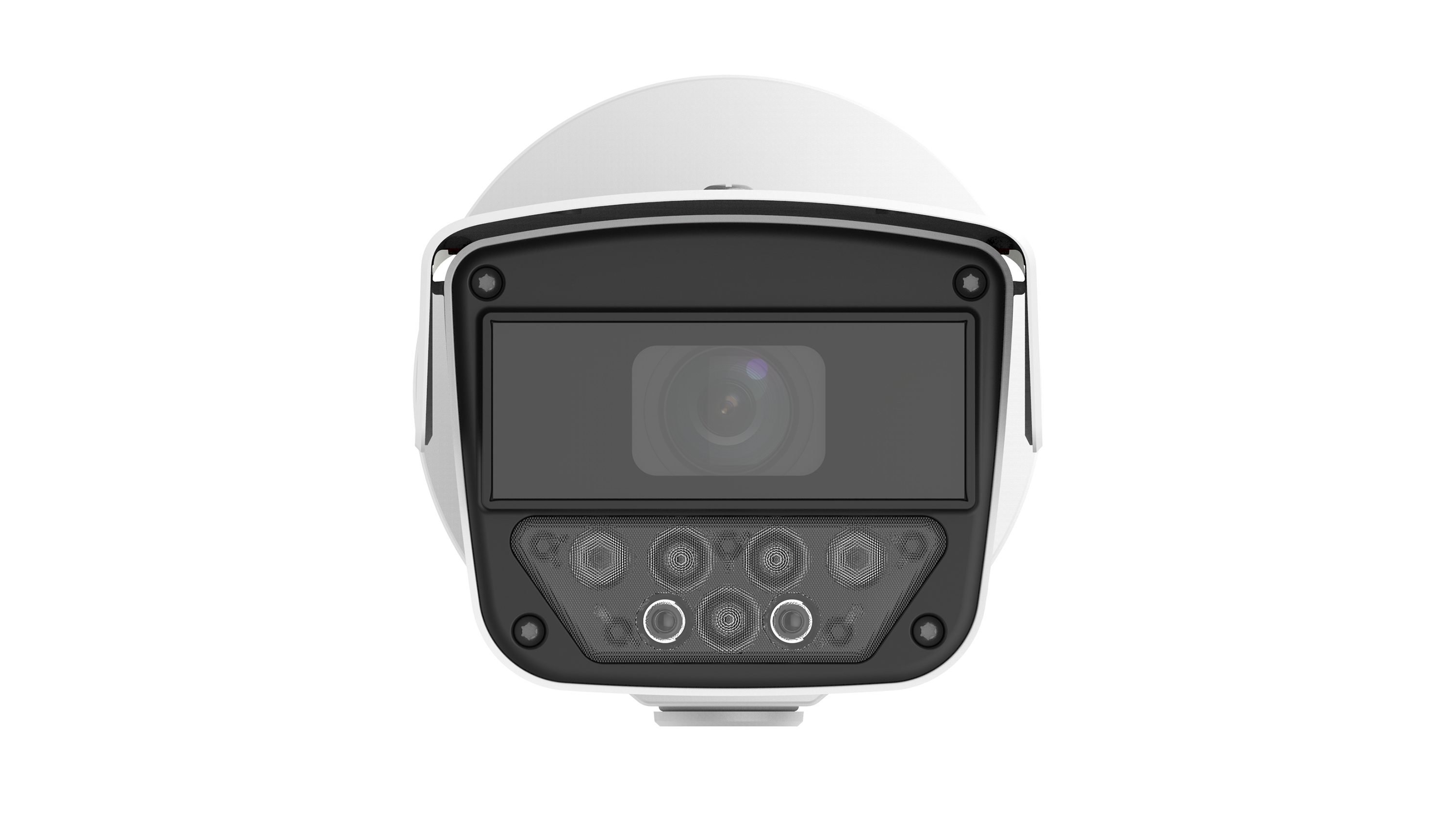

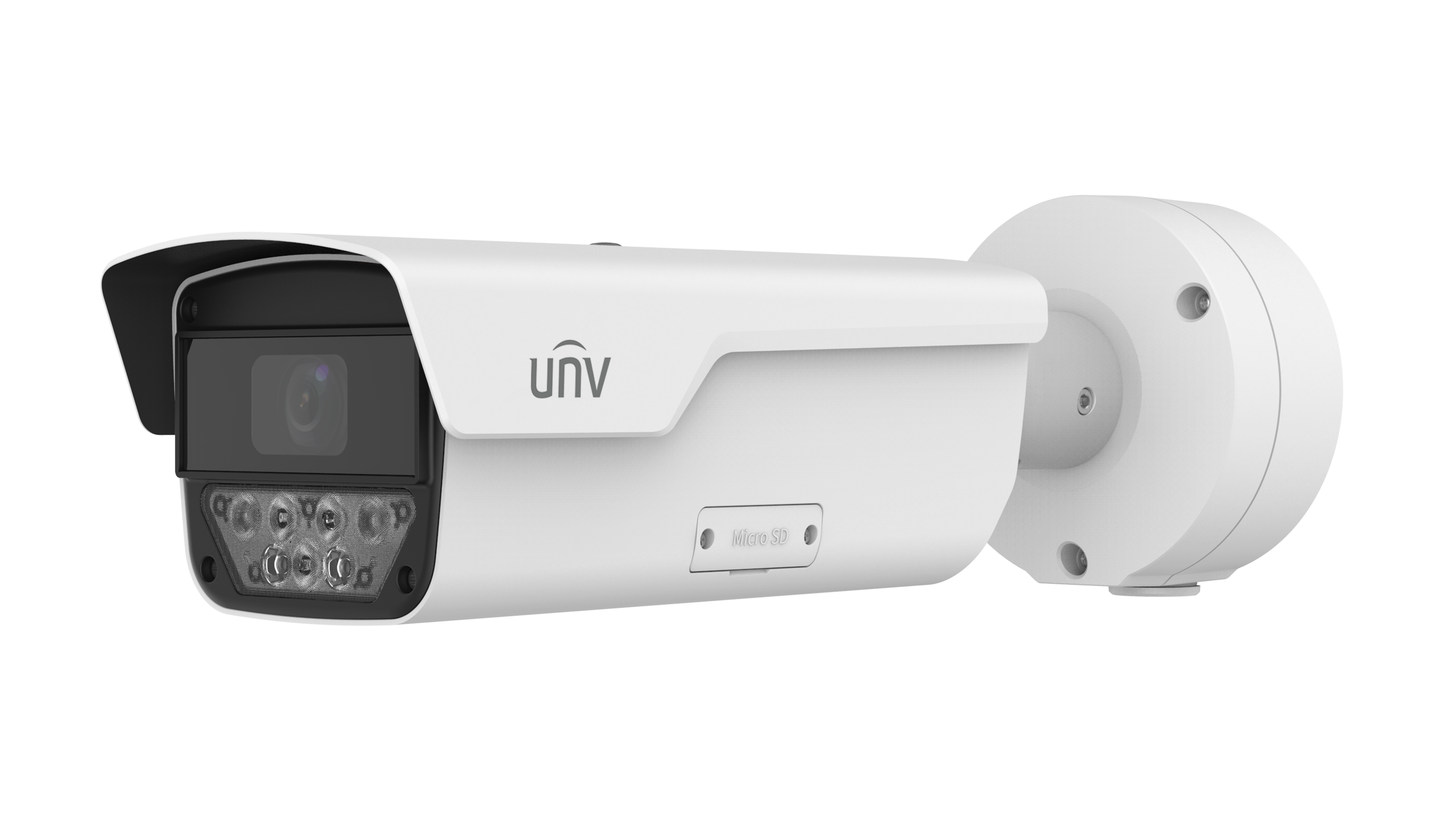

This camera is a 4MP license plate recognition camera designed for vehicle access control. It features a 1/1.8-inch CMOS sensor and a powerful 10mm to 50mm motorized varifocal lens, allowing the horizontal field of view to be adjusted from 34.3° (wide) down to 8.7° (telephoto) to focus on lanes at varying distances. It captures a main video stream of 2688 x 1520 at up to 60 frames per second.
The imaging technologies include 120 dB Wide Dynamic Range and 3D Digital Noise Reduction to handle challenging light conditions like glare. Its primary function is video-based license plate recognition for vehicles traveling up to 80 km/h. It supports managing allow lists and block lists of up to 20,000 entries each and can trigger its two relay outputs to control barriers. The housing offers robust protection with IP67 (dust/water) and IK10 (vandalism) ratings. It operates in an extended temperature range of -40°C to 60°C and can be powered by DC 12V or PoE+ (IEEE 802.3at), with a maximum power consumption of 20 watts.
