UNV - PKC2641-Z80-IR-P - 4MP Long Range IR Light LPR 8-32mm
• 1/1.8" progressive scan CMOS.
• Up to 2688 × 1520 resolution with real-time video.
• Supports Wise-ISP for enhanced image quality.
• Automatic gain control, white balance, and WDR for various light conditions.
• Video frame rate upgraded to 60 fps.
• Built-in vehicle and license plate recognition algorithm can recognize standard license plates of multiple countries.
• Supports plate allowlist and blocklist configuration.
• Supports Micro SD cards of up to 512GB.
• IP67 and IK10 protection.
| Camera | |
|---|---|
| Sensor | 1/1.8-inch 4MP CMOS |
| Focal length | 8 to 32mm |
| Shutter | Auto, range: 1/500 to 1/100000s |
| Minimum illumination | 0.002lux (F1.7) |
| Field of View (FOV) | Horizontal: 42° to 15.5° Vertical: 23.1° to 8.8° Diagonal: 48.5° to 18.3° |
| WDR | 120 dB |
| S/N | > 50 dB |
| Image | |
| Image collection format | 2688×1520@60, 2688×1520@50, 2688×1520@30 (default), 2688×1520@25 |
| Frame rate | 60, 50, 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 |
| Video compression | H.264 (default), H.265 |
| ROI | Supports up to 8 regions |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Digital Noise Reduction | 3D DNR |
| Video OSD | Supports 8 overlay areas; date, time, date&time, zoom ratio, custom contents |
| Image OSD | Supports 8 overlay areas; time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location |
| Display Parameters | |
| Resolution | Main stream: 2688×1520, 1080P (default), 720P, D1 Sub stream: 720P (default), D1, 2CIF, CIF Third stream: D1 (default), 2CIF, CIF |
| Smart | |
| Application scenario | ≤ 80km/h for regular roads Camera with focal length of 8 to 32mm suitable for regular roads |
| Vehicle detection mode | Supports video detection |
| License plate recognition | Supports recognition of license plates with numbers and letters |
| List configuration | Supports allowlist and blocklist; up to 20,000 items per list; import, export, add, delete |
| Barrier opening policy | Open only for recognized vehicles Open for all vehicles Open only for allowlist vehicles Open for vehicles not on the blocklist |
| Boolean output ID | Configurable |
| Storage | |
| Edge storage | Supports ANR with Micro SD card, up to 512GB |
| Structure | |
| Illumination | Built-in illumination module with 5 IR LEDs, 50m distance, automatic on/off |
| Bracket | 3-axis mounting bracket |
| Junction box | Included for storing tail cable |
| Network | |
| Protocols | IGMP, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, IPv4 |
| Compatible integration | ONVIF (Profile S, G, T), SDK, API |
| Interface | |
| Network interface | 1 × 10M/100M RJ45 |
| Serial port | 2 × RS485 |
| Boolean output | 2 relay outputs, AC 125V/0.3A, DC 30V/1A |
| Boolean input | 2 inputs, supports level (up to DC 5V) and switch signal |
| Audio interface | 1 × audio input, 1 × audio output |
| Storage interface | 1 × Micro SD card slot |
| Reset button | Support |
| Hardware Specification | |
| Wiegand interface | Supports Wiegand output |
| General | |
| Weight | 1.91 kg |
| Ingress protection | IP67, IK10 |
| Power supply | DC 12V (+25% / -25%), PoE (802.3at, Class 4) |
| Max. power consumption | 20 W |
| Dimensions (L×W×H) | 406 × 126 × 130 mm |
| Operating environment | -40℃ to 60℃, ≤90% RH |
| Heater | N/A |
| Compliance | |
| NDAA compliant | Support |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) |
| FCC | FCC CFR 47 Part 15 B, ANSI C63.4 2014 |
| Safety | EN IEC 62368-1, UL 62368-1 |
| Environment | CE-RoHS, WEEE |
| Protection | IP67 (IEC 60529), IK10 (IEC 62262) |

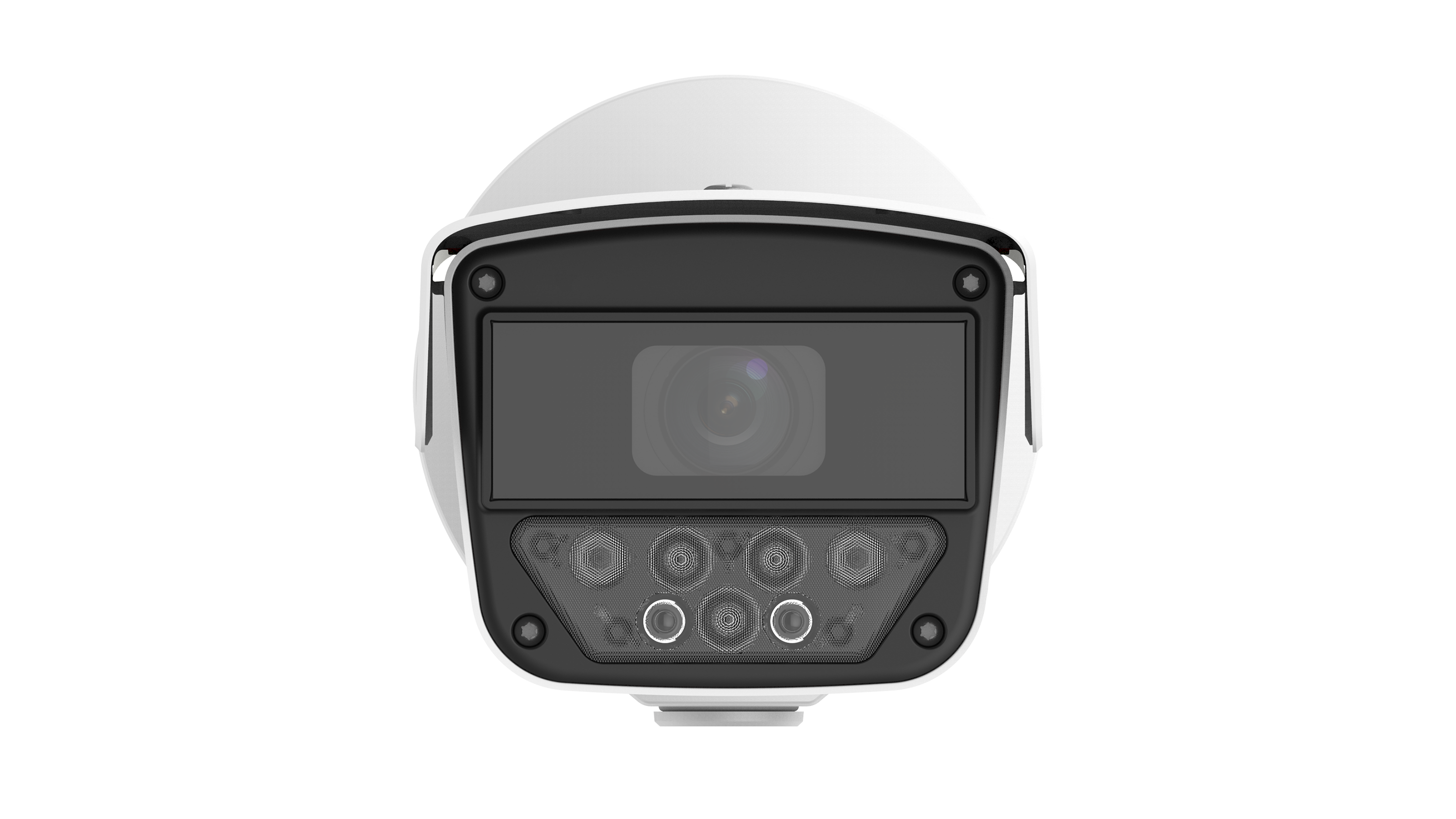

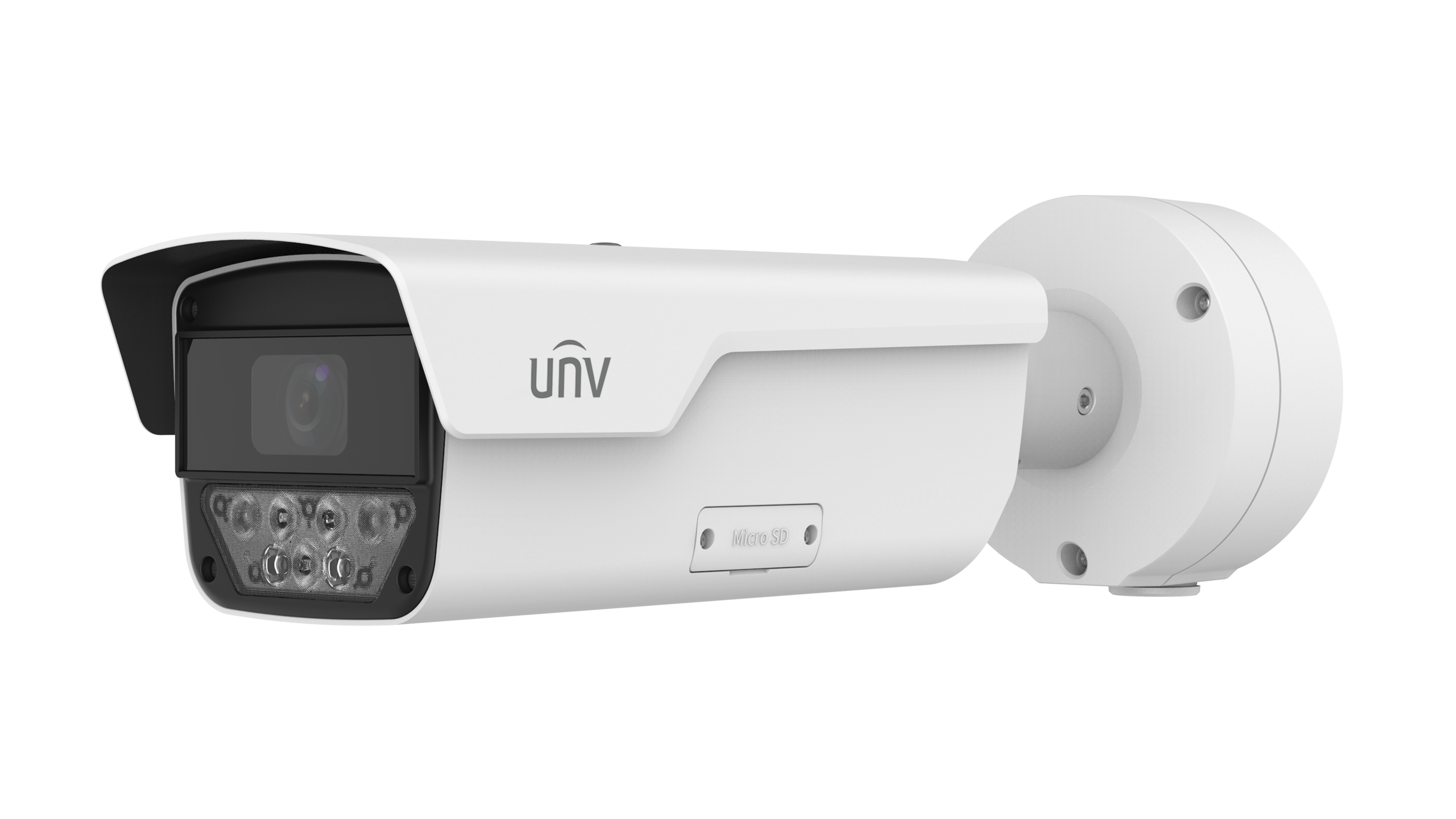

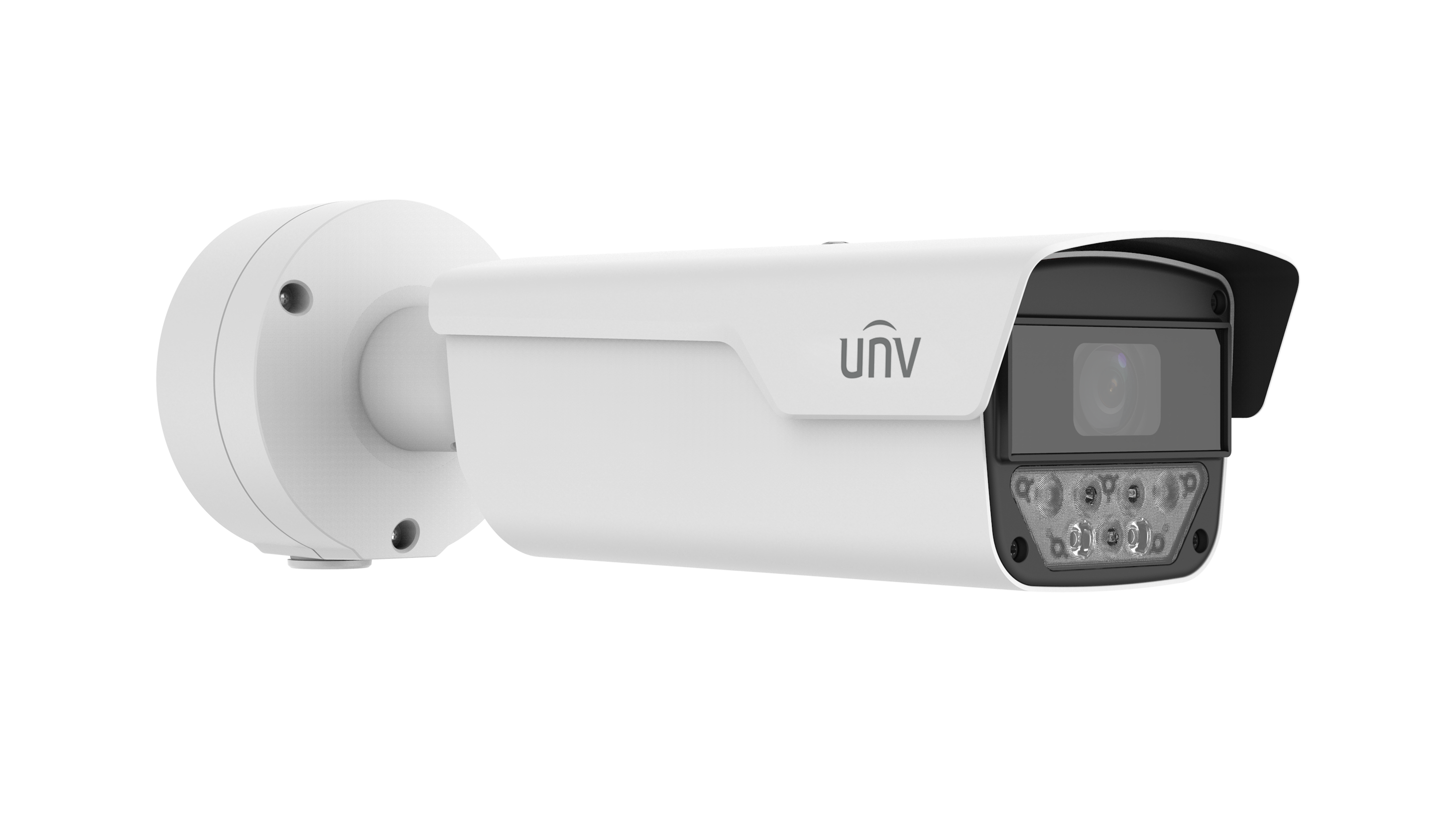

The PKC2641-Z80-IR-P is a 4MP bullet-style IP camera based on a 1/1.8-inch progressive scan CMOS sensor. It delivers video at resolutions up to 2688 × 1520 with real-time output and supports frame rates up to 60 fps. Image quality is enhanced through Wise-ISP processing. The camera incorporates an onboard vehicle and license plate recognition algorithm capable of recognizing standard license plates from multiple countries. Edge storage is supported via a Micro SD card slot with capacity up to 512 GB.
Image processing features include automatic gain control, automatic white balance, and WDR to handle varying lighting conditions. The camera housing provides IP67 ingress protection and IK10 impact resistance, indicating suitability for exposed or physically demanding environments. No additional environmental limits, power specifications, or optical parameters are defined in the provided specifications.
