Product Overview

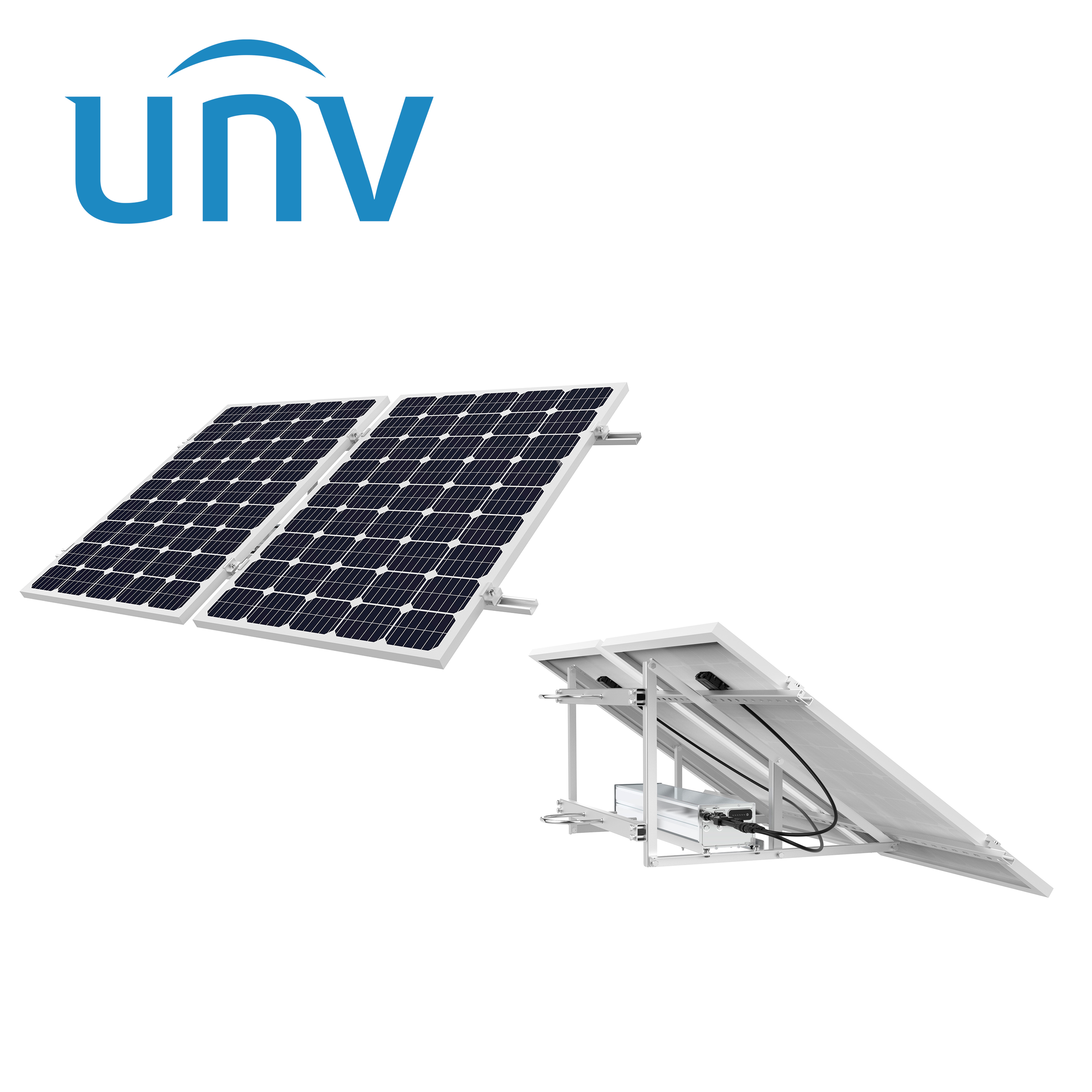

This all-in-one solar power kit provides independent power for paired 4G or Wi-Fi security cameras. It combines dual monocrystalline solar panels, an integrated lithium battery, an MPPT solar controller, and dedicated mounting hardware for continuous outdoor operation.
Key Configuration
Dual high-efficiency monocrystalline solar panels; integrated high-capacity lithium battery; self-developed MPPT solar controller; specialized mounting hardware; OSD data overlay for battery percentage display; weatherproof enclosure; built-in internal heaters for sub-zero operation.
Key Features
• Independent solar power station for 4G or Wi-Fi security cameras
• Dual monocrystalline panels capture solar energy during the day
• MPPT solar controller regulates charging to reduce battery wear
• OSD overlay displays battery percentage on the camera live view
• Weatherproof housing with internal heaters for freezing conditions
Technical Context
The system stores daytime solar energy in its lithium battery and regulates charge flow through the MPPT controller to support stable camera operation. The OSD battery overlay allows users to monitor power reserves directly through the connected camera video feed.
Installation Notes
The kit includes specialized mounting hardware and is intended for outdoor camera power deployments. Its weatherproof casing and internal heaters support installation in cold environments where battery protection is required.
| Product Description | |
| Product Type | Off-grid Solar Power System Kit |
| Description | The Uniview SLR-B2560P400-H-IN is a professional, high-capacity off-grid solar power kit built to provide a continuous power supply for outdoor CCTV security setups. It is engineered primarily for sites without an established electrical grid, such as construction sites, agricultural fields, farms, and national parks. |
| System Components | Dual high-efficiency monocrystalline solar panels, integrated high-capacity lithium battery, self-developed MPPT solar controller, and specialized mounting hardware |
| Function | Captures solar energy during the day, regulates charging flow efficiently to avoid battery wear, and uses battery reserves to keep paired 4G or Wi-Fi security cameras operational 24/7 |
| Smart Monitoring | OSD data overlay allows users to read exact battery percentages directly on the camera's live video feed |
| Heating Protection | Built-in internal heaters allow safe operation in freezing sub-zero environments and help prevent battery failure or freezing |
| Power & Battery Specs | |
| Battery Capacity | 2560Wh (Watt-hours) |
| Battery Type | Industrial Lithium Battery |
| Battery Operational Life | Up to 2000 cycles |
| Battery Voltage | 12.8V |
| Maximum Output Current | 12A |
| DC Input Voltage Range | 14.6V to 30V |
| Solar Panel Type | High-efficiency Monocrystalline Silicon cells (Conversion efficiency >22%) |
| Max Solar System Power Output | 400W peak output (distributed across dual panels) |
| Construction & Weatherproofing | |
| Environmental Protection Rating | IP67 certified for both the battery and the solar panel assemblies |
| Casing Material | Heavy-duty, windproof, rainproof, and anti-corrosion metal casing |
| Panel Frame | Anodized aluminum alloy frame to withstand high structural loads |
| Panel Glass | High-transmittance tempered glass with a UV-resistant EVA backsheet |
| Built-in Heating Module | Activates automatically in freezing climates to preserve optimal battery lifespan |
| Weight Profiles | |
| Battery Weight | 20.8 kg (approx. 45.8 lbs) |
| Solar Panel Weight | 13 kg per unit (dual setup) |
| Mounting Bracket Weight | 19.7 kg |
