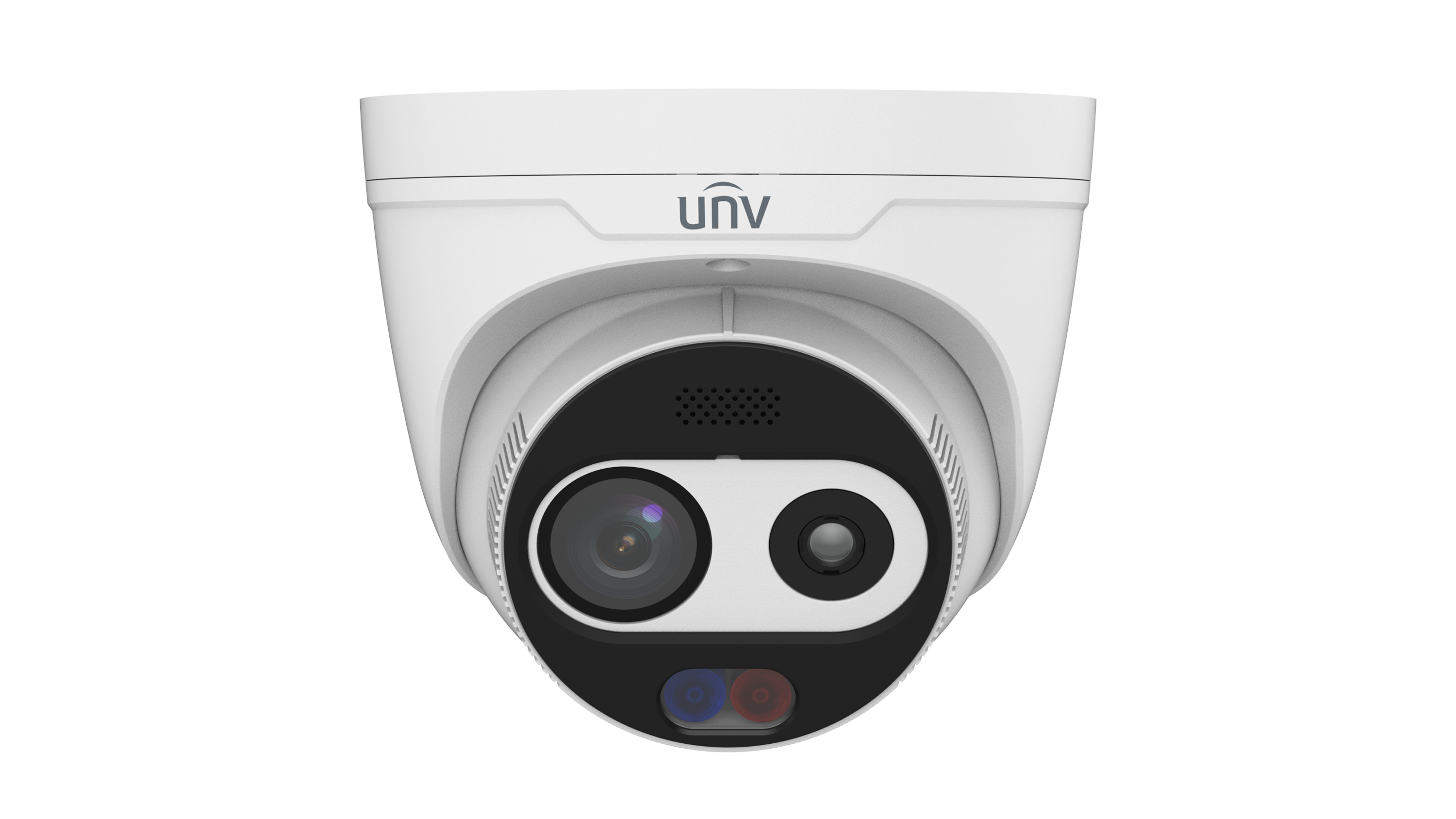

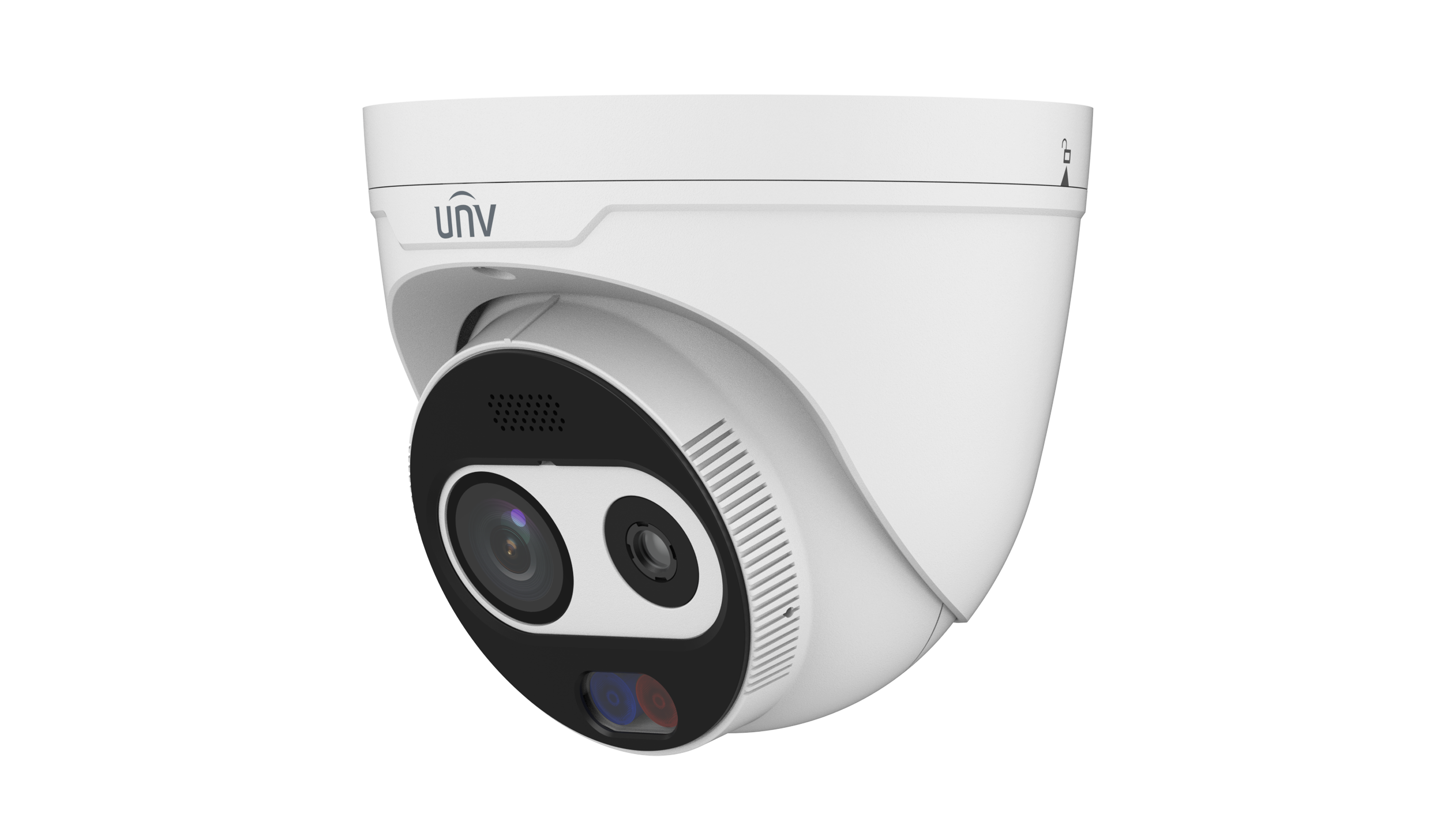

Uniview - TIC3612SA-F2-4F3AC-I1 - Dual-spectrum Thermal Network Turret Camera Thermal:256*192(2.1mm) Optical: 4MP(2.6mm)
Part number:
TIC3612SA-F2-4F3AC-I1
Price:
Dual-spectrum Thermal Network Turret Camera Thermal:256*192(2.1mm) Optical: 4MP(2.6mm). Thermal & Optical Dual-spectrum Turret Network Camera.
Features:
- Thermal & Optical dual spectrum image, dual video with single IP address, adaptable to more various scenes
- 1/2.8" target surface, high sensitivity sensor, satisfy the need of starlight monitoring
- Thermal module support reliable fire detection, smoking detection and fire shield area
- Thermal module supports temperature detection and cold&hot spot tracking which highlights the abnormal temperature, and link to alarm
- Thermal & Optical dual spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion
- Optical module supports smog recognition, which can help with fire alarm reconfirm
- Support picture in picture mode, real time contrast live, more convenient and clear
- Support audio and light alarm, with red and blue warning lights built in
- Ultra 265, H.265, H.264, MJPEG
- Max 2688*1520@30fps in the optical module and Max 960P@30fps in the thermal module
- DC12V±25% or PoE power supply
- Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 G
| Optical | Thermal | |
| Camera | Description | |
| Sensor | 1/2.8" CMOS | Vanadium Oxide Uncooled Focal Plane Arrays |
| Min. Illumination | Colour: 0.01 lux (F2.0, AGC ON) B/W: 0.005 lux(F2.0,AGC ON) 0 lux with IR | N/A |
| Day/Night | IR-cut filter with auto switch (ICR) | N/A |
| Original Resolution -Thermal | N/A | 256*192 |
| Pixel Size | N/A | 12 um |
| NETD | N/A | < 50 mk @ F1.0 @ 25 ℃ |
| Shutter | Auto/Manual, 1 ~ 1/100000s | N/A |
| WDR | 120dB | N/A |
| S/N | >56dB | N/A |
| Lens | Description | |
| Focal Length | 2.6 mm | 2.1 mm |
| Iris | F1.6 | F1.0 |
| Field of View (H) | 129.4° | 90° |
| Field of View (V) | 69.9° | 65.6° |
| Field of View (D) | 168.2° | 117.0° |
| DORI | Description | |
| DORI Distance (D etect) | 58.5m(191.9ft) | N/A |
| DORI Distance (O bserve) | 23.4m(76.8ft) | N/A |
| DORI Distance (R ecognize) | 11.7m(38.4ft) | N/A |
| DORI Distance (Id | 5.2m(19.2ft) | N/A |
| entify) | ||
| Illuminator | Description | |
| Wavelength | 750 nm | N/A |
| Illumination Distan ce (IR) | 30m | N/A |
| Light On/Off Contr ol | Auto/Manual | N/A |
| Video | Description | |
| Frame Rate | 4MP(2688*1520), Max 30fps | 960P(1280*960), Max 30fps |
| Video Compressio n | Ultra 265|H.265|H.264|MJPEG | |
| Video Bit Rate | 128 Kbps ~ 16 Mbps | |
| U-code | Support | |
| ROI | Support | |
| Video Stream | Triple Streams | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 8 areas (8 blacks/ 8 mosaics) | N/A |
| Image | Description | |
| White Balance | Auto|Outdoor|Fine Tune|Sodium Lamp|Locked|Auto 2 | N/A |
| Digital Noise Redu ction | 2D/3D DNR | |
| Flip | Normal|Flip Vertical|Flip Horizontal|180°|90°Cloc kwise|90°Anti-clockwise | Normal|Flip Vertical|180°|Flip Horizontal|90°Cloc kwise|90°Anti-clockwise |
| Defog | Digital Defog | N/A |
| Palette-Thermal | N/A | white hot|lava|iron oxide red|hot iron|medical|arctic|r ainbow 1|rainbow 2|rainbow 3|depict hot|ice hot|blac k hot|mazarine|fusion|red hot|green hot|color 1|color 2|rain|puce |
| Intelligent | Description | |
| Smart Intrusion Pr evention | Cross line detection, Intrusion detection (support fal se alarm filtering and the classification of human, no n-motor vehicle and vehicle) | Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human and vehicle ) |
| Smoke and Fire D | Support | N/A |
| etection | ||
| Temperature Meas urement Accuracy | N/A | ±8°C (±14.4°F) or ±8% (whichever is greater) |
| Temperature Rang e | N/A | Selectable between -20°C ~ 150°C (- 4°F ~ 302°F) and 100°C ~ 550°C (212°F ~ 1 022°F) |
| Temperature Dete ction-Thermal | N/A | Thermal channel supports rule- based temperature measurements.Supports real- time display of the highest, lowest, and average tem peratures in the rule-defined area on the screen |
| Smoking Detection -Thermal | N/A | Thermal channel supports the detection of smoking behavior in the environment |
| Events | Description | |
| Fire Detection | N/A | Support |
| Basic Detection | Motion Detection|Tampering Alarm|Audio Detection | N/A |
| General Function | Watermark|IP Address Filtering|Access Policy|ARP Protection|RTSP Authentication|User Authentication|H TTP Authentication|Alarm Input|Alarm Output | |
| Audio | Description | |
| Audio Compressio n | G.711U|G.711A | |
| Audio Bitrate | 128 Kbps | |
| Two-way Audio | Support | |
| Suppression | Support | |
| Sampling Rate | 16KHZ | |
| Storage | Description | |
| Edge Storage | Micro SD, up to 512 GB | |
| Network Storage | ANR | |
| Network | Description | |
| Protocols | IGMP|RTP|SMTP|IPv4|IPv6|ICMP|ARP|TCP|UDP|DHCP|PPPoE|RTSP|RTCP|RTMP|DNS|DDNS|NTP|FT P|UPnP|HTTP|HTTPS|802.1x|SNMP|QoS|SSL/TLS|SSH | |
| Compatible Integra tion | ONVIF (Profile S, Profile G, Profile T)|API|SDK | |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |
| Client | EZStation|UNV-Link| UNV-Link Pro | |
| Web Browser | Plug- in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |
| Interface | Description | |
| Built-in Mic | Support | |
| Built-in Speaker | Support | |
| Audio I/O | 1 Input: impedance 1kΩ; amplitude 2.5V [p-p]|1 Output: impedance 600Ω; amplitude 2V [p-p] | |
| Alarm I/O | 2/2 | |
| Serial Port | 1 channel RS485 interface | |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | |
| Video Output | N/A | 1 BNC (For debugging) |
| Certification | Description | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3- 2: 2019+A1: 2021,EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |
| Safety | CE LVD (EN IEC 62368-1:2020+A11:2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |
| General | Description | |
| Power | DC12V(±25%), PoE(IEEE802.3af) | |
| Power Consumptio n | Max 12W | |
| Power Interface | Ø 5.5 mm coaxial power plug | |
| Dimensions | Φ129 x 114 mm(Φ5.08" x 4.49")(Φ x H) | |
| Weight | 0.72kg(1.6lb) | |
| Working Environm ent | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) | |
| Storage Environm ent | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) | |
| Surge Protection | 6KV | |
| Reset Button | Support | |
| RTC | Support | |
| Web Client Langu | 1 Language | |
| age | English | |
| Live View | Description | |
| Maximum Bitstrea m | 35 | |
| Maximum Bandwid th | 50Mbps | |
| OSD Font | Vector | |
| OSD Color | Support | |
| OSD Character Nu mber | 40 | |
| Other | Description | |
| Corridor Mode | Support | |
| Software Version | Q6202 | |
