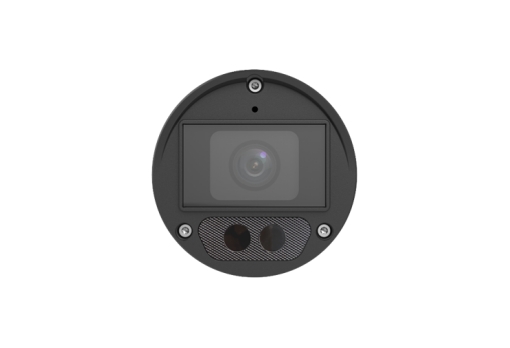

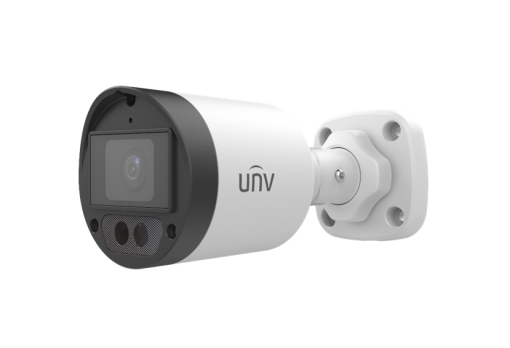

Uniview - UAC-B122-APF28LM - UNV 2MP IR Light POC Analog Bullet 2.8mm
Part number:
UAC-B122-APF28LM
Price:

UAC-B122-APF28LM is a 2MP LightHunter PoC fixed IR bullet analog camera with a high-performance 1/2.9-inch CMOS sensor and 3D noise reduction technology. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. In addition, the PoC power supply system can achieve video and power transmission on one cable, simplifying wiring and installation work, and improving structural flexibility. It supports IR-cut filter with auto-switch (ICR) and provides color images at daytime and black/white images at night. The camera also supports audio input and synchronous transmission of audio and video.



Features:

  • High quality imaging with 2MP resolution
  • TVI/AHD/CVI/CVBS
  • Supports IR-cut filter with auto-switch (ICR)
  • LightHunter monitoring with high-sensitivity sensor
  • 3D noise reduction technology delivers clean and sharp images
  • Supports 180° horizontal flip, 180° vertical flip
  • OSD configuration menu, easy to operate
  • IP67 waterproof and dustproof design, high reliability
  • OSD configuration menu in 11 languages
  • Built-in microphone for high quality audio transmission via coaxial cables
  • Supports digital defog
  • Support PoC power supply
ModelUAC-B122-APF28LM
Sensor
Pixel2MP
Size1/2.9"
Minimum illumination

0.005 lux (F1.6, AGC ON)

0 lux (IR ON)

Lens
Lens2.8mm
Lens mountM12
Angle of viewH: 101.5°  V: 56.9°  D: 117.4°
Illuminator
IlluminatorTwo IR illuminators
Illumination distance40m
Lifetime≥60,000 hours
Video
Resolution

1080P: 1920(H)×1080(V)

720P: 1280(H) ×720(V)

Frame rate

TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps

CVBS: PAL, NTSC

Shutter time

PAL: 1/25s-1/50000s

NTSC: 1/30s–1/50000s

Exposure modeFour modes: Global (default), BLC, HLC, DWDR
Day/NightThree modes: Auto (default), Day, Night
Digital noise reduction2D/3D
White balanceTwo modes: Auto (default), Manual
WDRDWDR
Smart IRSupport
FlipSupports 180° horizontal flip, 180° vertical flip
DefogDigital Defog
Audio
MicrophoneBuilt-in Mic
Camera audio

TVI: 1080P@25fps, 1080P@30fps

CVI: 1080P@25fps, 1080P@30fps

* Audio function of the POC series camera is only available when the camera is used with our POC series XVRs.

Interface
Power5.5mm power interface
Video outputBNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature-30°C to 60°C (-22°F to 140°F)
Humidity≤95% (RH, non-condensing)
Surge protection4kV
General
PowerDC 12V (±25%)/PoC, with reverse polarity protection, Max 3.2W
Mount3D bracket supplied, surface mount (default), optional backbox, pole mount bracket
Dimensions154mm*66mm*66mm (L*W*H)
MaterialMetal+Plastic
Weight256g (0.56lb)
OSD menu language

11 Languages

English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish

Certification
EMC

CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)

FCC (FCC 47 CFR part15 B)

SafetyCE-LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
