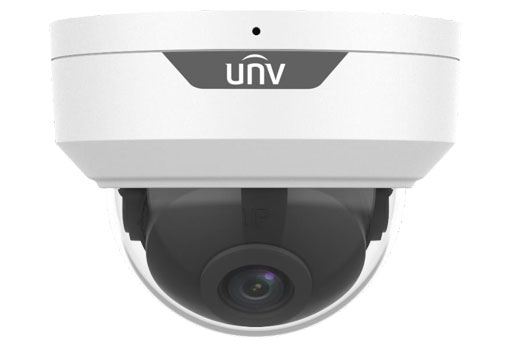

Uniview - UAC-D128-ADF40MS - UNV 8MP IR Light Analog Dome 4.0mm
Part number:
UAC-D128-ADF40MS
Price:

UNV 8MP IR Light Analog Dome 4.0mm



UAC-D128-ADF28(40)MS is a 8MP LightHunter fixed IR dome analog camera with a high-performance 1/2.7-inch CMOS sensor and 3D noise reduction technology. It supports flexible switch among TVI/CVI/AHD/CVBS through DIP switches, effectively enhancing product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. It supports IR-cut filter with auto-switch (ICR) and provides color images at daytime and black/white images at night. The camera also supports audio input and synchronous transmission of audio and video.



Features:

  • High quality imaging with 8MP resolution
  • TVI/CVI/AHD/CVBS
  • Supports IR-cut filter with auto-switch (ICR)
  • LightHunter monitoring with high-sensitivity sensor
  • 3D noise reduction technology delivers clean and sharp images
  • Supports 180° horizontal flip, 180° vertical flip
  • OSD configuration menu, easy to operate
  • IP67 waterproof and dustproof design, high reliability
  • OSD configuration menu in 11 languages
  • Built-in microphone for high quality audio transmission via coaxial cables
  • 120dB true WDR technology enables clear image in strong light scene
ModelUAC-D128-ADF40MS
Sensor
Pixel8MP
Size1/2.7"
Minimum illumination0.005 lux (F1.6, AGC ON)
0 lux (IR ON)
Lens
Lens4.0mm
Lens mountM12
Angle of viewH: 86.8°  V: 49.4°  D: 99.9°
Illuminator
IlluminatorOne IR illuminator
Illumination distance30m
Lifetime≥60,000 hours
Video
Resolution4K: 3840(H) × 2160(V)
5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
4MP: 2560(H)×1440(V)
Frame rateCVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps
TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
CVBS: PAL, NTSC
Shutter timePAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s
Exposure modeFour modes: Global (default), BLC, HLC, WDR
Day/NightThree modes: Auto (default), Day, Night
Digital noise reduction2D/3D
White balanceTwo modes: Auto (default), Manual
WDR120dB WDR
Smart IRSupport
FlipSupports 180° horizontal flip, 180° vertical flip
DefogN/A
Audio
MicrophoneBuilt-in Mic
Camera audioCVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
Interface
Power5.5mm power interface
Video outputBNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature-30°C to 60°C (-22°F to 140°F)
Humidity≤95% (RH, non-condensing)
Surge protection4kV
General
PowerDC 12V (±25%), with reverse polarity protection, Max 3.7W
MountSurface mount (default), optional backbox, wall mount bracket
DimensionsΦ109mm*83mm (diameter*height)
MaterialMetal
Weight395g(0.87lb)
OSD menu language11 Languages
English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish
Certification
EMCCE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part15 B)
SafetyCE-LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
IK10 (IEC 62262)
