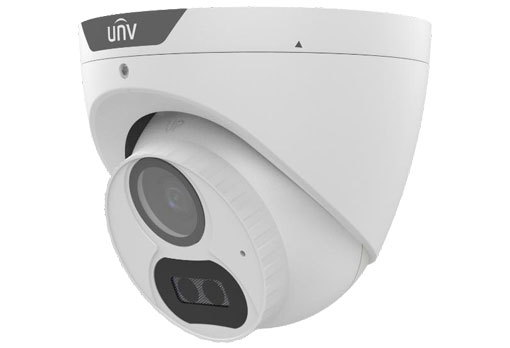

Uniview - UAC-T124-AF40LM - UNV 4MP IR Light Analog Turret 4.0mm
Part number:
UAC-T124-AF40LM
Price:

UNV 4MP IR Light Analog Turret 4.0mm



UAC-T124-AF28(40)LM is a 4MP LightHunter HD IR fixed turret analog camera with a high-performance 1/3-inch CMOS sensor. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. It supports IR-cut filter with auto-switch (ICR) and provides color images at daytime and black/white images at night. The camera also supports audio input and synchronous transmission of audio and video.



Features:

  • High quality imaging with 4MP resolution
  • TVI/AHD/CVI/CVBS
  • Supports IR-cut filter with auto-switch (ICR)
  • LightHunter monitoring with high-sensitivity sensor
  • Supports 180° horizontal flip, 180° vertical flip
  • OSD configuration menu, easy to operate
  • IP67 waterproof and dustproof design, high reliability
  • OSD configuration menu in 11 languages
  • Built-in microphone for high quality audio transmission via coaxial cables
  • 3-Axis
ModelUAC-T124-AF40LM
Sensor
Pixel4MP
Size1/3"
Minimum illumination0.005 lux (F1.6, AGC ON)
0 lux (IR on)
Lens
Lens4.0mm
Lens mountM12
Angle of viewH: 81.1°  V: 41.0°  D: 94.4°
Illuminator
IlluminatorTwo IR illuminators
Illumination distance40m
Lifetime≥60,000 hours
Video
Resolution4MP: 2560(H) × 1440(V)
1080P: 1920(H)×1080(V)
Frame rateTVI/AHD/CVI: 4MP@25fps (default), 4MP@30fps,1080P@25fps, 1080P@30fps
CVBS: PAL, NTSC
Shutter timePAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s
Exposure modeFour modes: Global (default), BLC, HLC, DWDR
Day/NightThree modes: Auto (default), Day, Night
Digital noise reduction2D
White balanceTwo modes: Auto (default), Manual
WDRDWDR
Smart IRSupport
FlipSupports 180° horizontal flip, 180° vertical flip
Audio
MicrophoneBuilt-in Mic
Camera audioTVI: 4MP@25fps, 4MP@30fps,1080P@25fps, 1080P@30fps
CVI: 4MP@25fps, 4MP@30fps
Interface
Power5.5mm power interface
Video outputBNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature-30°C to 60°C (-22°F to 140°F)
Humidity≤95% (RH, non-condensing)
Surge protection4kV
Ingress protectionIP67
General
PowerDC 12V (±25%), with reverse polarity protection, Max 3.5W
MountSurface mount (default), optional backbox, wall mount bracket
DimensionsΦ111mm*98mm (diameter*height)
MaterialMetal+Plastic
Weight334g (0.74lb)
CertificationCE, FCC, UL
Name
Description
Size
Downloads
File
Datasheet
0.8mb
