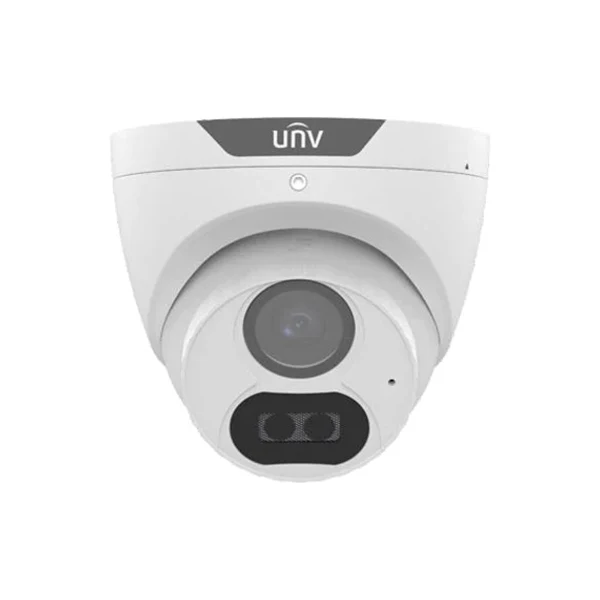

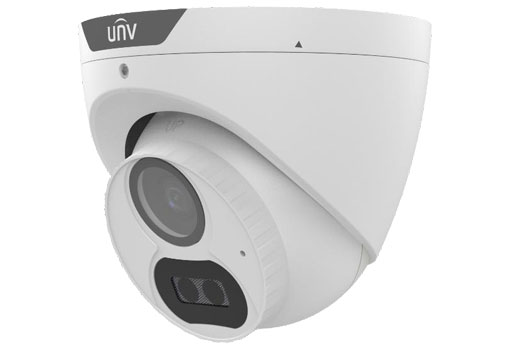

Uniview - UAC-T125-AF40M - UNV 5MP IR Light Analog Turret 4.0mm
UNV 5MP IR Light Analog Turret 4.0mm
UAC-T125-AF28(40)M is a 5MP LightHunter HD IR fixed turret analog camera with a high-performance 1/2.7-inch CMOS sensor. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. It supports IR-cut filter with auto-switch (ICR) and provides color images at daytime and black/white images at night. The camera also supports audio input and synchronous transmission of audio and video.
Features:
- High quality imaging with 5MP resolution
- TVI/AHD/CVI/CVBS
- Supports IR-cut filter with auto-switch (ICR)
- LightHunter monitoring with high-sensitivity sensor
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high quality audio transmission via coaxial cables
- 3-Axis
Model | UAC-T125-AF28M | UAC-T125-AF40M |
| Sensor | ||
| Pixel | 5MP | |
| Size | 1/2.7" | |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR ON) | |
| Lens | ||
| Lens | 2.8mm | 4.0mm |
| Lens mount | M12 | |
| Angle of view | H: 109.1° V: 60.9° D: 126.7° | H: 91.3° V: 46.1° D: 109.6° |
| Illuminator | ||
| Illuminator | Two IR illuminators | |
| Illumination distance | 40m | |
| Lifetime | ≥60,000 hours | |
| Video | ||
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) | |
| Frame rate | TVI: NTSC: 5MP@20fps(default), 5MP@12.5fps, 4MP@30fps, 1080P@30fps PAL: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 1080P@25fps AHD: NTSC: 5MP@20fps, 4MP@30fps, 1080P@30fps PAL: 5MP@20fps, 4MP@25fps, 1080P@25fps CVI: NTSC: 5MP@25fps, 4MP@30fps, 1080P@30fps PAL: 5MP@25fps, 4MP@25fps, 1080P@25fps CVBS: NTSC：1200*480 PAL：1200*576 | |
| Shutter time | NTSC: 1/30s–1/50000s PAL: 1/25s-1/50000s | |
| Image | ||
| Exposure mode | Four modes: Global (default), BLC, HLC, DWDR | |
| Day/Night | Three modes: Auto (default), Day, Night | |
| Digital noise reduction | 2D | |
| White balance | Two modes: Auto (default), Manual | |
| WDR | DWDR | |
| Smart IR | Support | |
| Flip | Supports 180° horizontal flip, 180° vertical flip | |
| Audio | ||
| Microphone | Built-in Mic | |
| Camera audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps | |
| Interface | ||
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating environment | |
| Temperature | -30°C to 60°C (-22°F to 140°F) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge protection | 4kV |
| Ingress protection | IP67 |
| General | |
| Power | DC 12V (±25%), with reverse polarity protection, Max 3.4W |
| Mount | Surface mount (default), optional backbox, wall mount bracket |
| Dimensions | Φ111mm*98mm (diameter*height) |
| Material | Metal |
| Weight | 334g (0.74lb) |
| Certification | CE, FCC, UL |
