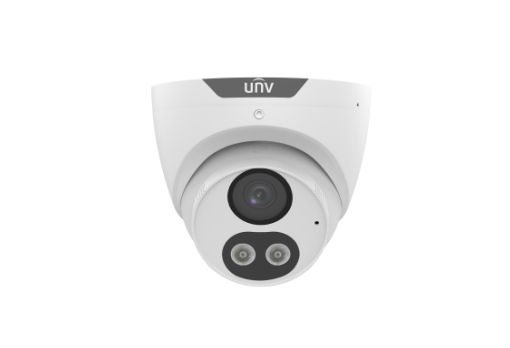

Uniview - UAC-T142-AF28M-DL - UNV 2MP Dual Light Analog Turret 2.8mm
Part number:
UAC-T142-AF28M-DL
Price:

UAC-T142-AF28M-DL is a 2MP ColorHunter with smart dual light turret analog camera with a high-performance 1/3-inch CMOS sensor and 3D noise reduction technology. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability an d diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. The camera also supports audio input and synchro nous transmission of audio and video. With UNV XVR, our ColorHunter cameras equipped with Smart Dual Light can intelligentl y switch between IR and white light when detecting a target or not, offering flexible lighting options and enhancing security.



Features:

  • High quality imaging with 2MP resolution
  • TVI/AHD/CVI/CVBS
  • Supports IR cut filter with auto switch (ICR)
  • Smart Dual Light
  • 3D noise reduction technology delivers clean and sharp images
  • Supports 180° horizontal flip, 180° vertical flip
  • OSD configuration menu, easy to operate
  • IP67 waterproof and dustproof design, high reliability
  • OSD configuration menu in 11 languages
  • Built in microphone for high quality audio transmission via coaxial cables
SensorDescription
Pixel2MP
Sensor Size1/3"
Min. Illumination0.003 lux (F1.6, AGC ON)
0 lux (Illuminator ON)
LensDescription
FocusUAC-T142-AF28M-DL:2.8mm
Lens MountM12
Angle of View (H)UAC-T142-AF28M-DL:100.9°
Angle of View (V)UAC-T142-AF28M-DL:56.5°
Angle of View (D)UAC-T142-AF28M-DL:121.8°
IlluminatorDescription
Illuminator NumberTwo IR illuminators; Two white‑light illuminators
Illumination DistanceIR: 40m (131.23 ft)
White light: 40m (131.23ft)
Lifetime≥60000 hours
VideoDescription
Resolution1080P: 1920(H)×1080(V)
720P: 1280(H) ×720(V)
Frame RateTVI/AHD/CVI: 1080P@25fps (default TVI), 1080P@30fps; 720P@25fps, 720P@30fps
CVBS: PAL, NTSC
Shutter TimePAL: 1/25s‑1/50000s,
NTSC: 1/30s‑1/50000s
ImageDescription
Exposure ModeFour modes: Global(default),BLC,HLC,DWDR
Day/NightThree modes: Auto (default), Day, Night
Digital Noise Reduction2D/3D
White BalanceTwo modes: Auto (default),Manual
WDRDWDR
Light ModeDual light (default) , Infared, White light
FlipSupports 180°horizontal flip, 180°vertical flip
Digital DefogN/A
AudioDescription
Built-in MicSupport
Camera AudioTVI: 1080P@25fps, 1080P@30fps
CVI: 1080P@25fps, 1080P@30fps
InterfaceDescription
Power Interface5.5mm Power Interface
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Operating EnvironmentDescription
Temperature‑30℃ to 60℃(‑22°F to 140°F)
Humidity≤95% RH (non‑condensing)
Surge Protection4kV for power&4kV for video output interfaces
GeneralDescription
PowerDC12V±25%
Power ConsumptionMAX 3.6W
MountCorner Mount&Pole Mount&Wall Mount&Pendant Mount
DimensionsΦ117.8mm*96.5mm (diameter*height)
MaterialMetal
Weight239g(0.53lb)
OSD Menu Language11 Languages English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish
CertificationDescription
EMCCE‑EMC (EN 55032,EN 61000‑3‑3,EN IEC 61000‑3‑2,EN 55035)FCC (FCC 47 CFR part15 B)
SafetyCE‑LVD (EN 62368‑1)
EnvironmentCE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
