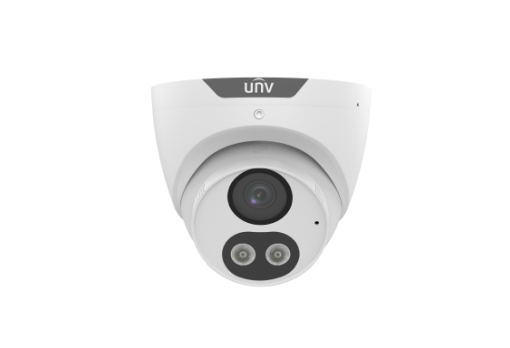

UNV 5MP Dual Light Analog Turret 2.8mm
UAC-T145-AF28M-DL is a 5MP ColorHunter with smart dual light turret analog camera with a high-performance 1/2.7-inch CMO S sensor. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel H D video transmission without time delay. The camera also supports audio input and synchronous transmission of audio and vide o. With UNV XVR, our ColorHunter cameras equipped with Smart Dual Light can intelligently switch between IR and white light when detecting a target or not, offering flexible lighting options and enhancing security.
Features:
- High quality imaging with 5MP resolution
- TVI/AHD/CVI/CVBS
- Supports IR cut filter with auto switch (ICR)
- Smart Dual Light
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built in microphone for high quality audio transmission via coaxial cables
| Specification | |
| Sensor | |
| Pixel | 5MP |
| Sensor Size | 1/2.7" |
| Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (Illuminator ON) |
| Lens | |
| Focus | UAC-T145-AF28M-DL:2.8mm |
| Lens Mount | M12 |
| Angle of View (H) | UAC-T145-AF28M-DL:110.0° |
| Angle of View (V) | UAC-T145-AF28M-DL:57.0° |
| Angle of View (D) | UAC-T145-AF28M-DL:130.0° |
| Illuminator | |
| Illuminator Number | Two IR illuminators; Two white‑light illuminators |
| Illumination Distance | IR: 40m (131.23 ft) White light: 40m (131.23ft) |
| Lifetime | ≥60000 hours |
| Video | |
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) |
| Frame Rate | TVI: 5MP@20fps (default TVI), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25s‑1/50000s， NTSC: 1/30s‑1/50000s |
| Image | |
| Exposure Mode | Four modes: Global(default),BLC,HLC,DWDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Digital Noise Reduction | 2D |
| White Balance | Two modes: Auto (default),Manual |
| WDR | DWDR |
| Light Mode | Dual light (default) , Infared, White light |
| Flip | Supports 180°horizontal flip, 180°vertical flip |
| Audio | |
| Built-in Mic | Support |
| Camera Audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps |
| Interface | |
| Power Interface | 5.5mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | ‑30℃ to 60℃(‑22°F to 140°F) |
| Humidity | ≤95% RH (non‑condensing) |
| Surge Protection | 4kV for power&4kV for video output interfaces |
| General | |
| Power | DC12V±25% |
| Power Consumption | MAX 3.5W |
| Mount | Corner Mount&Pole Mount&Wall Mount&Pendant Mount |
| Dimensions | Φ117.8mm*96.5mm (diameter*height) |
| Material | Metal |
| Weight | 239g(0.53lb) |
| OSD Menu Language | 11 Languages English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish |
| Certification | |
| EMC | CE‑EMC (EN 55032,EN 61000‑3‑3,EN IEC 61000‑3‑2,EN 55035)FCC (FCC 47 CFR part15 B) |
| Safety | CE‑LVD (EN 62368‑1) |
| Environment | CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
