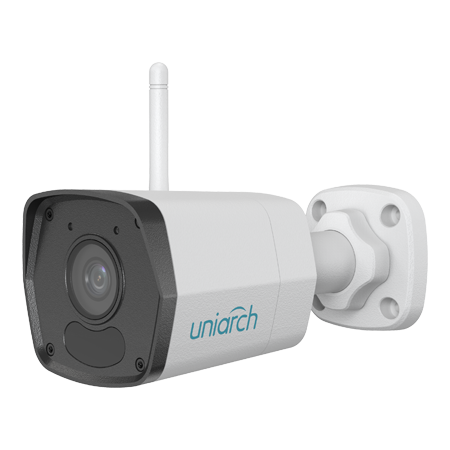

Uniview - Uho-B1R-M2F4 - Uniarch 2MP Outdoor IR Wi-Fi Bullet Camera(4mm)
Part number:
Uho-B1R-M2F4
Price:
2MP HD Outdoor Bullet Wi-Fi Camera
Features:
- High quality image with 2MP, 1/2.9"CMOS sensor
- 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 128 G Micro SD card
- IP67 protection
- 3-Axis
| Uho-B1R-M2F3 | Uho-B1R-M2F4 | ||||||||
| Camera | |||||||||
| Sensor | 1/2.9", 2.0 megapixel, progressive scan, CMOS | ||||||||
| Minimum Illumination | Colour: 0.01 lux (F2.1 AGC ON) 0 lux with IR on | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | ||||||
| S/N | >52dB | ||||||||
| WDR | DWDR | ||||||||
| Lens | |||||||||
| Lens Type | 2.8mm@F2.1 | 4.0mm@F2.1 | |||||||
| Iris | Fixed | ||||||||
| Field of View (H) | 101.1° | 83.7° | |||||||
| Field of View (V) | 55.0° | 44.6° | |||||||
| Field of View (D) | 111.0° | 89.1° | |||||||
| DORI | |||||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||||
| 2.8mm | 45.0 | 18.0 | 9.0 | 4.5 | |||||
| 4.0mm | 64.3 | 25.7 | 12.9 | 6.4 | |||||
| Illuminator | |||||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||||||
| Video Bit Rate | 128 Kbps~6 Mbps | ||||||||
| U-code | Support | ||||||||
| OSD | Up to 4 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Video stream | Dual streams | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180° | ||||||||
| Dewarping | N/A | ||||||||
| HLC | Support | ||||||||
| BLC | Support | ||||||||
| Defog | Digital Defog | ||||||||
| Events | |||||||||
| Basic Detection | Human body detection, Motion detection, Audio detection, Tampering alarm | ||||||||
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | ||||||||
| Audio | |||||||||
| Audio Compression | G.711U, G.711A | ||||||||
| Audio Bitrate | 64 Kbps | ||||||||
| Two-way Audio | N/A | ||||||||
| Suppression | Support | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 128GB | ||||||||
| Network Storage | ANR,NAS(NFS) | ||||||||
| Network | |||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP | ||||||||
| Compatible Integration | API , SDK | ||||||||
| User/Host | Up to 6 users. 2 user levels: administrator and common user | ||||||||
| Client | Uniarch Client Uniarch APP | ||||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||||
| Wi-Fi | |||||||||
| Wireless Standards | IEEE802.11b/g/n | ||||||||
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | ||||||||
| Channel Bandwidth | 20 MHz Support | ||||||||
| Modulation Mode | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT | ||||||||
| Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK | ||||||||
| Transmit Power | 802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @ 54Mbps 802.11n: 12.5±1.5dBm @150Mbps | ||||||||
| Receive Sensitivity | 802.11b: -90dBm @11Mbps (Typical) 802.11g: -75dBm @54Mbps (Typical) 802.11n: -74dBm @150Mbps (Typical) | ||||||||
| Transmission Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps | ||||||||
| Interface | |||||||||
| Audio I/O | N/A | ||||||||
| Alarm I/O | N/A | ||||||||
| Built-in Mic | Support | ||||||||
| Built-in Speaker | N/A | ||||||||
| WIFI | Support | ||||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||||
| Video Output | N/A | ||||||||
| Certifications | |||||||||
| EMC | CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) | ||||||||
| RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) | ||||||||
| Safety | CE LVD (EN 62368-1) | ||||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||||||
| Protection | IP67 (IEC 60529) | ||||||||
| General | |||||||||
| Power | DC 12V±25% | ||||||||
| Power consumption: Max 3.6W | |||||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||||
| Dimensions (L x W x H) | 168 × 88 ×72 mm (6.6” × 3.5” × 2.8”) | ||||||||
| Weight | 0.28 kg (0.62 lb) | ||||||||
| Material | Metal + Plastic | ||||||||
| Working Environment | -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) | ||||||||
| Storage Environment | -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) | ||||||||
| Surge Protection | 4KV | ||||||||
| Reset Button | Support | ||||||||
| LED indicator | 1, red/green | ||||||||
